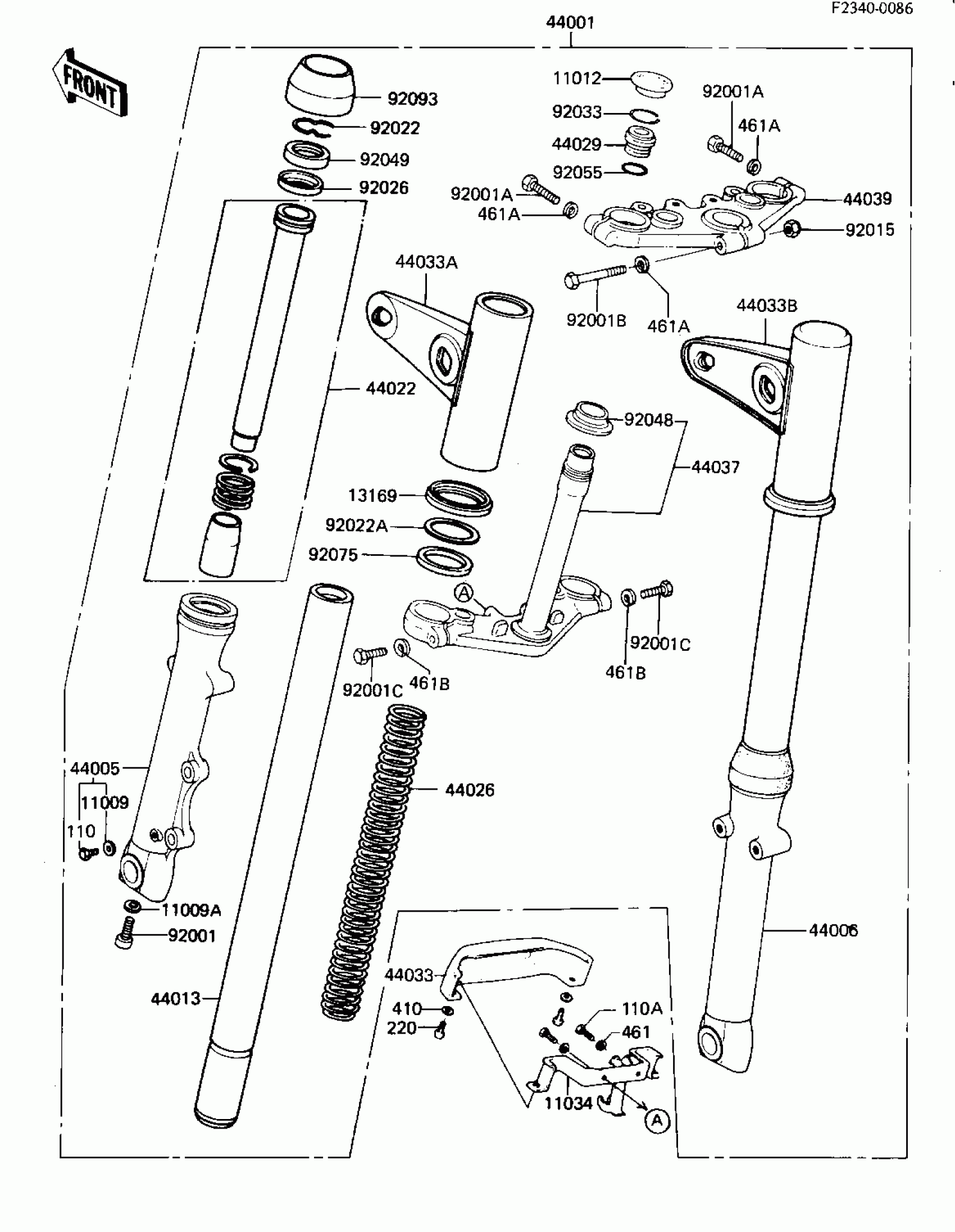

Kawasaki KZ440-G1 FRONT FORK Diagram

#

Description
Price

11009

GASKET,DRAIN PLUG

44045-047

$7.12

11009A

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

11012

CAP,RUBBER,FORK TOP

11012-1021

Unavailable

11034

BRACKET,FORK COVER

11034-1758

Unavailable

13169

GUIDE,FORK COVER

44064-027

$20.34

44001

FORK-FRONT

44001-1332

$1,415.13

44005

TUBE,LH,FORK OUTER

44005-1080

$181.06

44006

TUBE,RH,FORK OUTER

44006-1080

$186.25

44013

PIPE-FORK INNER

44013-1075

$296.44

44022

CYLINDER-FORK

44022-1027

$104.10

44026

SPRING-FRONT FORK

44026-1129

$49.31

44029

SEAT-FORK SPRING

44029-022

$11.12

44033

COVER,FORK

44033-1042

Unavailable

44033A

COVER,FORK,LH

44033-1082

$106.49

44033B

COVER-FORK,RH

44033-1083

$119.02

44037

HOLDER-FORK UNDER

44037-1014

$356.22

44039

HEAD,STEERING STEM

44039-1023

$193.56

92001

BOLT,FORK CYLINDER

44041-078

$9.56

92001A

BOLT,8X40

92001-1063

$7.33

92001B

BOLT,HEX HEAD,8X55

92001-1064

Unavailable

92001C

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

92015

NUT,LOCK,8MM

92015-1124

$4.10

92022

RING,OIL SEAL STOPPER

44043-057

$4.88

92022A

WASHER,FORK COVER

92022-297

$7.85

92026

SPACER,FORK

92026-1005

Unavailable

92033

RING-SNAP

44044-023

$4.80

92048

RACE,STEERING STEM BEARING

92047-006

$12.39

92049

SEAL-OIL,FORK

92049-1077

$16.80

92055

RING-O

44046-025

$5.71

92075

DAMPER RUBBER,FK COV

92075-240

Unavailable

92093

SEAL,FORK

92093-1063

$30.66

110

BOLT HEX HEAD 6X8

110B0608

Unavailable

110A

BOLT-UPSET,6X12

112G0612

Unavailable

220

SCREW PAN HEAD 4X10

220B0410

Unavailable

410

WASHER PLAIN 4MM

410B0400

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable

461B

WASHER SPRING 10MM

461F1000

Unavailable
