1982 Kawasaki KZ440-G1 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1982 Kawasaki KZ440-G1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

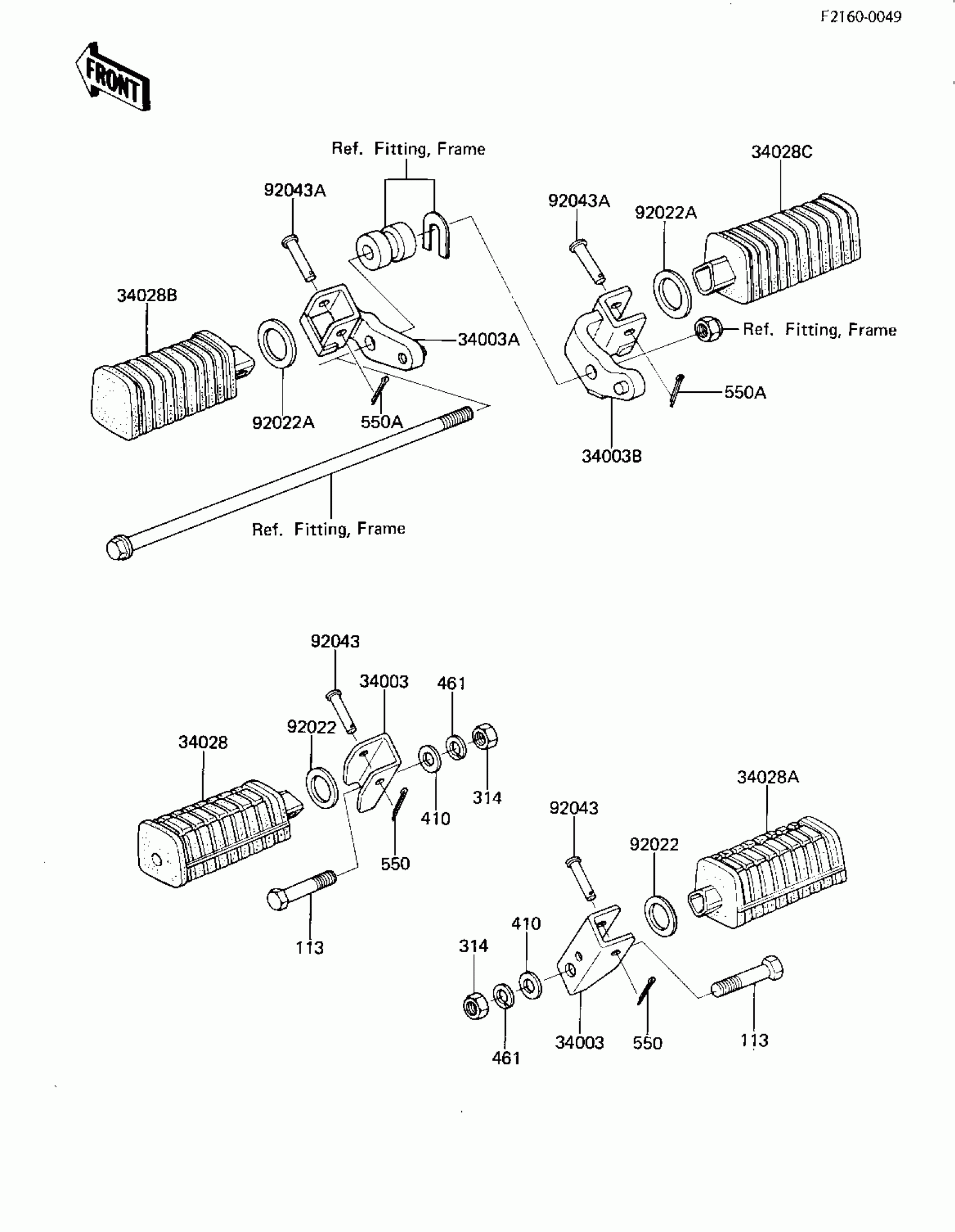

1982 Kawasaki KZ440-G1 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

34003A

HOLDER-STEP,FR,LH

34003-1126

1
Out of stock

34003B

HOLDER-STEP,FR,RH

34003-1127

1
Out of stock

34028

STEP,RR,LH

34028-1009

1
Out of stock

34028A

STEP,RR,RH

34028-1010

1
Out of stock

34028B

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

34028C

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

92022

WASHER,25X36X2.3

92022-250

1
Out of stock

92022A

WASHER,25X36X2.3

92022-250

1
Out of stock

92043

PIN,6X28

92043-1464

1
Out of stock

92043A

PIN,8X35.5

92043-115

1
Out of stock

113

BOLT-SMALL-FINE,10X45

113G1045

1
Out of stock

314

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

410

WASHER PLAIN 10MM

410B1000

1
Out of stock

461

WASHER SPRING 10MM

461F1000

1
Out of stock

550

PIN-COTTER,2.0X12

550D2012

1
Out of stock

550A

PIN-COTTER,2.5X15

550D2515

1
Out of stock
