1982 Kawasaki KZ440-G1 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1982 Kawasaki KZ440-G1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

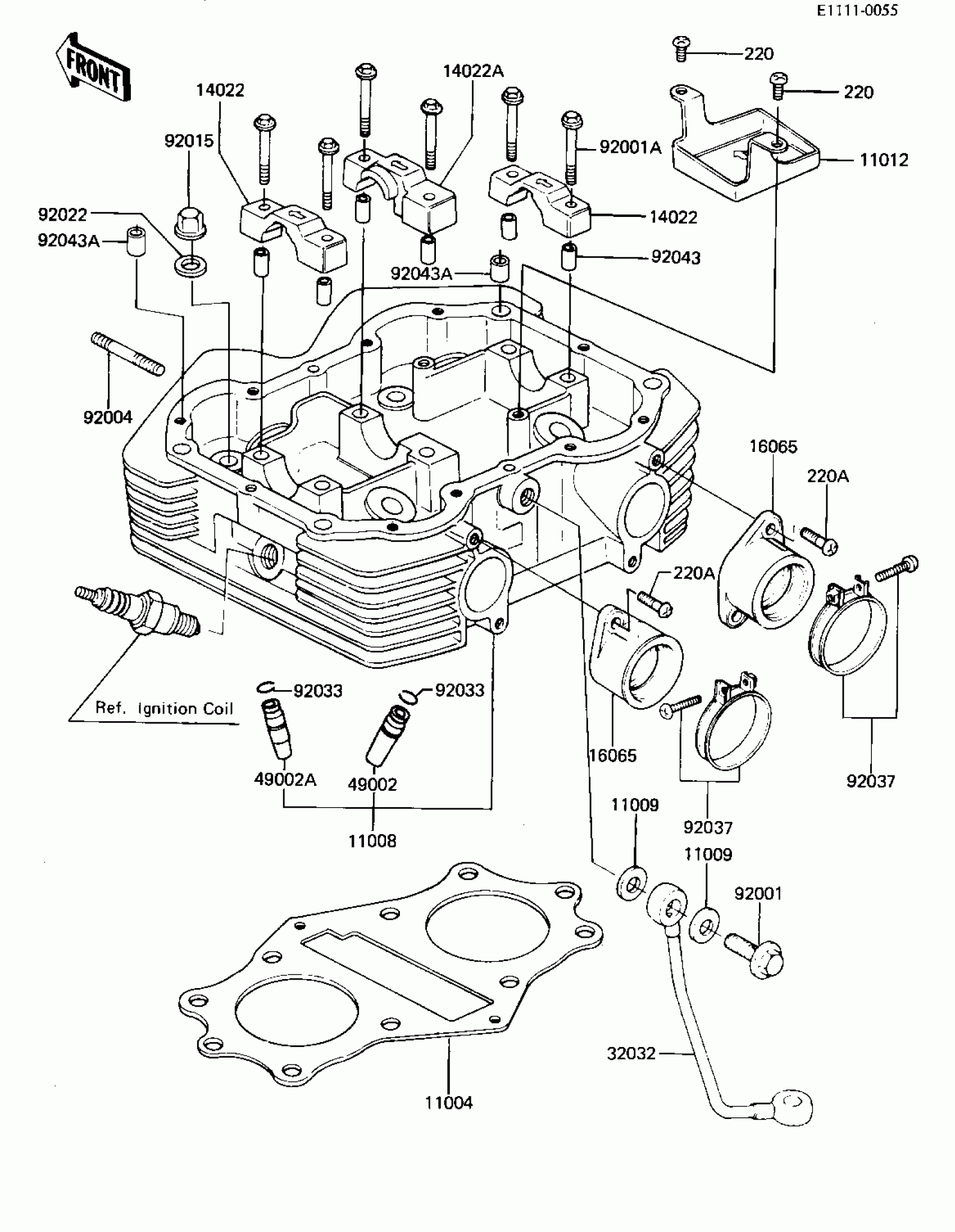

1982 Kawasaki KZ440-G1 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET,CYLINDER HEAD

11004-1020

1
Out of stock

11008

HEAD-COMP-CYLINDER,SI

11008-1043

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

11012

CAP,CYLINDER HEAD OIL

11012-1027

1
Out of stock

14022

CAP,BRG,HEAD,L.H&R.H

14022-1002

1
Out of stock

14022A

CAP,BRG.HEAD,CENTER

14022-1003

1
Out of stock

16065

HOLDER,CARBURETOR

16065-1027

1

$60.60

In stock

32032

PIPE,OIL

32032-1084

1
Out of stock

49002

GUIDE-VALVE,INTAKE

12013-009

1

$24.29

In stock

49002A

GUIDE-VALVE,EXHAUST

49002-1002

1
Out of stock

92001

BOLT,BANJO,10X25

92001-1017

1
Out of stock

92001A

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92004

STUD,6X46

92004-049

1
Out of stock

92015

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

92022

WASHER,10.5X22X1.6

92022-1005

1

$3.58

In stock

92033

1

$0.53

In stock

92037

CLAMP,53M/M

92037-201

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043A

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

220

SCREW PAN HEAD 6X10

220B0610

1
Out of stock

220A

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock
