1979 Kawasaki KZ400-H1 Front Wheel/hub Diagram

← All diagrams

Find the part on the Front Wheel/hub diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

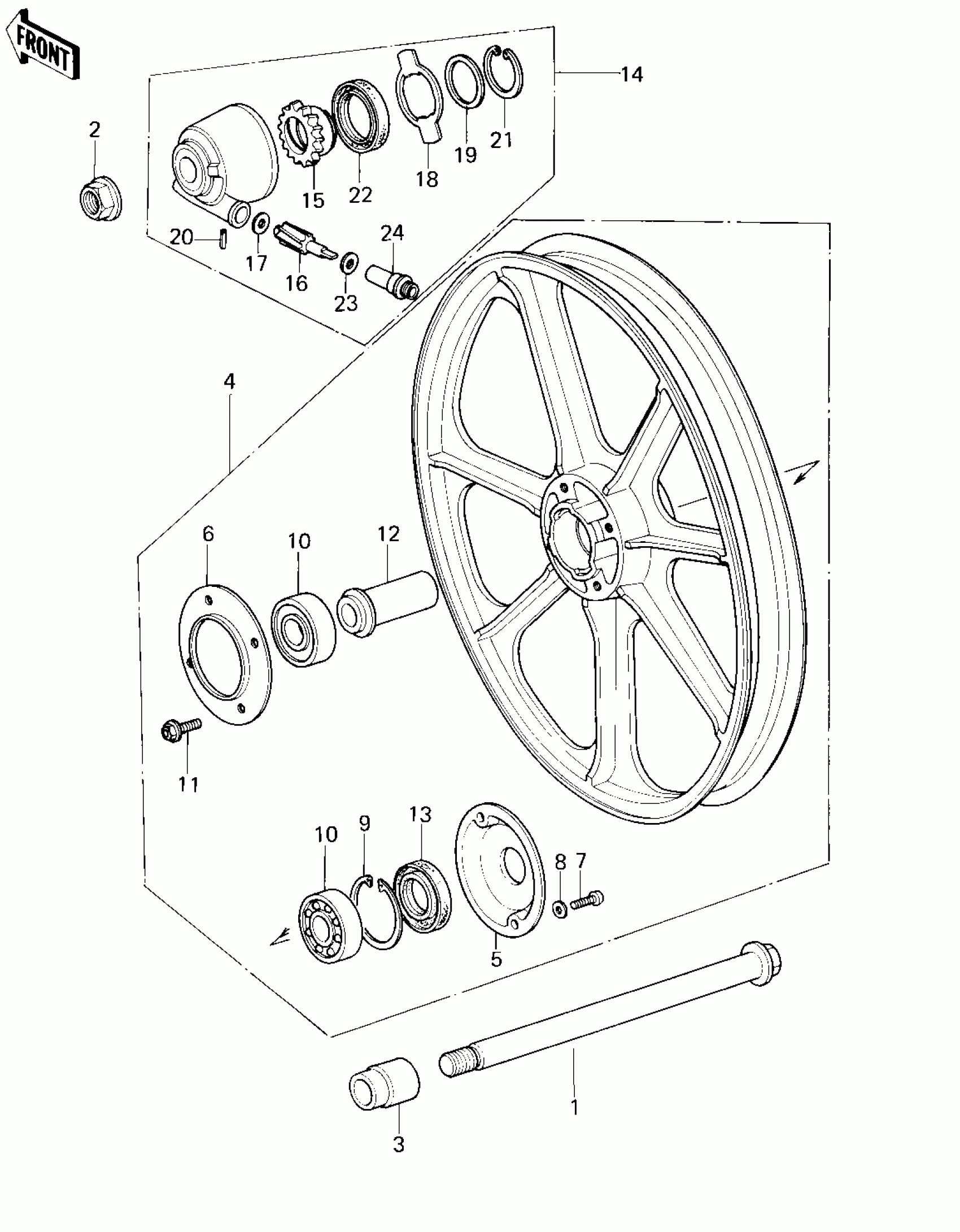

1979 Kawasaki KZ400-H1 Front Wheel/hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE,FR,L=230

41068-1099

1
Out of stock

2

NUT,14MM

92015-1407

1

$7.86

In stock

3

COLLAR,FRONT AXLE

92027-1085

1

$34.15

In stock

4

1

$751.36

In stock

5

COVER,DUST,RH

14025-1042

1
Out of stock

6

COVER,DUST,L.H.

14025-1043

1
Out of stock

7

SCREW-PAN-CROS

220B0514

1
Out of stock

8

WASHER-PLAIN,5MM

411B0500

1
Out of stock

9

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

10

1

$25.71

In stock

11

BOLT,FLANGED,8X28

92001-1095

1

$5.71

In stock

12

COLLAR,FRONT WHEEL

92027-1171

1
Out of stock

13

OIL SEAL,WTC22427

92052-011

1
Out of stock

14

GEAR BOX ASSY,METER

41078-1005

1
Out of stock

15

1

$19.44

In stock

16

GEAR-METER SCREW,9T

41060-1016

1
Out of stock

17

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

18

RECEIVER,SPEED GEAR

41064-1005

1

$10.68

In stock

19

WASHER THRUST

41065-006

1

$2.31

In stock

20

PIN,SPRING

41082-001

1

$3.53

In stock

21

1

$3.97

In stock

22

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

23

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

24

BUSHING-METER GEAR

92087-1002

1

$22.34

In stock
