1979 Kawasaki KZ400-H1 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

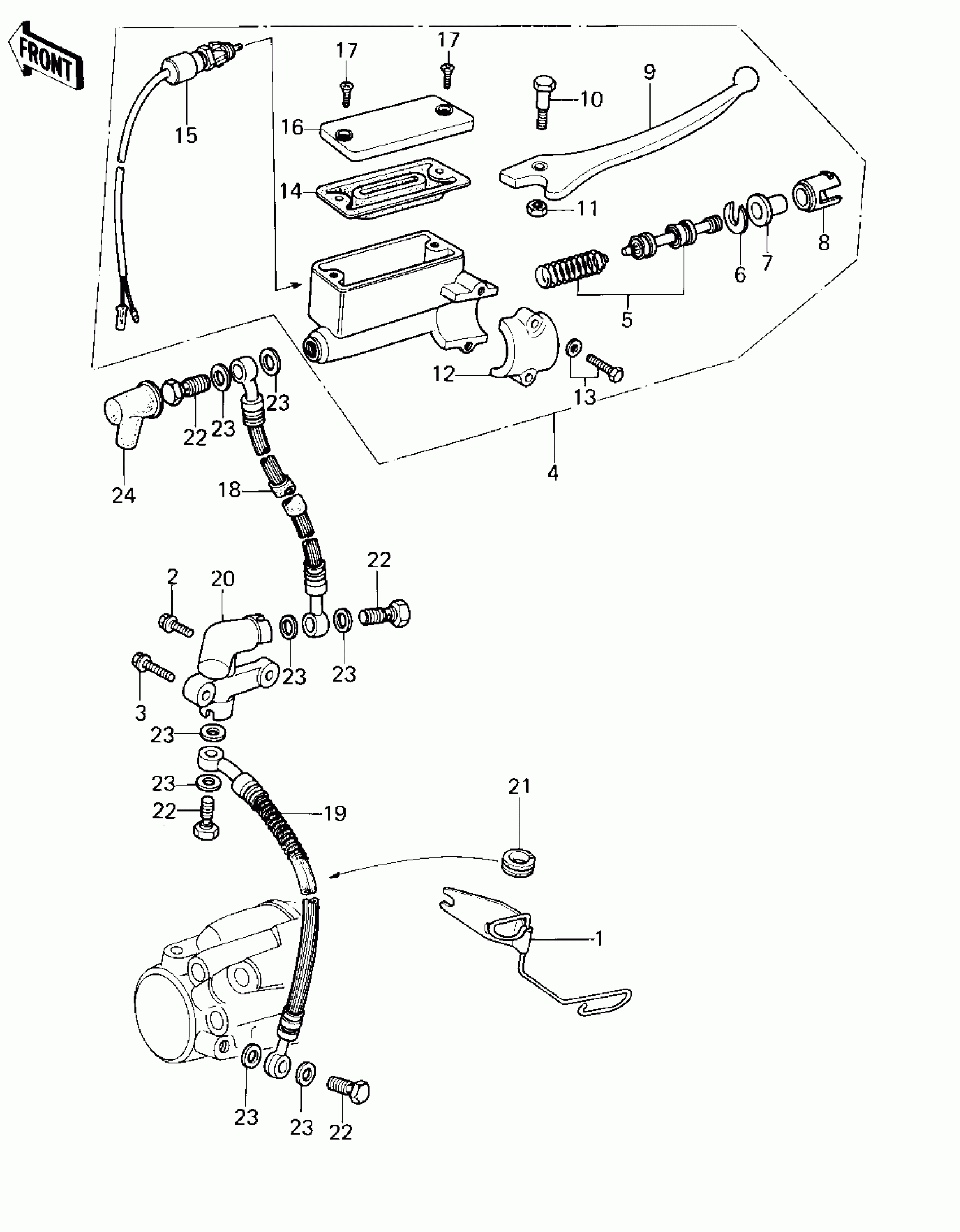

1979 Kawasaki KZ400-H1 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FRONT FENDER

11034-1573

1
Out of stock

2

BOLT,FLANGED,6X20

130B0620

1
Out of stock

3

BOLT,FLANGED,6X30

131B0630

1
Out of stock

4

CYLINDER-ASSY-MASTER

43015-1044

1
Out of stock

5

PISTON-COMP-BRAKE

43020-1026

1
Out of stock

6

STOPPER-BRAKE,PISTON

43022-1001

1
Out of stock

7

COVER-SEAL,BRAKE PISTON

49016-1010

1
Out of stock

8

LINER,PISTON

14008-1007

1
Out of stock

9

LEVER-GRIP,FRONT BRAKE

46092-1009

1
Out of stock

10

BOLT,FR BRAKE LEVER

92001-1056

1
Out of stock

11

NUT 6MM

312B0600

1
Out of stock

12

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

13

BOLT,6X25,W/WASHER

43033-003

1
Out of stock

14

DIAPHRAGM,MASTER CYLINDER

43028-1008

1
Out of stock

15

SWITCH,BRAKE

27010-1028

1
Out of stock

16

CAP-BRAKE

43026-1006

1
Out of stock

17

SCREW-CSK-CROS,5X12,BLACK

92001-1055

1
Out of stock

18

HOSE,BRAKE,M/C,L=390

43059-1037

1
Out of stock

19

HOSE,BRAKE,CALIPER

43059-1043

1
Out of stock

20

JOINT,BRAKE,TWO WAY

43061-1003

1
Out of stock

21

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

22

BOLT,OIL,L=23

92002-1888

1
Out of stock

23

WASHER,10.5X15X1.5

43067-001

1
Out of stock

24

BOOT,DUST

49006-1041

1
Out of stock
