1979 Kawasaki KZ400-H1 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

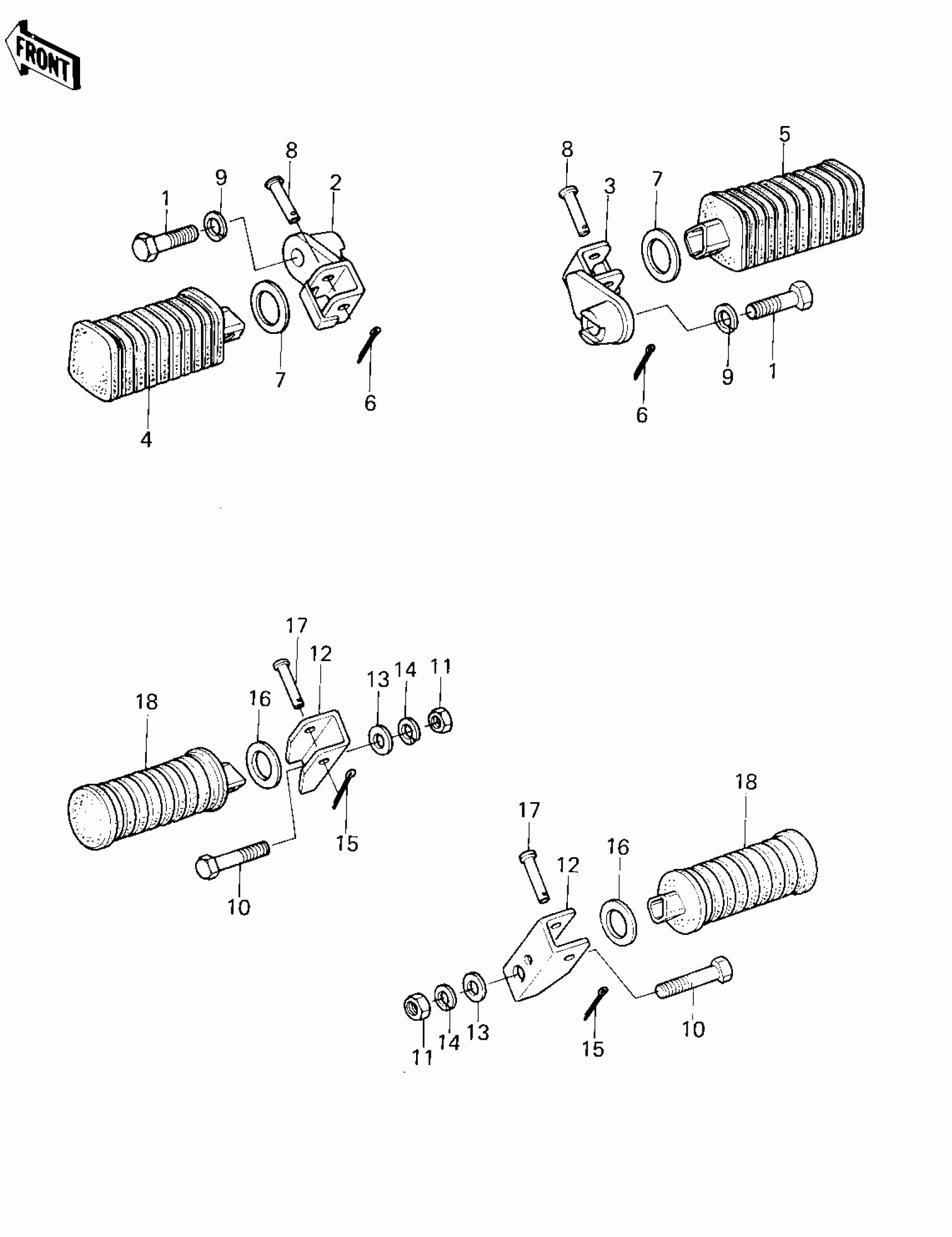

1979 Kawasaki KZ400-H1 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT HEX HEAD 12X40

113B1240

1
Out of stock

2

HOLDER,STEP,L.H.

34003-1041

1
Out of stock

3

HOLDER,STEP,R.H.

34003-1042

1
Out of stock

4

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

5

STEP-ASSY,FR,RH

34028-1018

1
Out of stock

6

PIN COTTER 2.5X16

550D2516

1
Out of stock

7

WASHER,25X36X2.3

92022-250

1
Out of stock

8

PIN,8X35.5

92043-115

1
Out of stock

9

WASHER-SPRING,12MM

461F1200

1
Out of stock

10

BOLT-SMALL-FINE,10X45

113G1045

1
Out of stock

11

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

12

HOLDER,REAR FOOTREST

34003-1025

1
Out of stock

13

WASHER PLAIN 10MM

410B1000

1
Out of stock

14

WASHER SPRING 10MM

461F1000

1
Out of stock

15

PIN-COTTER,2.0X12

550D2012

1
Out of stock

16

WASHER-PLAIN (OPT)

92022-199

1
Out of stock

17

PIN,6X28

92043-1464

1
Out of stock

18

RUBBER,FOOTREST

92076-027

1
Out of stock
