1979 Kawasaki KZ400-H1 Crankshaft/balancer Diagram

← All diagrams

Find the part on the Crankshaft/balancer diagram for your 1979 Kawasaki KZ400-H1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

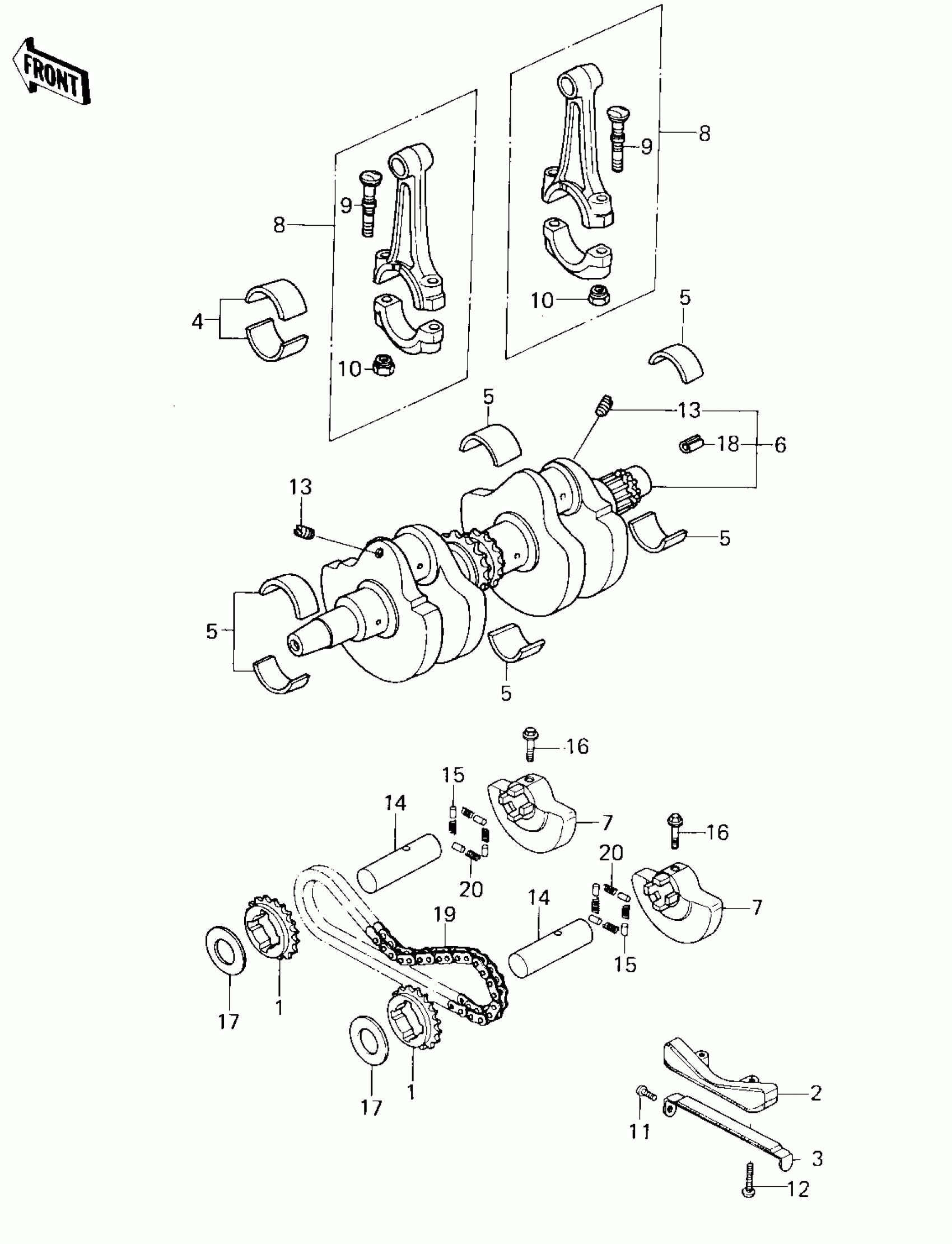

1979 Kawasaki KZ400-H1 Crankshaft/balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPROCKET,BALANCER,21T

12046-1003

1
Out of stock

2

GUIDE-CHAIN,BALANCER

12053-1051

1
Out of stock

3

GUIDE,BALANCER,CHAIN

12053-1003

1
Out of stock

4

METAL,CONNECT ROD BRG

13034-050

1
Out of stock

4

METAL,CONNECT ROD BRG

13034-051

1
Out of stock

4

METAL,CONNECT ROD BRG

13034-052

1
Out of stock

5

BUSHING,CRANKSHAFT,BROWN

92028-1102

1
Out of stock

6

CRANKSHAFT ASSY

13037-1034

1
Out of stock

7

BALANCER

13041-1002

1
Out of stock

8

CONNECTING ROD ASSY,J

13251-1008-JJ

1
Out of stock

8

CONNECTING ROD ASSY,J

13251-1008-JJ

1
Out of stock

9

BOLT,CONNECTING ROD,7MM

92001-1793

1
Out of stock

10

NUT,7MM

92016-060

1
Out of stock

11

SCREW-PAN-CROS,6X8

220B0608

1
Out of stock

12

SCREW PAN HEAD 6X30

220B0630

1
Out of stock

13

SCREW,SLOTTED,6X8

291H0608

1
Out of stock

14

SHAFT,IDLER,BALANCER

39115-1002

1
Out of stock

15

ROLLER,4X8

610A0408

1
Out of stock

16

BOLT,6X32

92003-229

1
Out of stock

17

SPACER,20,3X40X1

92026-1003

1
Out of stock

18

PIN-SPRING,4X8

555A0408

1
Out of stock

19

CHAIN,BALANCER

92057-1007

1
Out of stock

20

SPRING,BALANCER

92081-135

1
Out of stock
