1977 Kawasaki KZ400-D4 Crankcase Bolt & Stud Pattern ('76 -'77 Diagram

← All diagrams

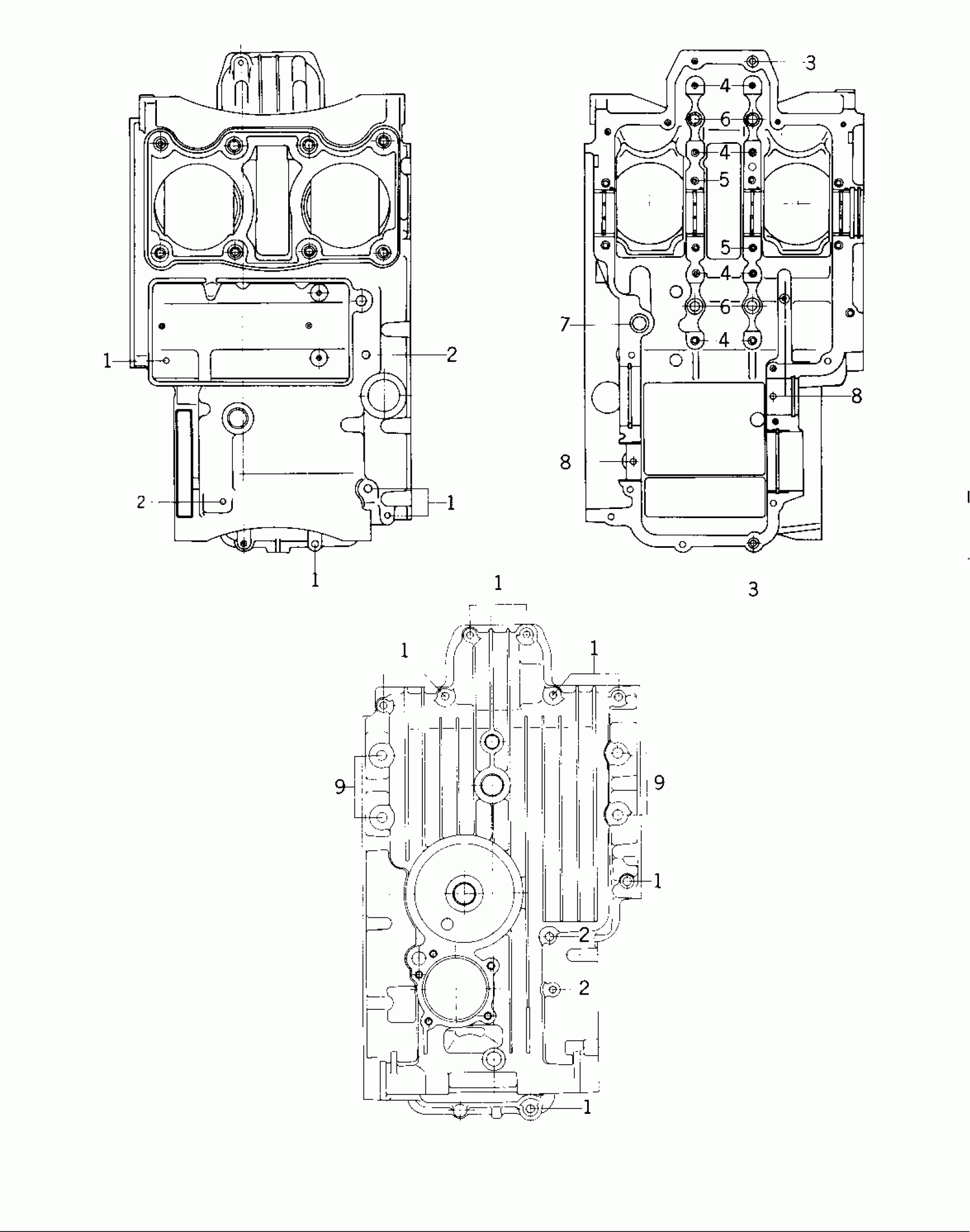

Find the part on the Crankcase Bolt & Stud Pattern ('76 -'77 diagram for your 1977 Kawasaki KZ400-D4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KZ400-D4 Crankcase Bolt & Stud Pattern ('76 -'77 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,HEX HEAD,6X54

92003-110

1
Out of stock

2

BOLT-FLANGED,6X95

130G0695

1
Out of stock

3

PIN,DOWEL,10X14

92043-1037

1
Out of stock

3

PIN,DOWEL,10X14

92043-1037

1
Out of stock

3

PIN,DOWEL,10X14

92043-1037

—
Out of stock

4

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

5

PIN,DOWEL,10X14

92043-1037

1
Out of stock

6

RING-O,OD=13

92055-074

1
Out of stock

7

RING-O,19.5MM

92055-077

1
Out of stock

8

PIN,DOWEL,6X16

92042-016

1
Out of stock

9

BOLT-FLANGED,8X95

130P0895

1
Out of stock
