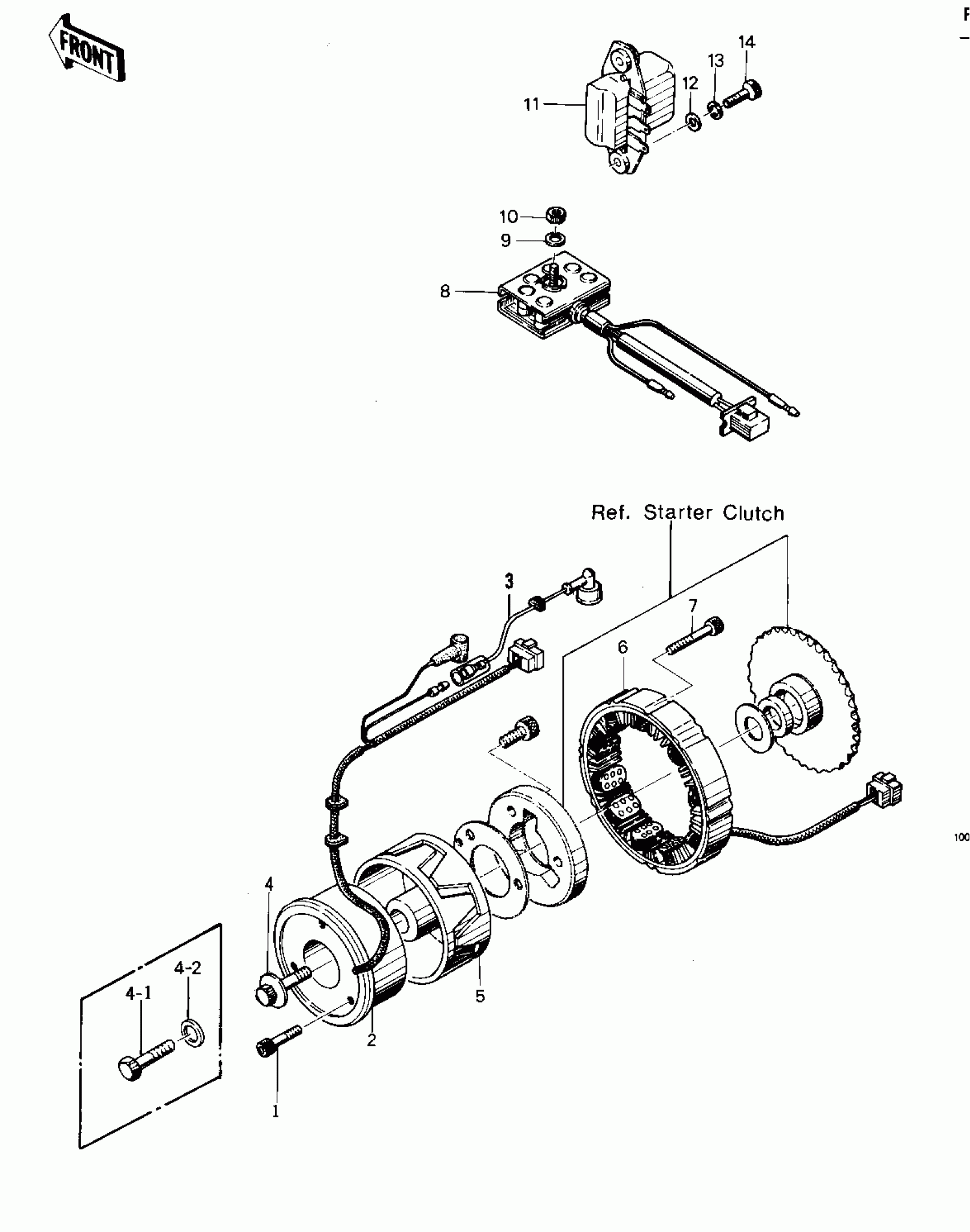

Kawasaki KZ400-D GENERATOR/REGULATOR/RECTIFIER ('74 -'75 Diagram

#

Description
Price

1

BOLT-SOCKET,6X18

120P0618

Unavailable

2

COIL FIELD

21077-002

$337.56

3

WIRE DYNAMO LEAD

26011-087

Unavailable

4

BOLT,10X40

92002-1303

Unavailable

4

BOLT,10X40

92002-1303

Unavailable

4-1

BOLT,10X40

92002-1303

Unavailable

4-2

WASHER-PLN,11X36X4

92022-307

Unavailable

5

ROTOR

21007-030

$453.06

6

STATOR ASSY

21076-019

$570.47

6

STATOR ASSY

21076-019

$570.47

7

BOLT,ALLEN,6X32

120Q0632

Unavailable

8

RECTIFIER

21061-030

$318.85

8

RECTIFIER

21061-030

$318.85

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

UNAVAILABLE IN PRICE BOOK

21066-018

Unavailable

12

WASHER,6.5X20X1.6

92022-125

$1.08

13

WASHER SPRING 6MM

461F0600

Unavailable

14

BOLT-UPSET,6X20

112G0620

Unavailable
