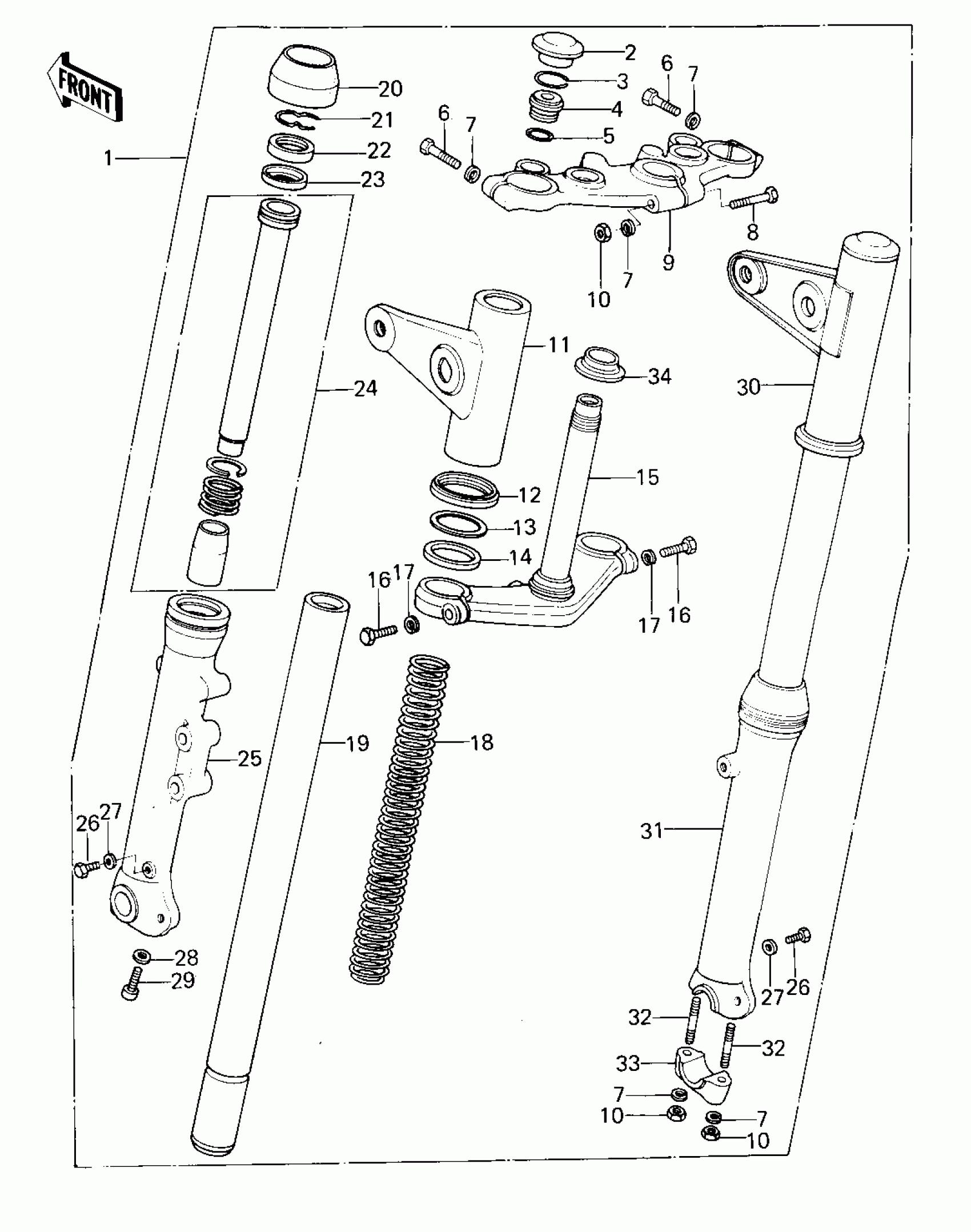

Kawasaki KZ400-C1 FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-1018

$933.99

2

CAP,RUBBER,FORK TOP

11012-1021

Unavailable

3

RING-SNAP

44044-023

$4.80

4

SEAT-FORK SPRING

44029-022

$11.12

5

RING-O

44046-025

$5.71

6

BOLT,8X40

92001-1063

$7.33

7

WASHER SPRING 8MM

461F0800

Unavailable

8

BOLT,HEX HEAD,8X55

92001-1064

Unavailable

9

HEAD,STEERING STEM

44039-1007

$189.76

10

NUT,LOCK,8MM

92017-013

$7.89

11

COVER,L.H,FORK

44033-1009

$76.71

12

GUIDE,FORK COVER

13169-1102

Unavailable

13

WASHER,FORK COVER

92022-297

$7.85

14

DAMPER RUBBER,FK COV

92075-240

Unavailable

15

STEM,STEERING

44037-1002

$441.94

16

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

17

WASHER SPRING 10MM

461F1000

Unavailable

18

SPRING,FORK INNER

44026-1011

Unavailable

19

TUBE,FORK INNER

44013-1010

$231.13

20

SEAL,FORK

92093-1063

$30.66

21

RING,OIL SEAL STOPPER

44043-057

$4.88

22

SEAL-OIL,FORK

92049-1077

$16.80

23

SPACER,FORK

92026-1005

Unavailable

24

CYLINDER-FORK

44022-1028

$99.31

25

TUBE,LH,FORK OUTER

44005-1011

$145.23

26

BOLT HEX HEAD 6X8

110B0608

Unavailable

26

GASKET,DRAIN PLUG

44045-047

$7.12

27

GASKET,DRAIN PLUG

44045-047

$7.12

28

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

29

BOLT,FORK CYLINDER

44041-078

$9.56

30

COVER,R.H,FORK

44033-1010

$80.10

32

TUBE,RH,FORK OUTER

44006-1011

$168.64

33

HOLDER,FORK AXLE

44063-1003

$13.56

34

RACE,STEERING STEM BEARING

92047-006

$12.39
