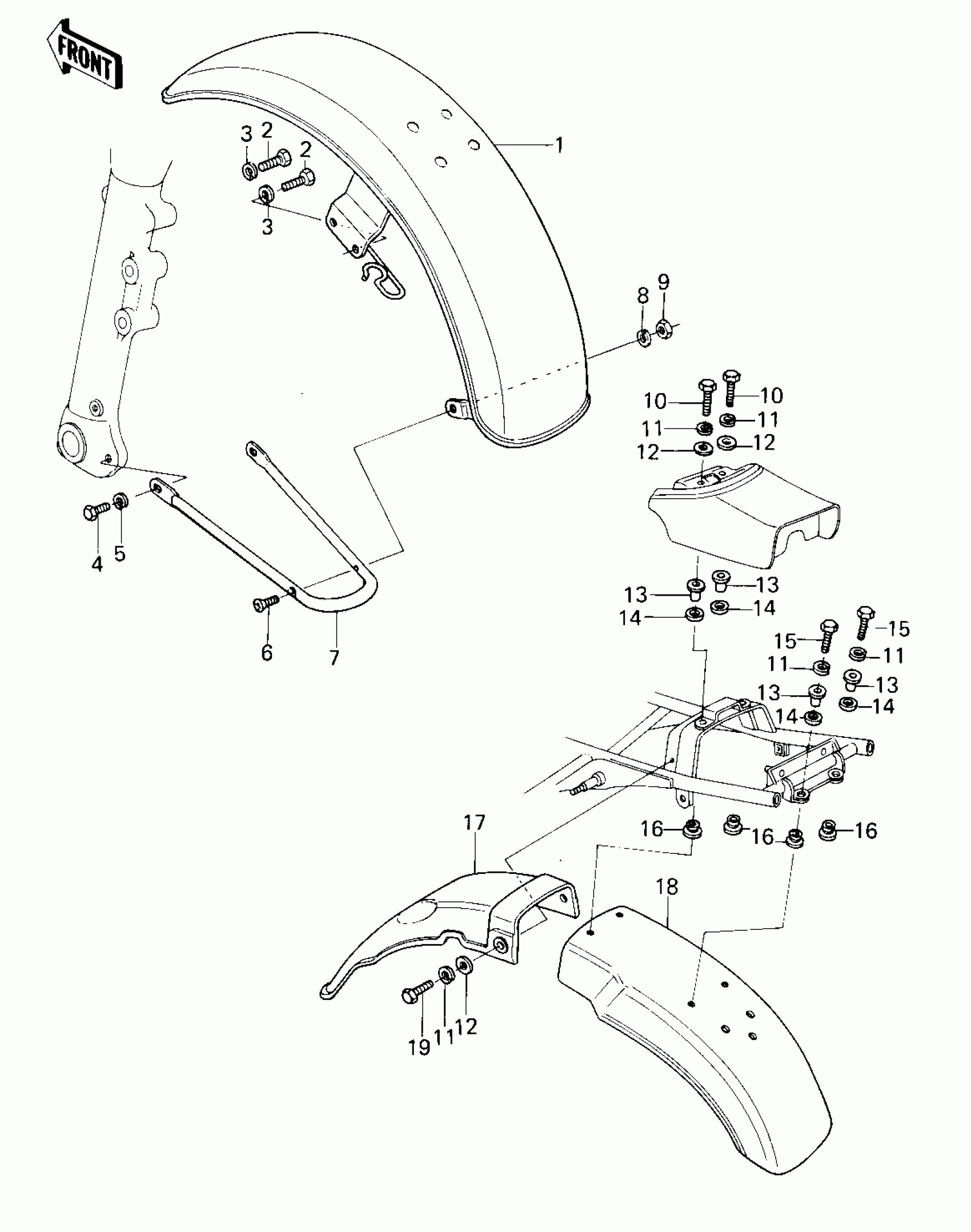

Kawasaki KZ400-C1 FENDERS Diagram

#

Description
Price

1

FENDER-FR,M.SILVER

35001-5008-1W

$119.84

2

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

BOLT-UPSET,6X12

112G0612

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

SCREW-CSK-RD-CROS,5X20

222E0520A

Unavailable

7

STAY,FENDER,M.SILVER

35011-1008-1W

$23.51

8

WASHER SPRING 5MM

461F0500

Unavailable

9

NUT-HEX

311B0500

$0.47

10

BOLT-UPSET

112G0630

Unavailable

11

WASHER SPRING 6MM

461F0600

Unavailable

12

WASHER,7X24X1.6

92022-228

$2.99

13

COLLAR,L=13.1

92027-251

Unavailable

14

DAMPER,FEMALE

92075-175

$3.35

15

BOLT-UPSET

112G0625

Unavailable

16

RUBBER,FENDER COVER

92075-174

$3.65

17

FENDER-RR

35022-138

$59.66

18

FENDER-RR,M.SILVER

35022-1006-1W

$111.53

19

BOLT-UPSET

112G0618

Unavailable
