1979 Kawasaki KZ400-B2 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1979 Kawasaki KZ400-B2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

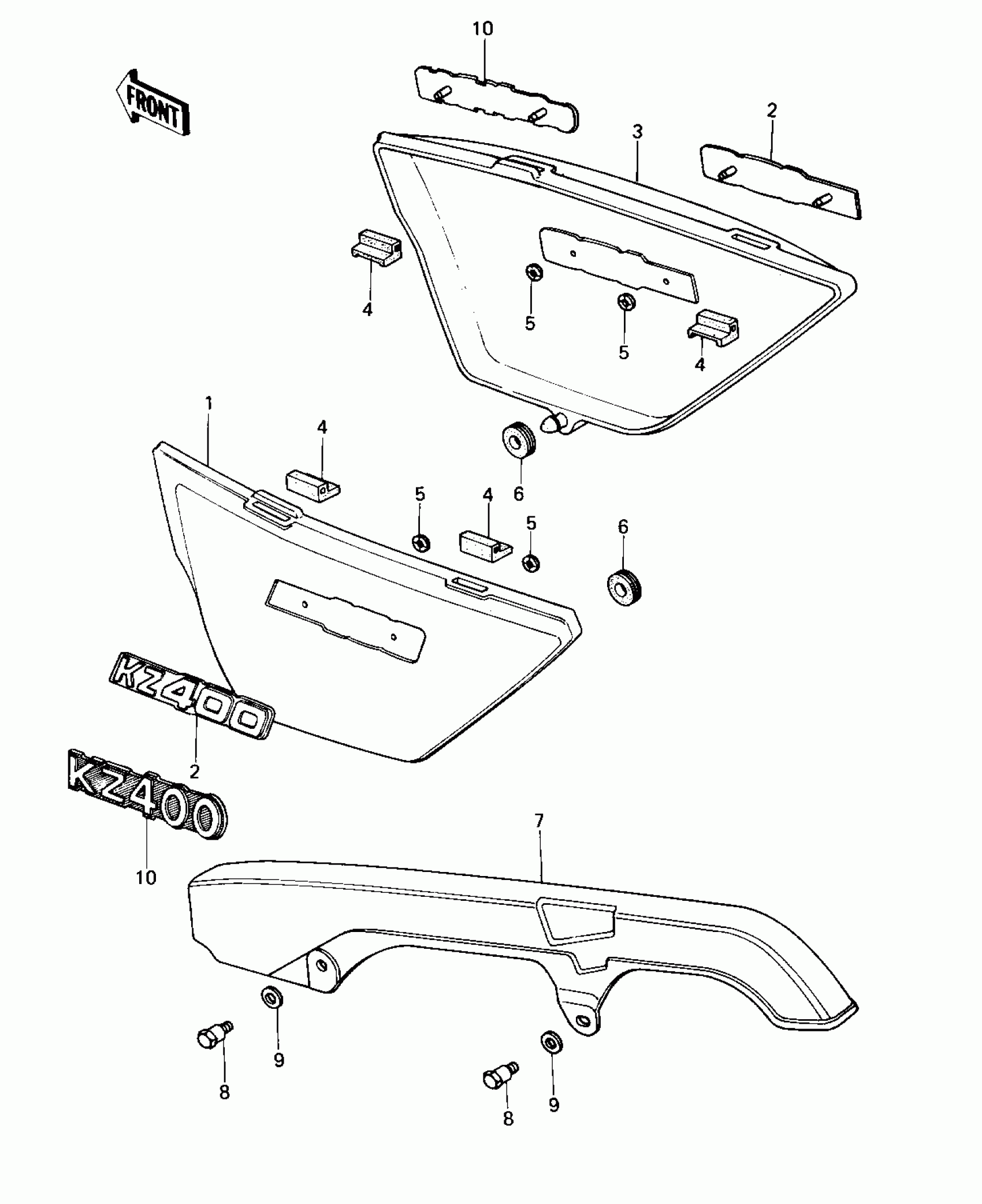

1979 Kawasaki KZ400-B2 Side Covers/chain Cover Diagram

#

Description
Price
Status
Order Qty

1

COVER,SIDE L.H. E GRN

36001-1057-4U

$111.85

In stock

1

COVER,SIDE

36001-1057-A5

$97.68

In stock

1

COVER,SIDE,L.H.L.RED

36001-1057-7V

Out of stock

1

COVER,SIDE,L.H,O.BLUE

36001-1057-4X

$111.63

In stock

2

EMBLEM,SIDE COVER

56018-267

Out of stock

3

COVER,SIDE R.H.E.GREN

36001-1058-4U

$111.63

In stock

3

COVER,SIDE R.H,P.REP

36001-1058-A5

$97.83

In stock

3

COVER SIDE,R.H.L.RED

36001-1058-7V

$98.22

In stock

3

COVER,SIDE,R.H.O.BLUE

36001-1058-4X

$104.22

In stock

4

PROTECTOR SIDE COVER

31082-005

Out of stock

5

NUT,PUSH,3MM

92018-005

Out of stock

6

GROMMET

92071-056

Out of stock

7

CASE,CHAIN

36014-1002

Out of stock

8

BOLT,HEAX HEAD,6X14

92001-115

Out of stock

9

WASHER,8.5X20X1.6

92022-1561

Out of stock

10

MARK,SIDE COVER

56018-1066

Out of stock
