1979 Kawasaki KZ400-B2 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1979 Kawasaki KZ400-B2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

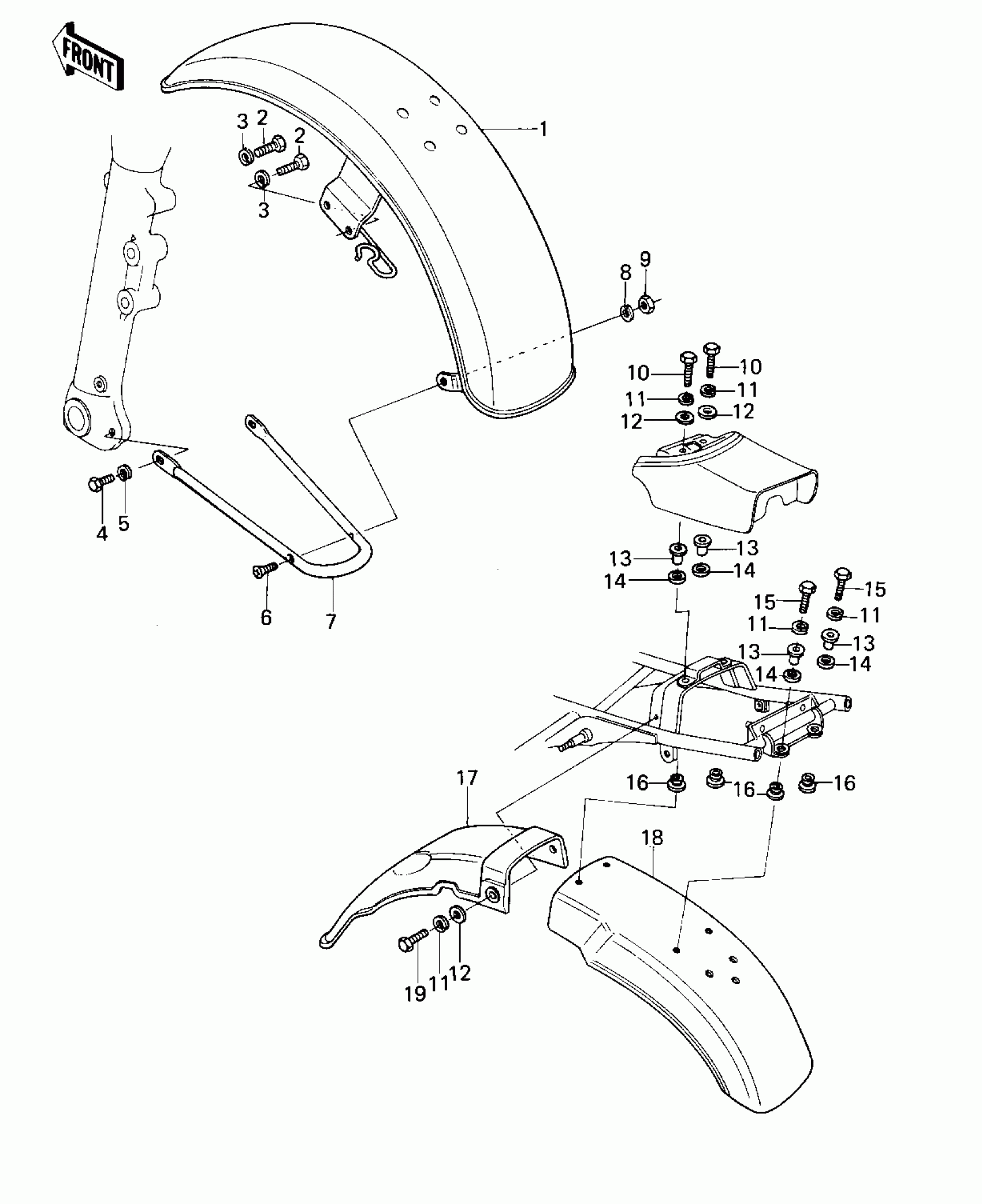

1979 Kawasaki KZ400-B2 Fenders Diagram

#

Description
Price
Status
Order Qty

1

FENDER-FR

35001-5007

$228.55

In stock

2

BOLT-SMALL-UPSET,8X16

115G0816

Out of stock

3

WASHER SPRING 8MM

461F0800

Out of stock

4

BOLT-UPSET,6X12

112G0612

Out of stock

5

WASHER SPRING 6MM

461F0600

Out of stock

6

SCREW-CSK-RD-CROS,5X20

222E0520A

Out of stock

7

STAY,FRONT FENDER

35010-027

Out of stock

8

WASHER SPRING 5MM

461F0500

Out of stock

9

NUT-HEX

311B0500

Out of stock

10

BOLT-UPSET

112G0630

Out of stock

11

WASHER SPRING 6MM

461F0600

Out of stock

12

WASHER,7X24X1.6

92022-228

Out of stock

13

COLLAR,L=13.1

92027-251

Out of stock

14

DAMPER,FEMALE

92075-175

Out of stock

15

BOLT-UPSET

112G0625

Out of stock

16

RUBBER,FENDER COVER

92075-174

Out of stock

17

FENDER-RR

35022-138

Out of stock

18

FENDER-RR

35022-1004

Out of stock

19

BOLT-UPSET

112G0618

Out of stock
