1978 Kawasaki KZ400-A2 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1978 Kawasaki KZ400-A2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

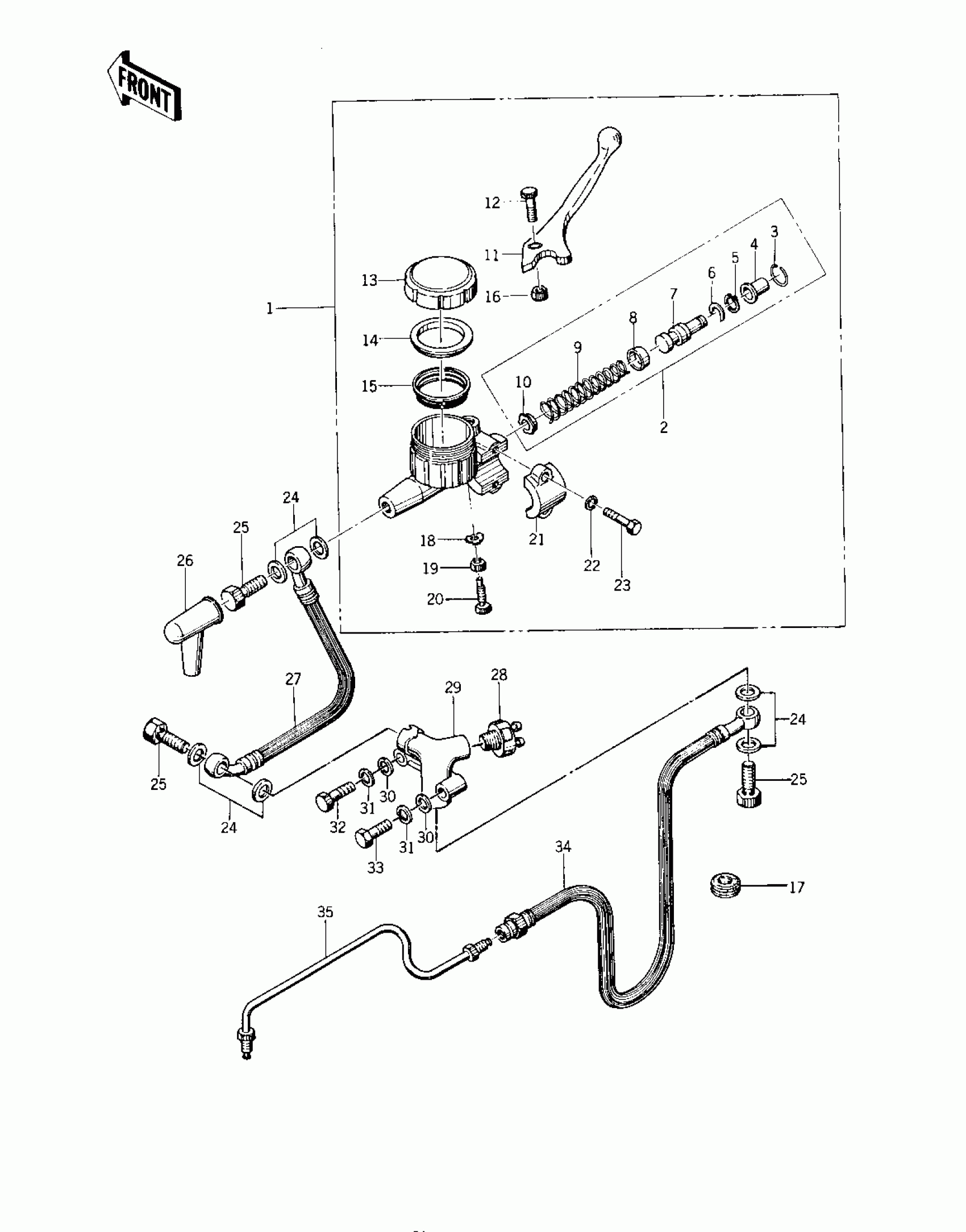

1978 Kawasaki KZ400-A2 Front Master Cylinder Diagram

#

Description
Price
Status
Order Qty

1

CYLINDER ASSY,MASTER

43015-032

Out of stock

1

CYLINDER ASSY,MASTER

43015-032

Out of stock

2

REPAIR SET-MASTER CYL

43073-001

Out of stock

3

STOPPER-BOOTS

43025-001

Out of stock

4

BOOTS

43024-001

Out of stock

5

CIRCLIP-TYPE-C,18MM

481J1800

Out of stock

6

STOPPER-PISTON

43022-001

Out of stock

7

PISTON ASSY

43072-001

Out of stock

8

CUP-PRIMARY

43019-001

Out of stock

9

SPRING ASSY-RETURN

43018-001

Out of stock

10

VALVE ASSY-CHECK

43017-001

Out of stock

11

LEVER,FRONT BRAKE

43029-003

Out of stock

12

BOLT

43033-004

Out of stock

13

CAP,OIL CUP

43026-003

Out of stock

14

PLATE-MASTER CYLINDE

43027-001

Out of stock

15

DIAPHRAGM

43028-001

Out of stock

16

NUT,6MM

312N0600

Out of stock

17

GROMMET-HOSE BRACKET

43064-001

Out of stock

18

WASHER-LOCK,8MM

43031-001

Out of stock

19

NUT,8MM

314N0800

Out of stock

20

BOLT,LEVER ADJUSTING

43030-003

Out of stock

21

HOLDER-MASTER CYL

43034-001

Out of stock

22

WASHER PLAIN 6MM

411B0600

Out of stock

23

BOLT HEX HEAD 6X25

110N0625

Out of stock

24

WASHER,10.5X15X1.5

43067-001

Out of stock

25

BOLT,OIL,L=23

92002-1888

Out of stock

26

BOOT,DUST

49006-1041

Out of stock

26

BOOT,DUST

49006-1041

Out of stock

27

HOSE,CYLINDER BRAKE

43059-019

Out of stock

28

SWITCH-FRONT BRAKE

43065-001

Out of stock

29

JOINT,THREE WAY

43061-002

Out of stock

30

WASHER PLAIN 6MM

411B0600

Out of stock

31

WASHER SPRING 6MM

461F0600

Out of stock

32

BOLT 6X22

112B0622

Out of stock

33

BOLT-HEX HEAD,6X32

110N0632

Out of stock

34

HOSE,CALIPER BRAKE

43059-020

Out of stock

35

PIPE,BRIDGE

43060-018

Out of stock
