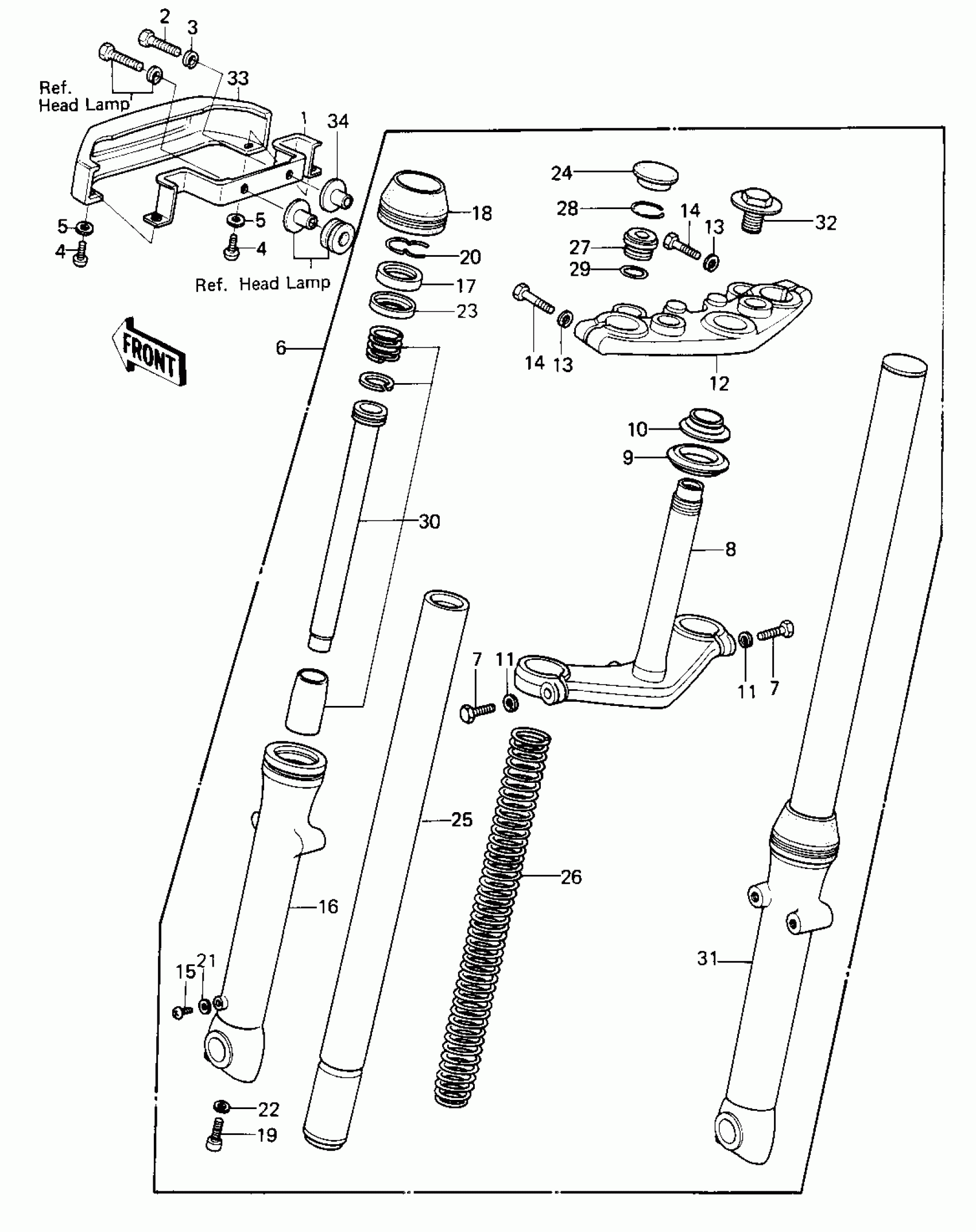

Kawasaki KZ250 FRONT FORK ('80 D1) Diagram

#

Description
Price

1

BRACKET,FORK COVER

11034-1698

Unavailable

2

BOLT-UPSET

112G0625

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

SCREW PAN HEAD 4X10

220B0410

Unavailable

5

WASHER PLAIN 4MM

410B0400

Unavailable

6

FORK-FRONT

44001-1114

$859.07

7

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

8

STEM,STEERING

44037-1036

$337.31

9

SEAL,STEERING STEM

44010-027

Unavailable

10

RACE,STEERING STEM BEARING

92047-010

$10.12

11

WASHER SPRING 10MM

461F1000

Unavailable

12

HEAD,STEERING STEM

44039-078

$238.33

13

WASHER SPRING 8MM

461F0800

Unavailable

14

BOLT,8X40

92001-1063

$9.34

15

SCREW PAN HEAD 4X6

220B0406

$1.25

16

TUBE,LH,FORK OUTER

44005-1047

$136.86

17

OIL SEAL,FORK

44009-028

Unavailable

18

DUST SHIELD,FORK

44010-037

Unavailable

19

BOLT,FORK CYLINDER

44041-078

$9.56

20

RING-SNAP,45MM

44044-020

$12.92

21

GASKET,FORK DRAIN PLUG

44045-046

$7.41

22

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

23

SPACER,OUTER TUBE

92026-1069

Unavailable

24

CAP,FORK

11012-1124

$9.10

25

TUBE,FORK INNER

44013-1039

$420.34

26

SPRING,FORK

44026-1054

$36.47

27

SEAT-FORK SPRING

44029-022

$11.12

28

RING-SNAP

44044-023

$4.80

29

RING-O

44046-025

$5.71

30

CYLINDER-FORK

44023-1005

$80.36

31

TUBE,RH,FORK OUTER

44006-1047

$151.45

32

BOLT,STEERING STEM HE

92001-1741

Unavailable

33

COVER,FORK

44033-1042

Unavailable

34

COLLAR,L=13.1

92027-251

Unavailable
