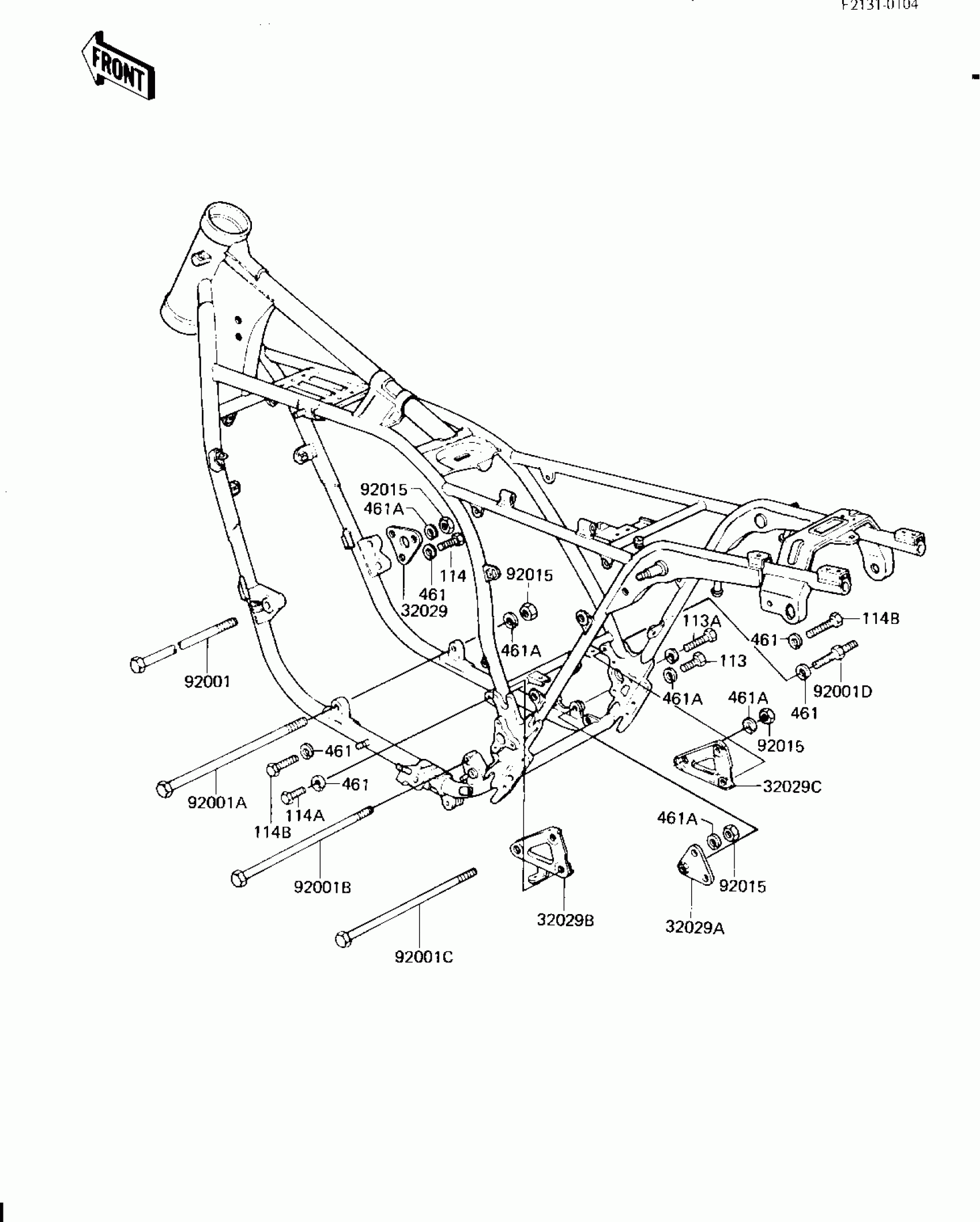

Kawasaki KZ1300-A4 FRAME FITTINGS Diagram

#

Description

Price

32029

BRACKET-ENGINE,FR,RH,UPP

32029-1061

Unavailable

32029A

BRACKET,ENGINE,REAR

32029-1062

$13.97

32029B

BRACKET,ENGINE,REAR

32029-1063

$38.83

32029C

BRACKET,ENGINE,REAR

32029-1064

$36.68

92001

BOLT,HEX HEAD,10X369

92001-1126

Unavailable

92001A

BOLT,HEX HEAD,10X3/3

92001-1127

Unavailable

92001B

BOLT,HEX HEAD,10X305

92001-1128

Unavailable

92001C

BOLT,HEX HEAD,10X287

92001-1129

Unavailable

92001D

BOLT,ENGINE BRACKET

92001-1400

Unavailable

92015

NUT,10MM

92015-1429

$5.15

113

BOLT,HEX HEAD,10X16

113G1016

Unavailable

113A

BOLT,HEX HEAD 10X40

92001-1253

Unavailable

114

BOLT,8X22

114G0822

Unavailable

114A

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

114B

BOLT,8X40

115G0840

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable
