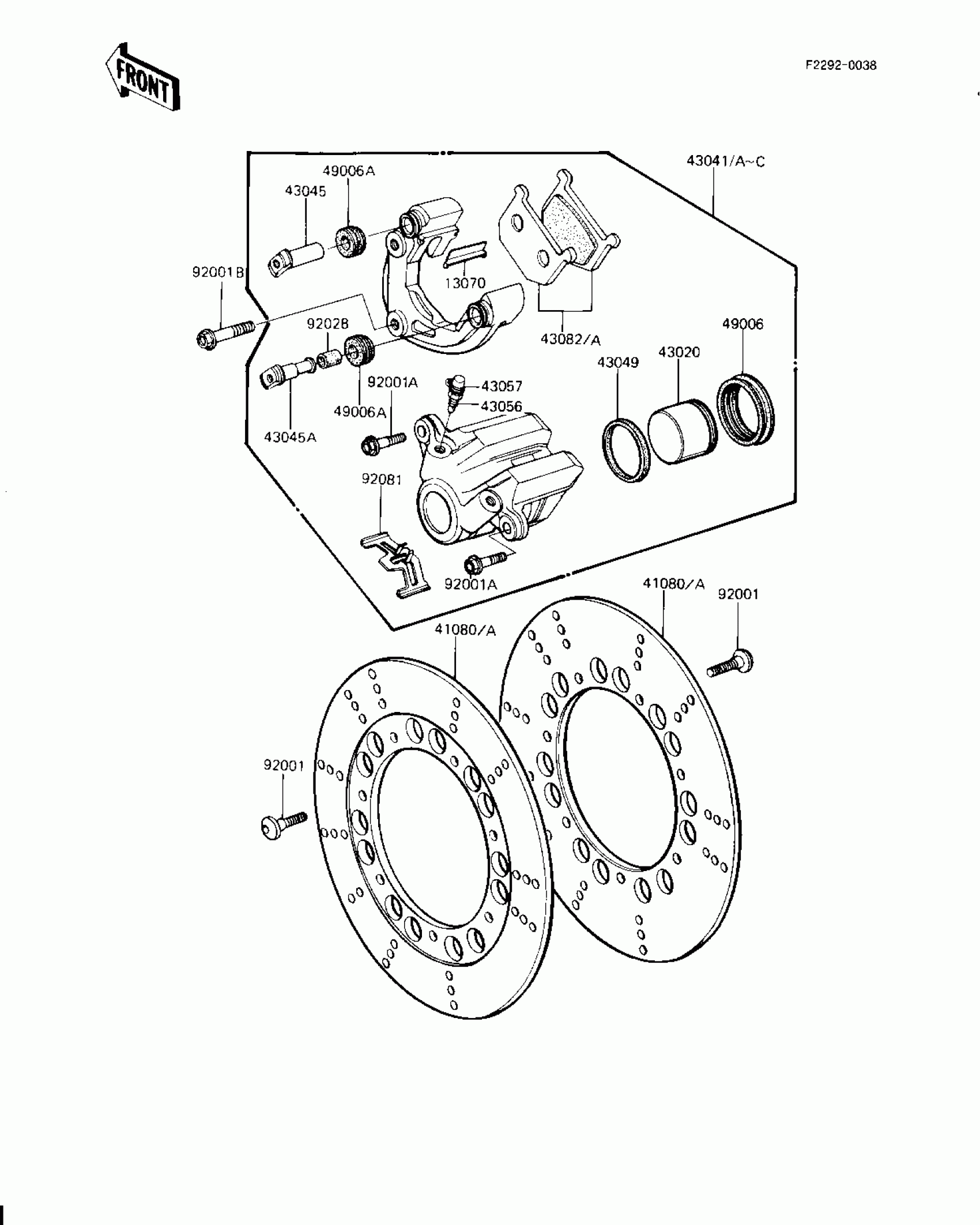

Kawasaki KZ1000-J3 FRONT BRAKE Diagram

Description

Price

13071

GUIDE,PAD

13070-1026

$7.70

41080A

UNAVAILABLE IN PRICE BOOK

41080-1036

Unavailable

43020

PISTON-COMP-BRAKE

43020-1096

Unavailable

43041B

CALIPER-ASSY,FR,LH

43041-1080

$371.88

43041C

CALIPER-ASSY,FR,RH

43041-1081

$371.88

43045

SHAFT-CALIPER

43045-1007

$21.69

43045A

SHAFT-CALIPER

43045-1008

$21.69

43049

PACKING,PISTON SEAL

43049-002

$10.56

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082A

PAD-ASSY-BRAKE

43082-1026

$64.08

49006

BOOT,PISTON

49006-1043

$10.53

49006A

BOOT,SHAFT

49006-1044

$6.62

92001

BOLT,DISC PLATE,8X30

92001-1951

$3.57

92001A

BOLT,CHAIN ADJUSTER

92001-132

Unavailable

92001B

BOLT,FLANGED,10X41

92001-1355

Unavailable

92028

BUSHING,7.8X11X15.7

92028-1090

$6.15

92081

SPRING,PAD

92081-1229

$16.98
