1983 Kawasaki KZ1000-J3 Cylinder Head Diagram

← All diagrams

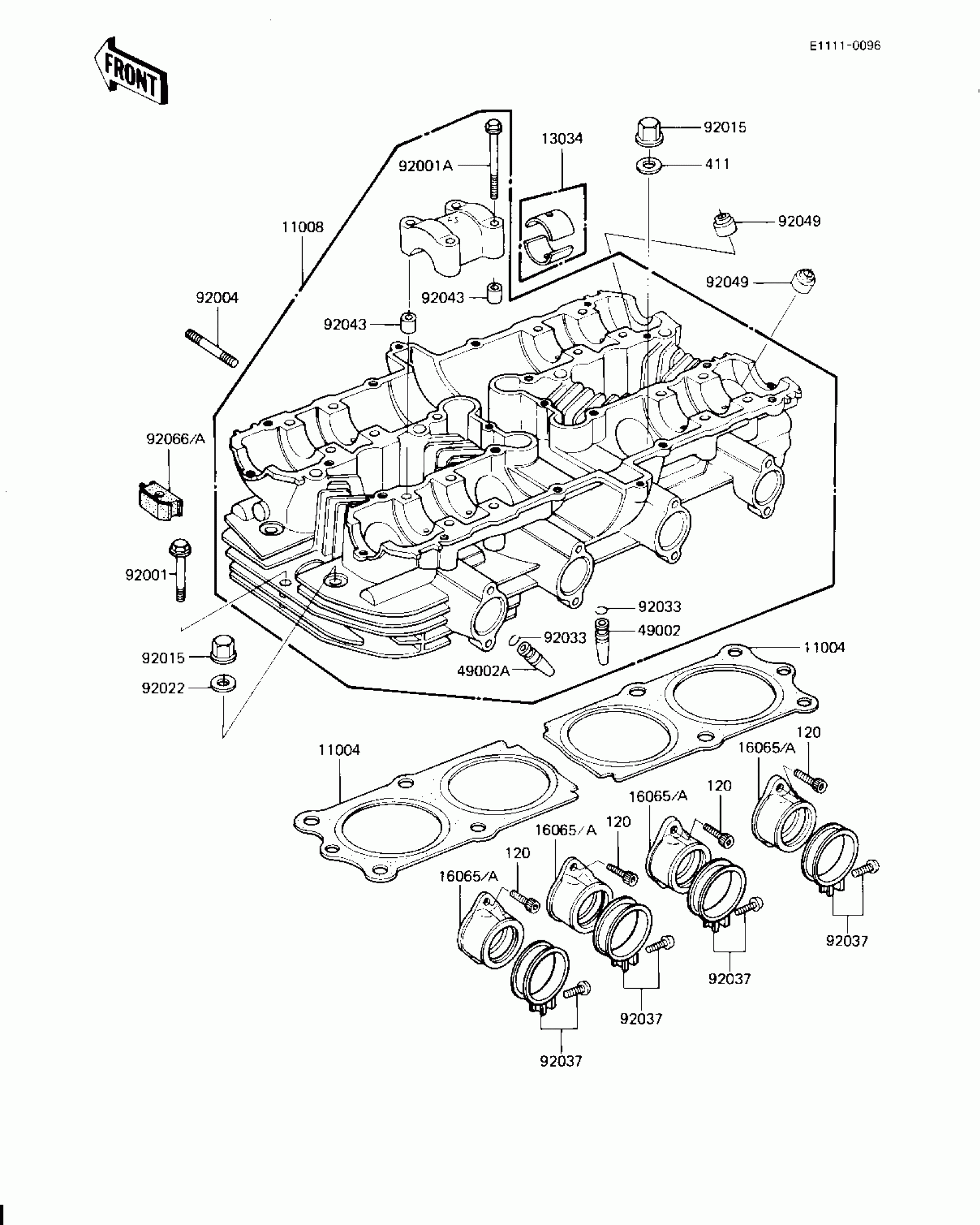

Find the part on the Cylinder Head diagram for your 1983 Kawasaki KZ1000-J3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KZ1000-J3 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1222

1

$109.05

In stock

11008

HEAD-COMP-CYLINDER,BL

11008-1015

1
Out of stock

13034

BUSHING,CAMSHAFT

13034-030

1

$20.54

In stock

16065A

HOLDER-CARBERTOR

16065-1131

1

$69.18

In stock

49002

GUIDE-VALVE,INTAKE

12013-009

1

$24.29

In stock

49002A

GUIDE-VALVE,EXHAUST

49002-1002

1
Out of stock

92001

BOLT,FLANGED,6X45

92003-092

1
Out of stock

92001A

BOLT,6X43

92002-1881

1
Out of stock

92004

STUD,8X30

92004-1069

1
Out of stock

92015

NUT,FLANGED CAP,10MM

92015-076

1
Out of stock

92022

WASHER,10.5X22X1.6

92022-1005

1

$3.58

In stock

92033

1

$0.53

In stock

92037

CLAMP,ID=53,BLACK

92037-1304

1

$8.16

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92049

SEAL-OIL,RV37129.5

92049-016

1
Out of stock

92066A

1

$42.04

In stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock
