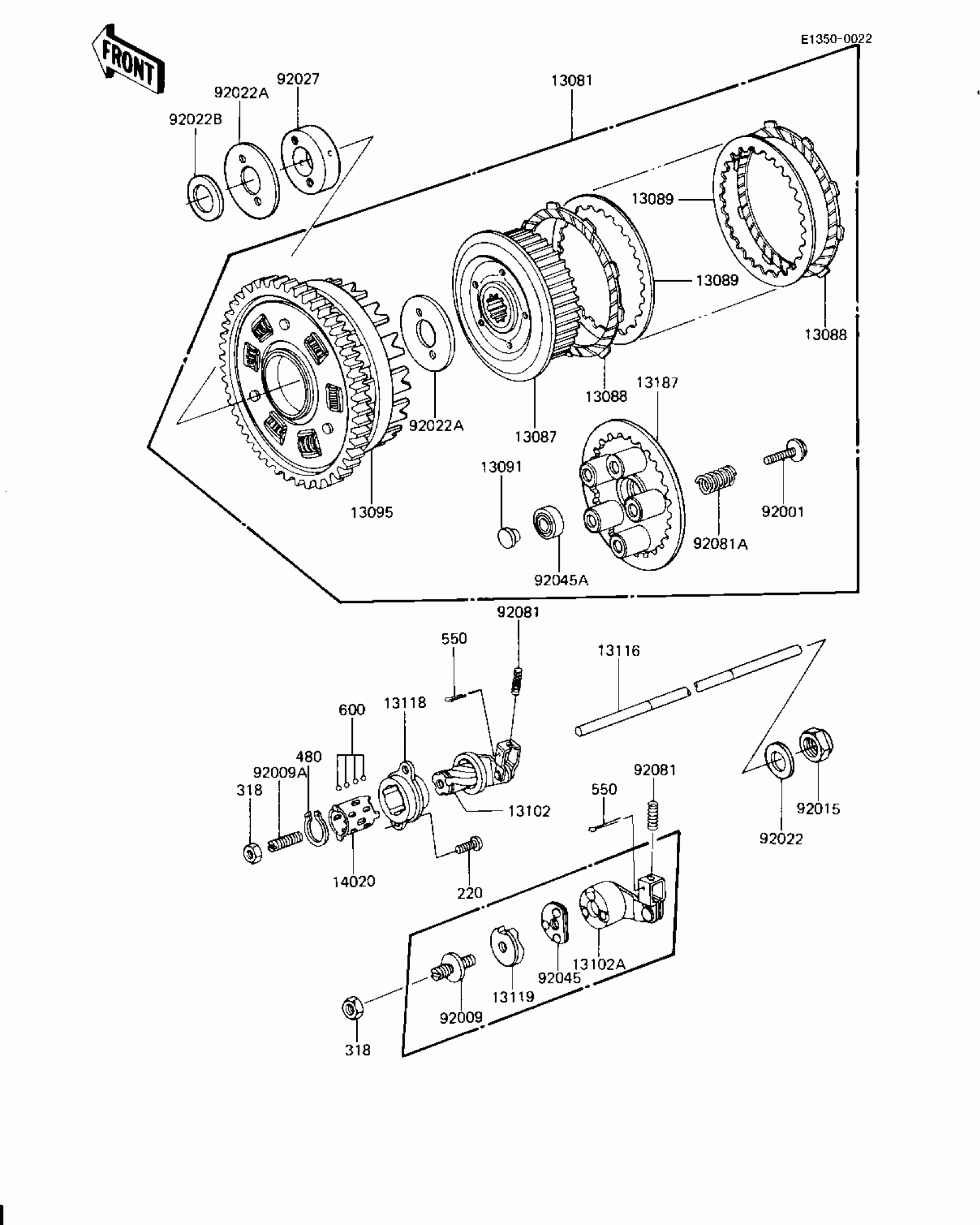

Kawasaki KZ1000-J3 CLUTCH Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1057

Unavailable

13087

HUB-CLUTCH

13087-1015

$252.61

13088

PLATE-FRICTION

13088-1013

$11.96

13089

PLATE-CLUTCH,T=2.3

13089-1004

$9.99

13091

HOLDER,CLUTCH PUSH ROD

13091-1085

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1037

$616.19

13102A

RELEASE-COMP-CLUTCH

13102-1012

$68.82

13116

ROD-PUSH

13116-1033

Unavailable

13119

CAM-RELEASE,CLUTCH

13119-1003

$15.92

13187

PLATE-CLUTCH OPERATING

13187-1006

$76.98

92001

BOLT,FLANGED,6X18

92001-1066

$4.67

92009

SCREW,8MM

92009-1009

Unavailable

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X2.3

92022-1116

$6.55

92022A

WASHER,CLUTCH THRUST

92022-1221

$14.24

92022B

WASHER,25.3X36X2.5

92022-1223

$8.39

92027

COLLAR,25X57X16.1

92027-1284

$89.53

92045

BEARING,BALL,CLUTCH

92045-1001

$8.82

92045A

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92081

SPRING,CLUTCH RELEASE

92081-069

$5.74

92081A

SPRING,CLUTCH

92081-1033

$5.64

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

550

PIN-COTTER,1.6X15

550D1615

$1.80
