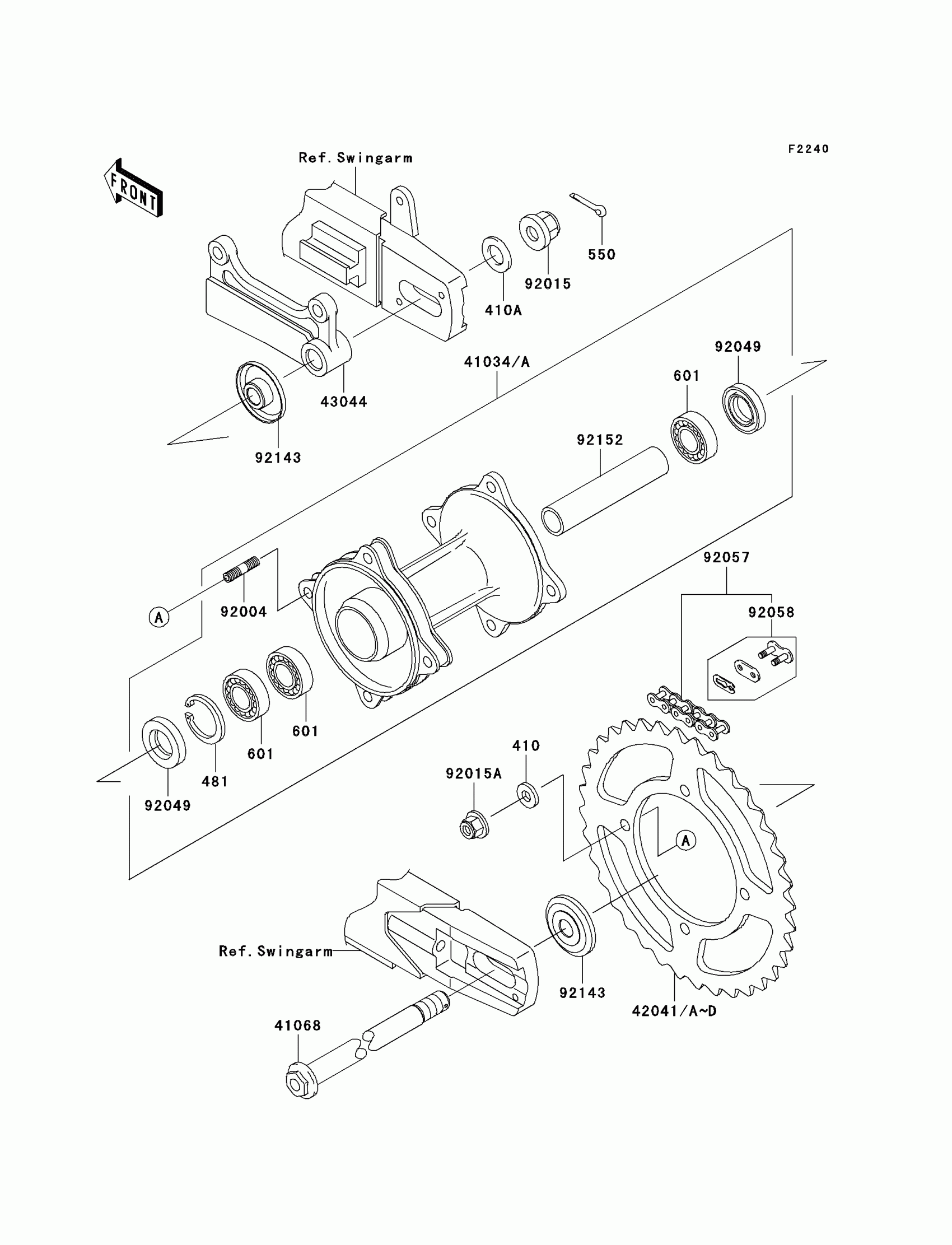

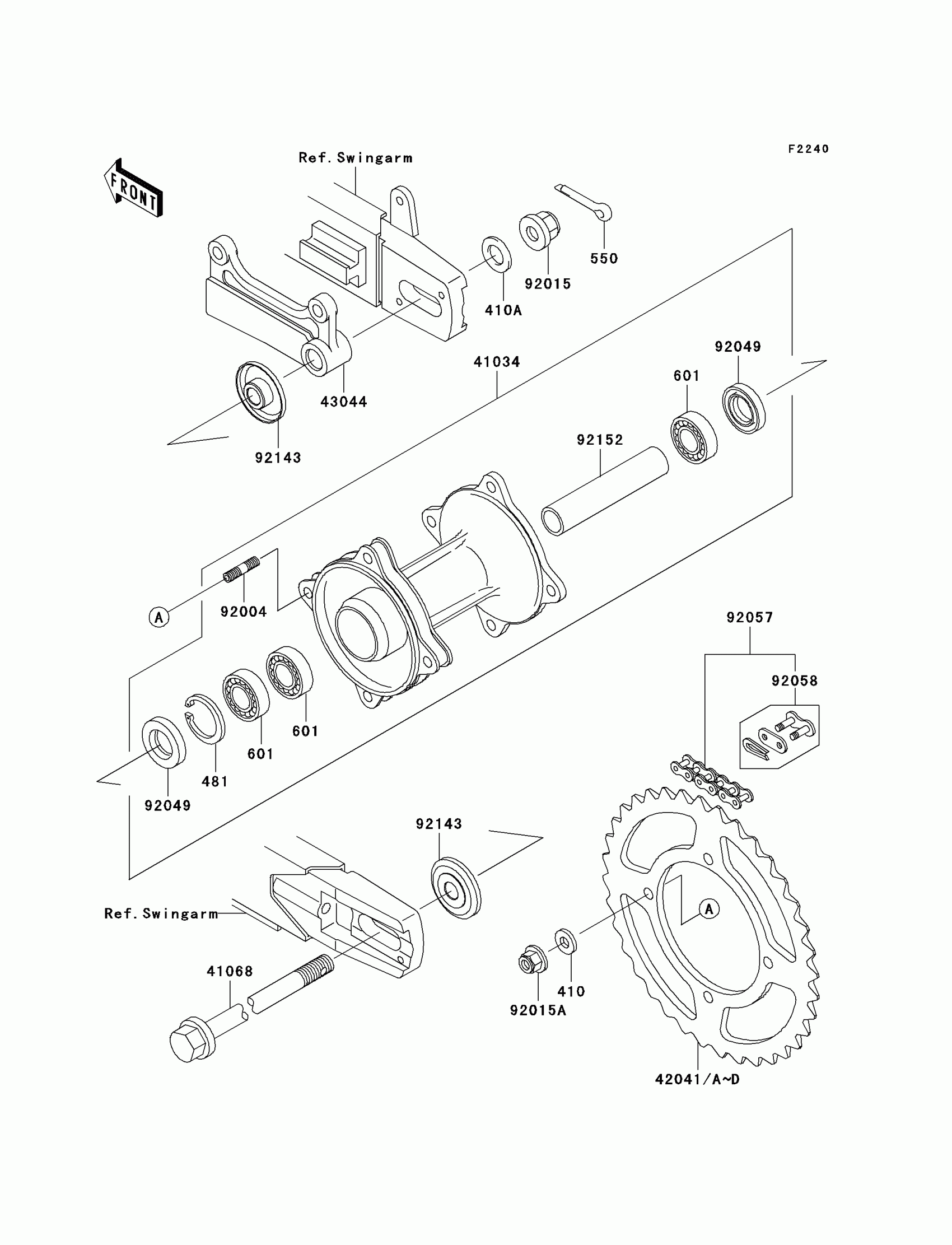

Kawasaki KX85 Rear Hub Diagram

#

Description
Price

410

WASHER PLAIN 8MM

410B0800

Unavailable

410A

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

550

PIN-COTTER,2.5X20

550D2520

$1.05

601

BEARING-BALL

601B6202UU

$17.77

41034

DRUM-ASSY,REAR BRAKE

41034-1323

$306.57

41068

AXLE,RR

41068-1401

$28.64

42041

SPROCKET-HUB,49T

42041-1207

$68.50

42041A

SPROCKET-HUB,48T

42041-1227

$68.50

42041B

SPROCKET-HUB,50T

42041-1228

$61.92

42041C

SPROCKET-HUB,51T

42041-1229

$70.35

42041D

SPROCKET-HUB,52T

42041-1245

$68.50

43044

HOLDER-COMP-CALIPER

43044-1122

$66.78

92004

STUD,8X16

92004-1183

$4.80

92015

NUT,FLANGED,14MM

92015-1401

$8.66

92015A

NUT,8MM

92015-1432

$4.93

92049

SEAL-OIL

92049-1469

$9.12

92057

CHAIN,DRIVE,DID420DS2X120L

92057-1496

$115.04

92058

JOINT-CHAIN,DRIVE

92058-1086

$11.10

92143

COLLAR,RR AXLE,L=12.5

92143-1938

$14.20

92152

COLLAR,RR BRAKE DRUM,L=95

92152-1090

$8.59
