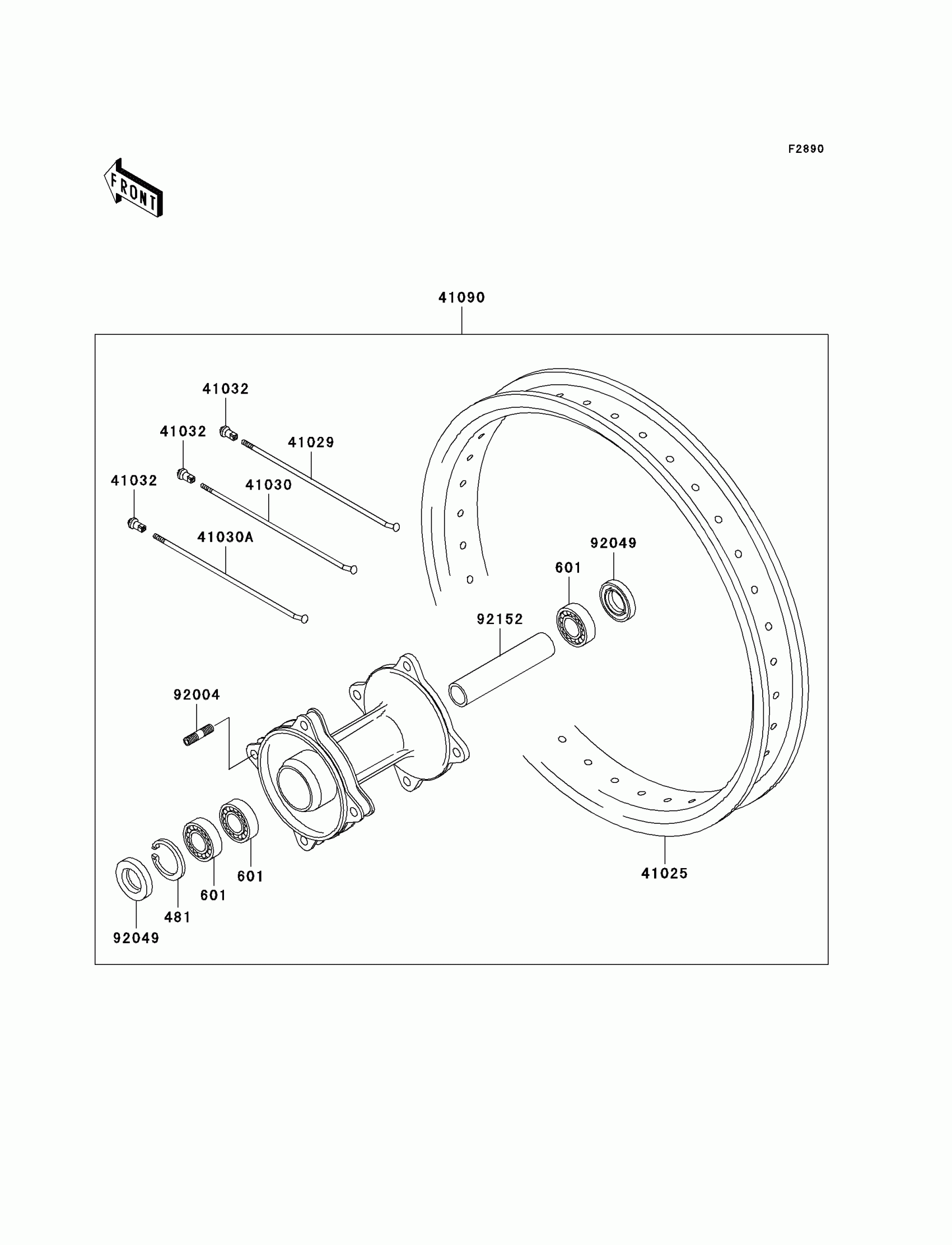

Kawasaki KX85 Optional Parts Diagram

#

Description
Price

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

601

BEARING-BALL

601B6202UU

$17.77

41025

RIM,RR,1.60X15

41025-0001

$386.05

41029

SPOKE-INNER,RR,L&R,167MMX171D

41029-0001

$4.71

41030

SPOKE-OUTER,RR,LH,165MMX171D

41030-0001

$4.71

41030A

SPOKE-OUTER,RR,RH,163MMX171D

41030-0002

$4.71

41032

NIPPLE-SPOKE,8X9X20(+),STEEL

41032-1077

$2.82

41090

WHEEL-SUB ASSY,RR

41090-0001

$707.15

92004

STUD,8X16

92004-1183

$4.80

92049

SEAL-OIL

92049-1469

$9.12

92152

COLLAR,RR BRAKE DRUM,L=95

92152-1090

$8.59
