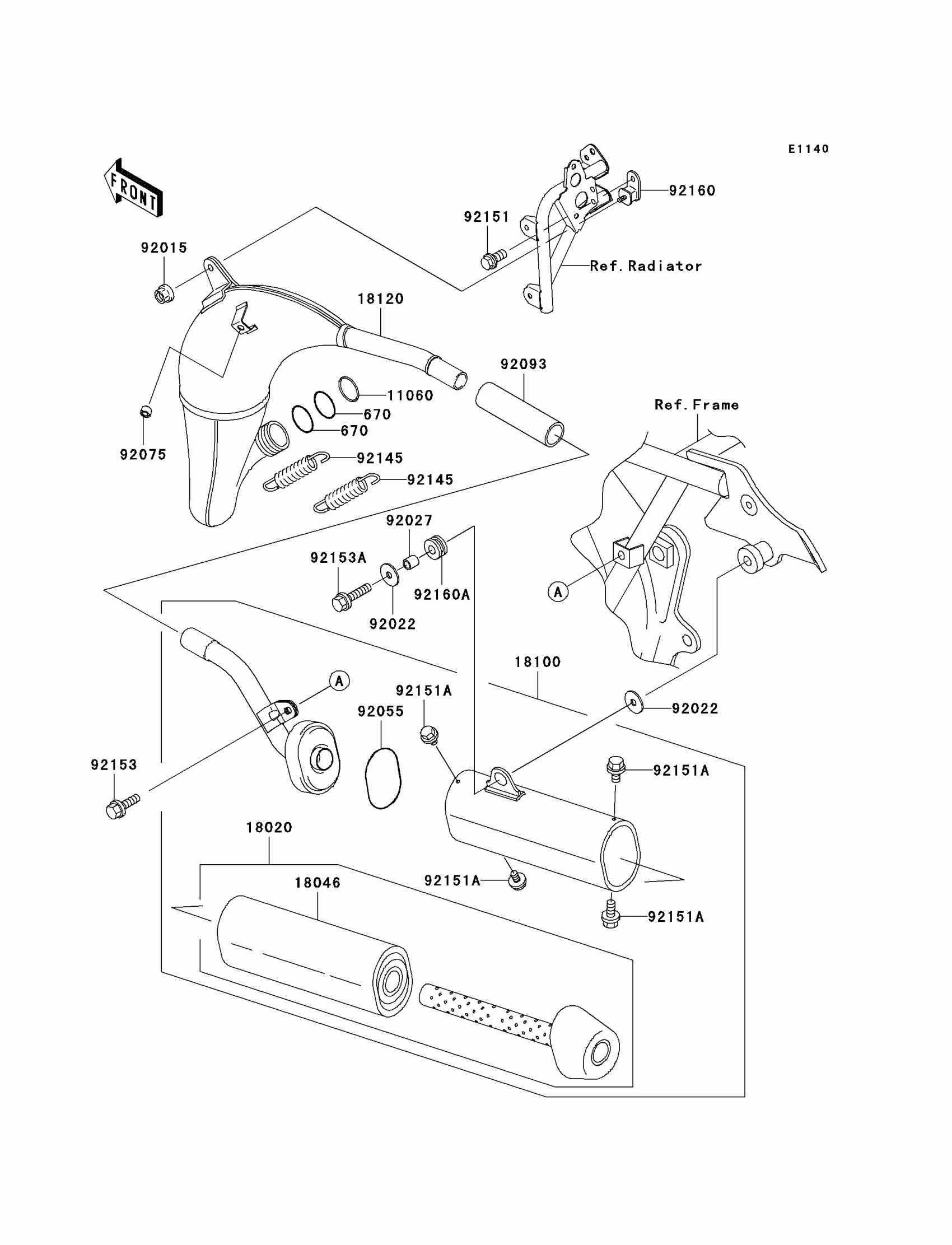

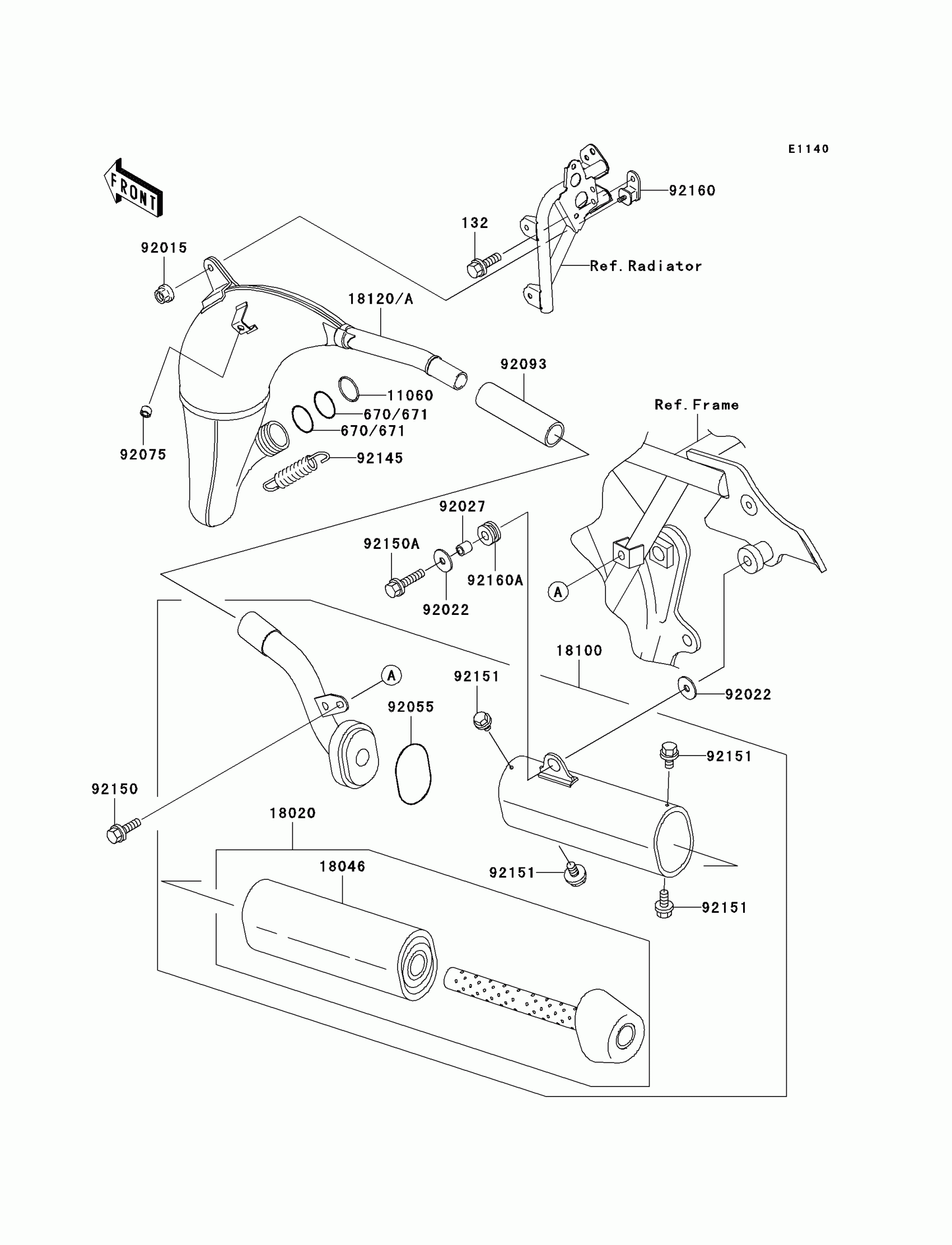

Kawasaki KX85 Muffler(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

670

O RING

670E3034

$6.08

11060

GASKET,EXHAUST HOLDER

11060-1842

$5.50

18020

BAFFLE

18020-1272

$131.99

18046

WOOL

18046-1559

$59.04

18100

BODY-ASSY-MUFFLER

18100-1084

Unavailable

18120A

CHAMBER-EXHAUST

18120-1114

$328.90

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X22X1.6

92022-237

$2.99

92027

COLLAR 6.8X10X10.5

92027-120

$3.81

92055

RING-O,BAFFLE PIPE

92055-1461

$7.25

92075

DAMPER

92075-1598

$6.55

92093

SEAL,MUFFLER JOINT

92093-1200

$38.42

92145

SPRING,EXHAUST CONNECTING

92145-1340

$10.19

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$3.66

92150A

BOLT,FLANGED,6X25

92150-1507

$3.66

92151

BOLT,FLANGED,6X10

92151-1822

$1.51

92160

DAMPER,MUFFLER,FR

92160-1176

$25.03

92160A

DAMPER

92160-1913

$1.89
