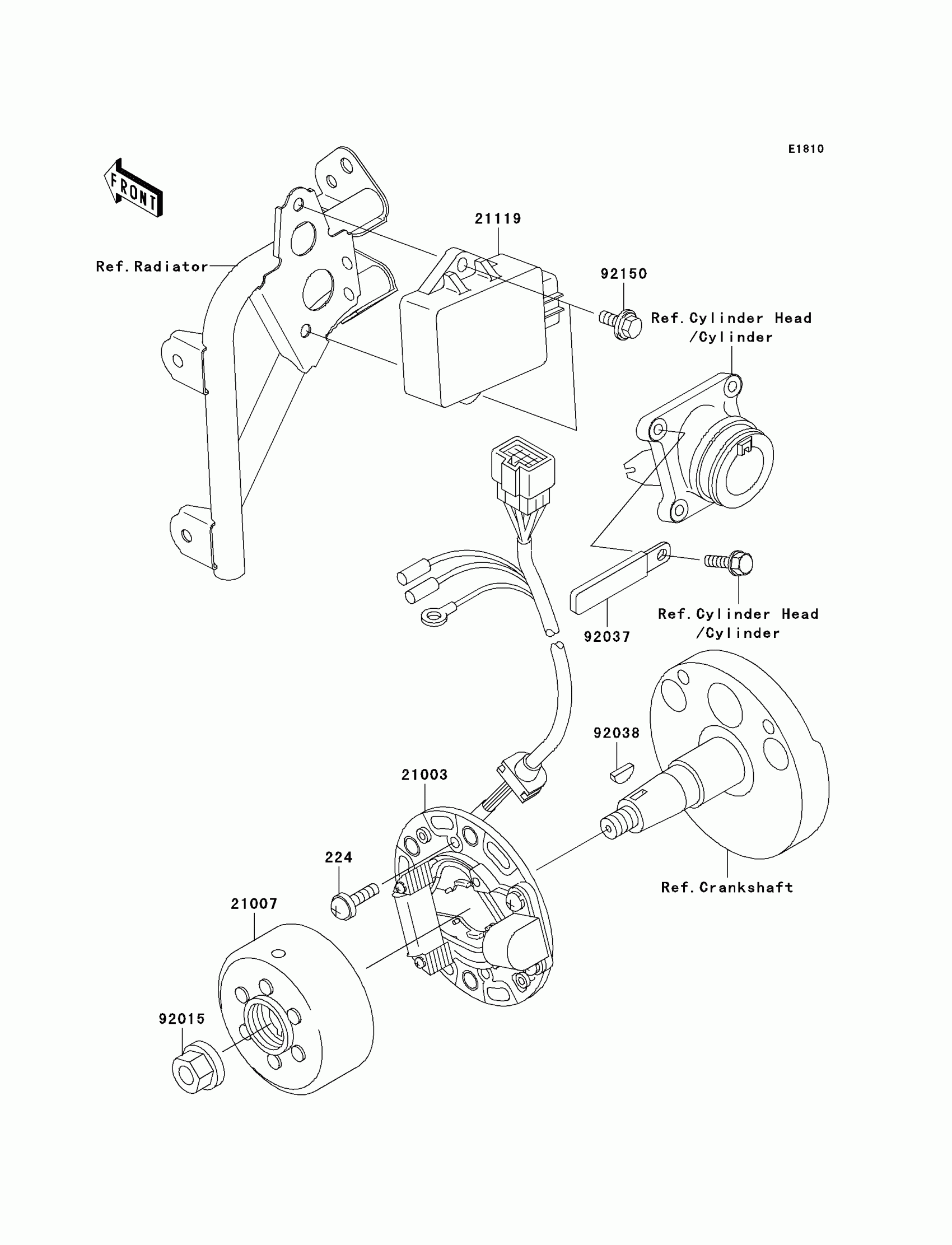

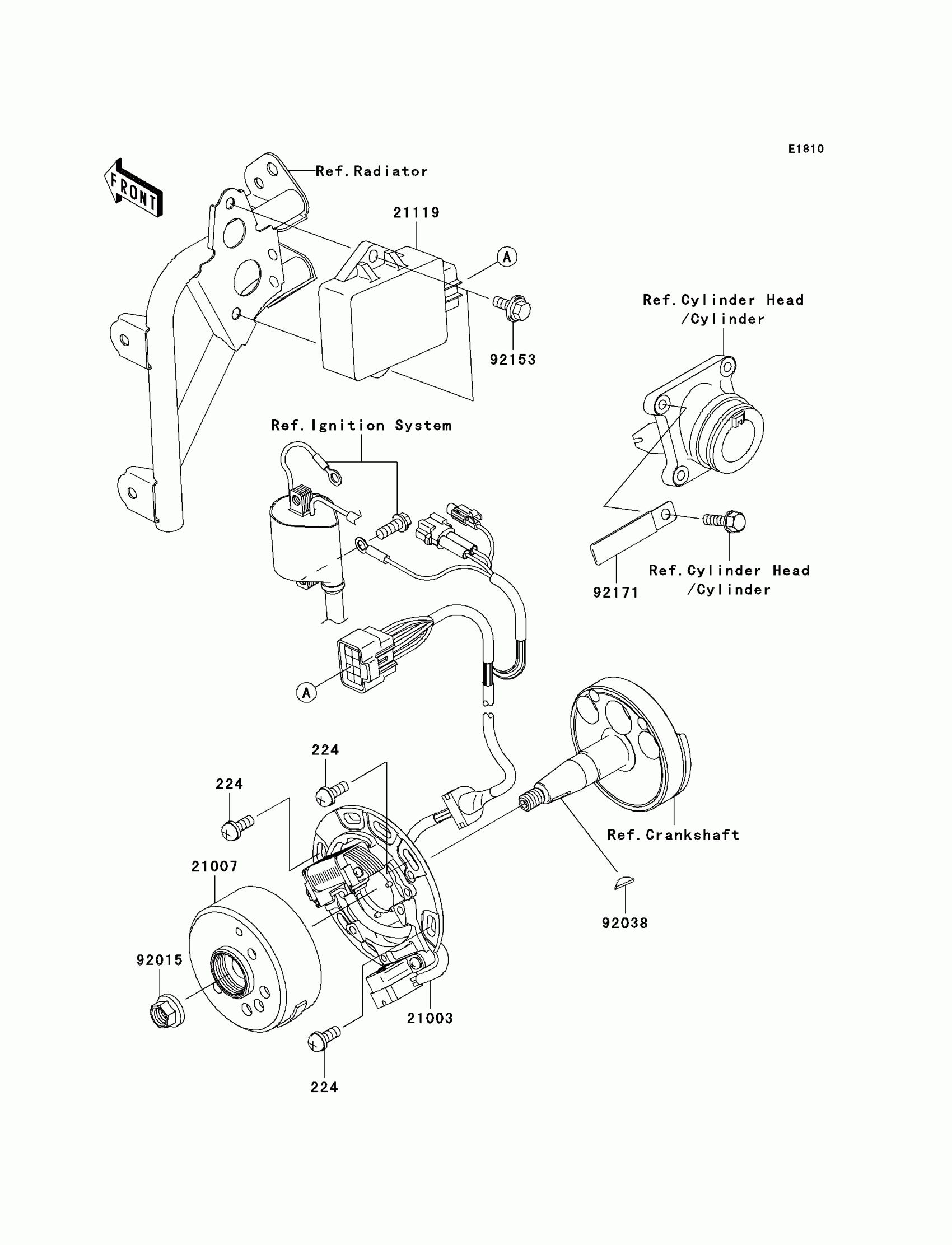

Kawasaki KX85 Generator Diagram

#

Description
Price

224

SCREW-PAN-WP-CROS

224B0614

$4.17

21003

STATOR

21003-1366

$229.50

21007

ROTOR,MAGNETO

21007-1239

$427.74

21119

IGNITER

21119-1572

$233.91

92015

NUT,FLANGED,10MM

92015-077

$3.57

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92038

KEY,WOODRUFF

92038-001

$3.78

92150

BOLT,FLANGED,6X16

92150-1506

$3.81
