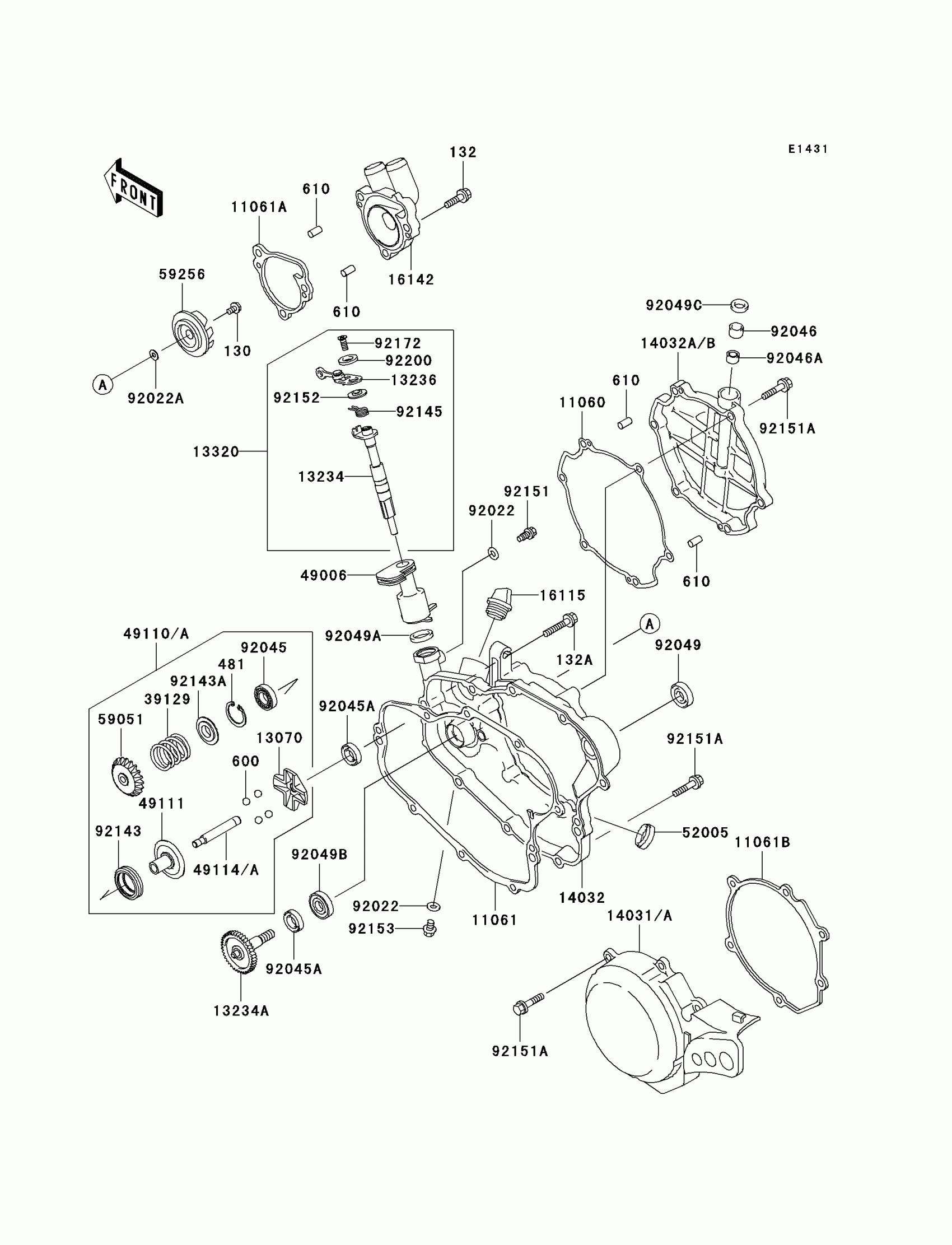

Kawasaki KX85 Engine Cover(s) Diagram

#

Description
Price

11060

GASKET,CLUTCH COVER

11060-1795

$13.12

11061

GASKET,CLUTCH COVER

11061-0122

$5.79

11061A

GASKET,PUMP COVER

11061-0184

$5.87

11061B

GASKET,GENERATOR COVER

11061-0194

$18.64

13070

GUIDE,GOVERNOR

13070-1309

$54.40

13234

SHAFT-COMP

13234-0008

$49.92

13234A

SHAFT-COMP,WATER PUMP

13234-1103

$63.89

13236

LEVER-COMP

13236-0023

$4.72

13320

LEVER-ASSY

13320-0002

$55.90

14032

COVER-CLUTCH,INSIDE

14032-0041

$190.23

16115

CAP-OIL FILLER

16115-018

$8.04

16142

COVER-PUMP,WATER

16142-1144

$79.46

39129

SPRING-GOVERNOR

39129-1022

$5.49

49006

BOOT,GOVERNOR

49006-1313

$9.12

49110A

GOVERNOR-ASSY

49110-0010

$171.50

49111

HOLDER-GOVERNOR WEIGHT

49111-1064

$25.00

49114

SHAFT-GOVERNOR

49114-0005

$16.81

52005

GAUGE,OIL LEVEL

52005-0019

$11.20

59051

GEAR-SPUR

59051-1412

$30.53

59256

IMPELLER

59256-1064

$32.28

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,5.2X13X1

92022-1380

$3.29

92045

BEARING-BALL

92045-0010

$34.77

92045A

BEARING-BALL,608MC3

92045-1305

$9.41

92046

BEARING-NEEDLE,HK1010FM

92046-1160

$12.58

92046A

BEARING-NEEDLE,6BTM109

92046-1217

$16.10

92049

SEAL-OIL,SB16244

92049-002

$6.75

92049A

SEAL-OIL,AG0353-F0

92049-1262

$4.93

92049B

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$13.54

92049C

SEAL-OIL,BG1408F0

92049-1414

$4.18

130

BOLT-FLANGED,5X10

130CA0510

$1.39

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$0.90

132A

BOLT-FLANGED-SMALL,6X30

132BC0630

$1.57

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.22

600

BALL-STEEL,5/16

600A1000

$0.66

610

ROLLER,4X8

610A0408

$3.29

92143

COLLAR

92143-1932

$19.25

92143A

COLLAR

92143-1933

$9.02

92145

SPRING

92145-0089

$3.52

92151

BOLT,FLANGED,6X11

92151-1180

$1.76

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR,LEVER

92152-0085

$3.75

92153

BOLT,FLANGED,6X8

92153-1005

Unavailable

92172

SCREW,6X14

92172-0087

$1.73

92200

WASHER,LEVER

92200-0040

$3.29

14031

COVER-GENERATOR

14031-0029

$79.14

14031A

COVER-GENERATOR

14031-0108

$81.19

14032A

COVER-CLUTCH,OUTSIDE

14032-0134

$91.90

14032B

COVER-CLUTCH,OUTSIDE

14032-1463

$85.17
