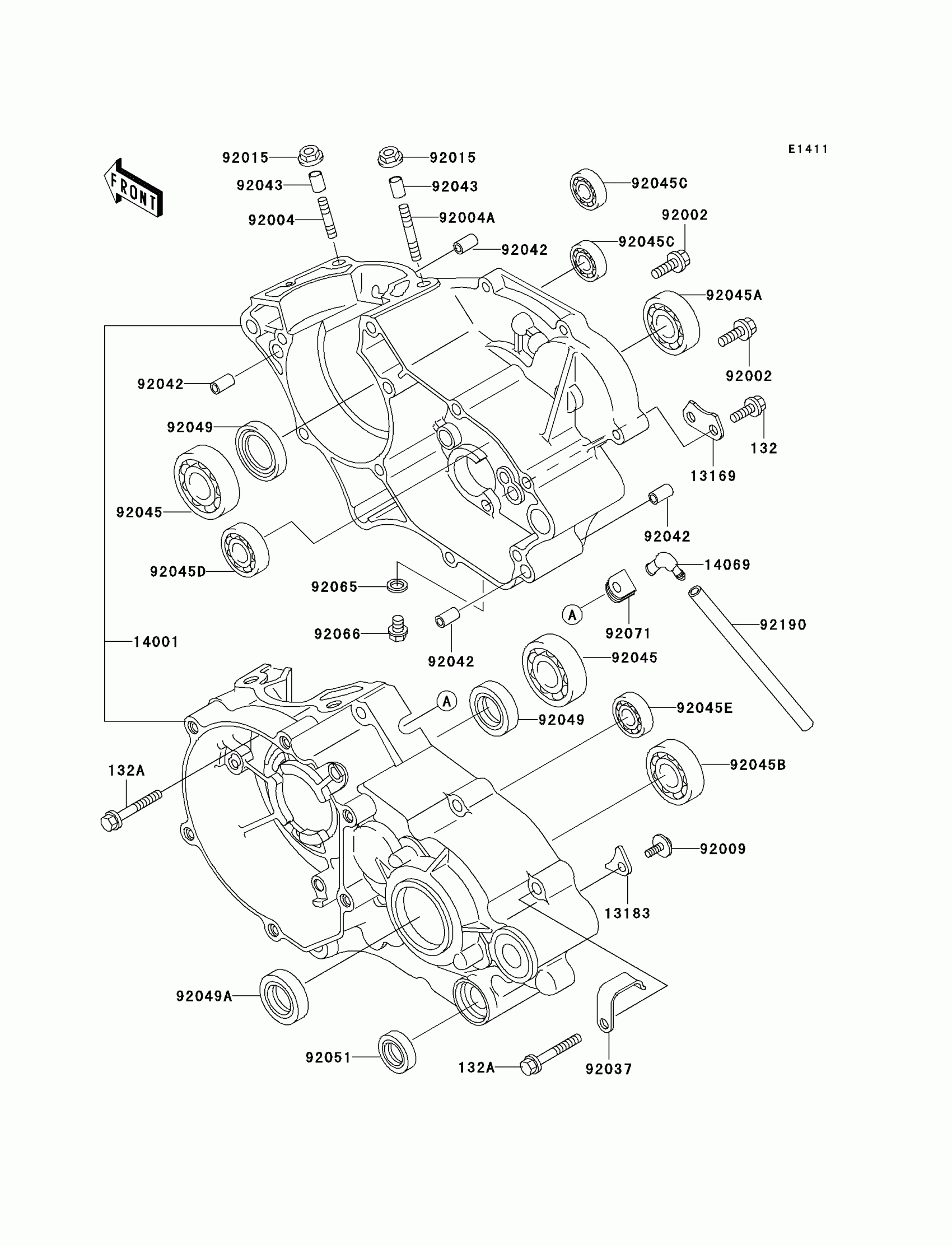

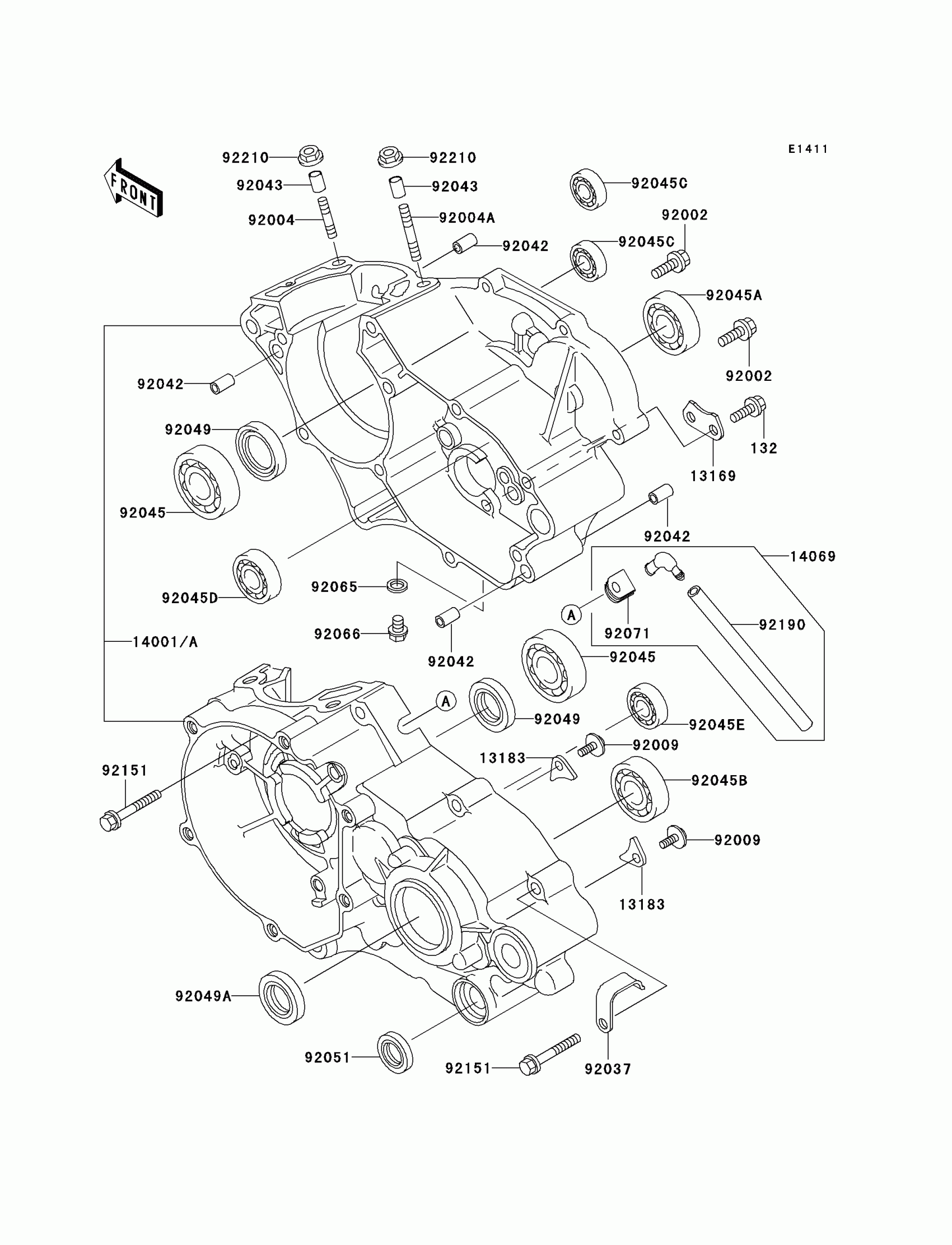

Kawasaki KX85 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132G0635

Unavailable

13169

PLATE,CHANGE DRUM

13169-012

$15.44

13183

PLATE

13183-1182

$3.57

14001

SET-CRANKCASE

14001-1313

$491.48

14069

BREATHER,CRANKCASE

14069-002

$19.99

92002

BOLT,6X16

92002-1659

$3.81

92004

STUD,8X28.5

92004-1252

$3.54

92004A

STUD,8X37

92004-1254

$2.74

92009

SCREW,6X10

92009-1563

$2.98

92015

NUT,8MM

92015-1143

$0.57

92037

CLAMP,HARNESS

92037-1318

$7.25

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8.2X10X14

92043-1264

$0.51

92045

BEARING-BALL,R-6304C3

92045-1059

$27.31

92045A

BEARING-BALL,6004TMB

92045-1118

$19.29

92045B

BEARING-BALL,6204

92045-1226

$21.62

92045C

BEARING-BALL,626MC3

92045-1304

$9.03

92045D

BEARING-BALL,TMB002

92045-1360

$13.01

92045E

BEARING-BALL,16101JRXC3

92045-1450

$21.67

92049

SEAL-OIL,SD20407GS

92049-1188

$13.54

92049A

SEAL-OIL,TC25375

92049-1292

$7.08

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG,DRAIN

92066-1437

$4.88

92071

GROMMET,BREATHER

92071-042

$3.25

92190

TUBE,6X9X330

92190-1116

Unavailable
