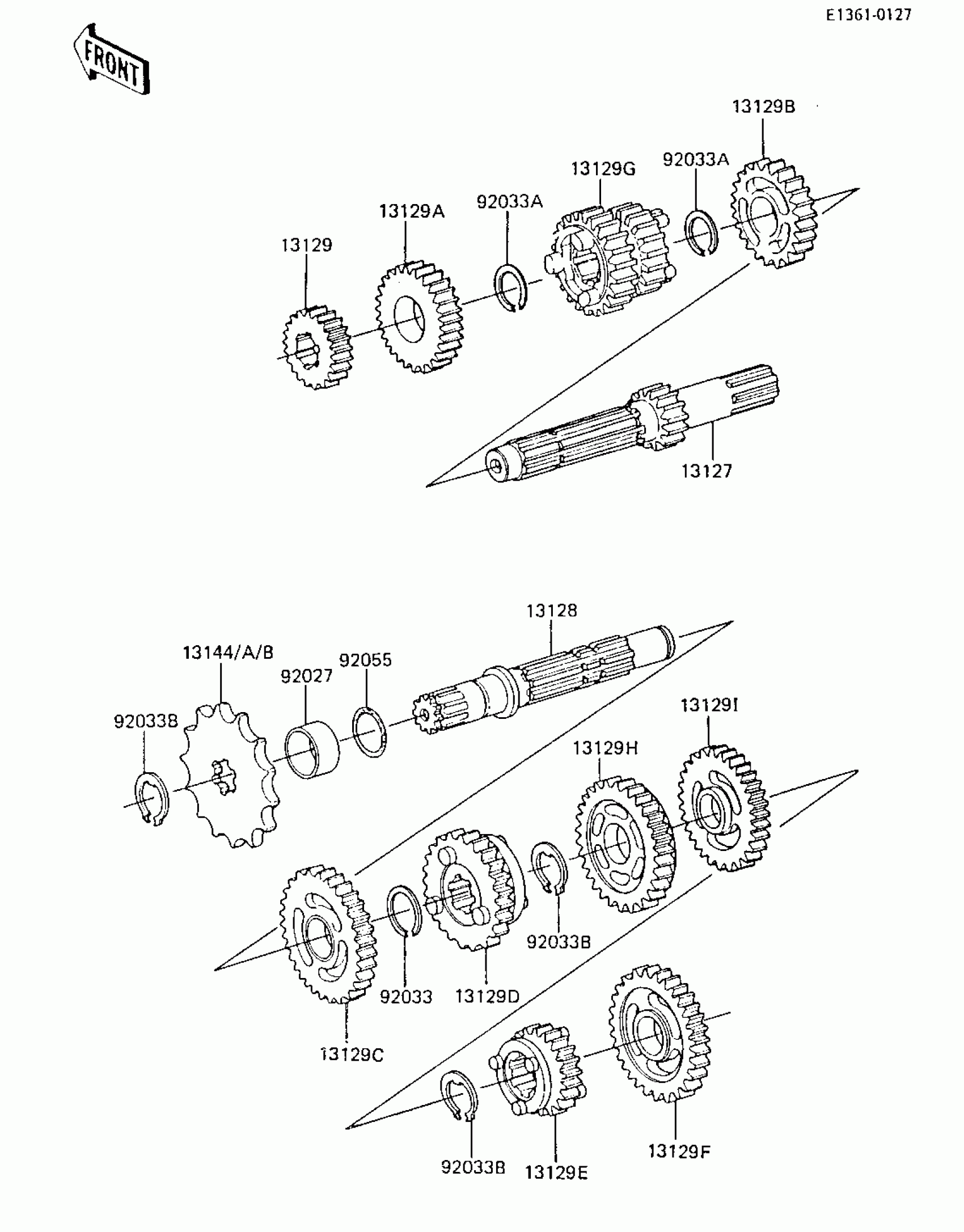

Kawasaki KX80 TRANSMISSION ('85 KX80-E3) Diagram

Description

Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-1105

$131.54

13128

SHAFT-TRANSMISSION OUTPUT

13128-1028

$140.81

13129

GEAR,INPUT 2ND,16T

13129-1215

$66.46

13129A

GEAR,INPUT 5TH,23T

13129-1343

$76.52

13129B

GEAR,INPUT TOP,24T

13129-1344

Unavailable

13129C

GEAR,OUTPUT 2ND,34T

13129-1345

$83.00

13129D

GEAR,OUTPUT 5TH,28T

13129-1348

$80.08

13129E

GEAR,OUTPUT TOP,26T

13129-1349

$80.08

13129F

GEAR,OUTPUT LOW,37T

13129-1515

$76.52

13129G

GEAR,INPUT 3RD&4TH,21T&18T

13129-1611

$120.25

13129H

GEAR,OUTPUT 4TH,30T

13129-1612

$72.18

13129I

GEAR,OUTPUT 3RD,31T

13129-1654

$76.52

13144

SPROCKET-OUTPUT,14T

13144-1022

$22.51

13144A

SPROCKET-OUTPUT,13T

13144-1023

Unavailable

13144B

SPROCKET-OUTPUT,15T

13144-1024

Unavailable

92027

COLLAR,20X25X12.5

92027-1077

$19.26

92033

RING-SNAP,18MM

92033-029

$7.79

92033A

RING-SNAP,17MM

92033-1060

$3.39

92033B

RING-SNAP,18MM

92033-1079

$3.39

92055

RING-O,17.5X1.5

92055-022

$4.93
