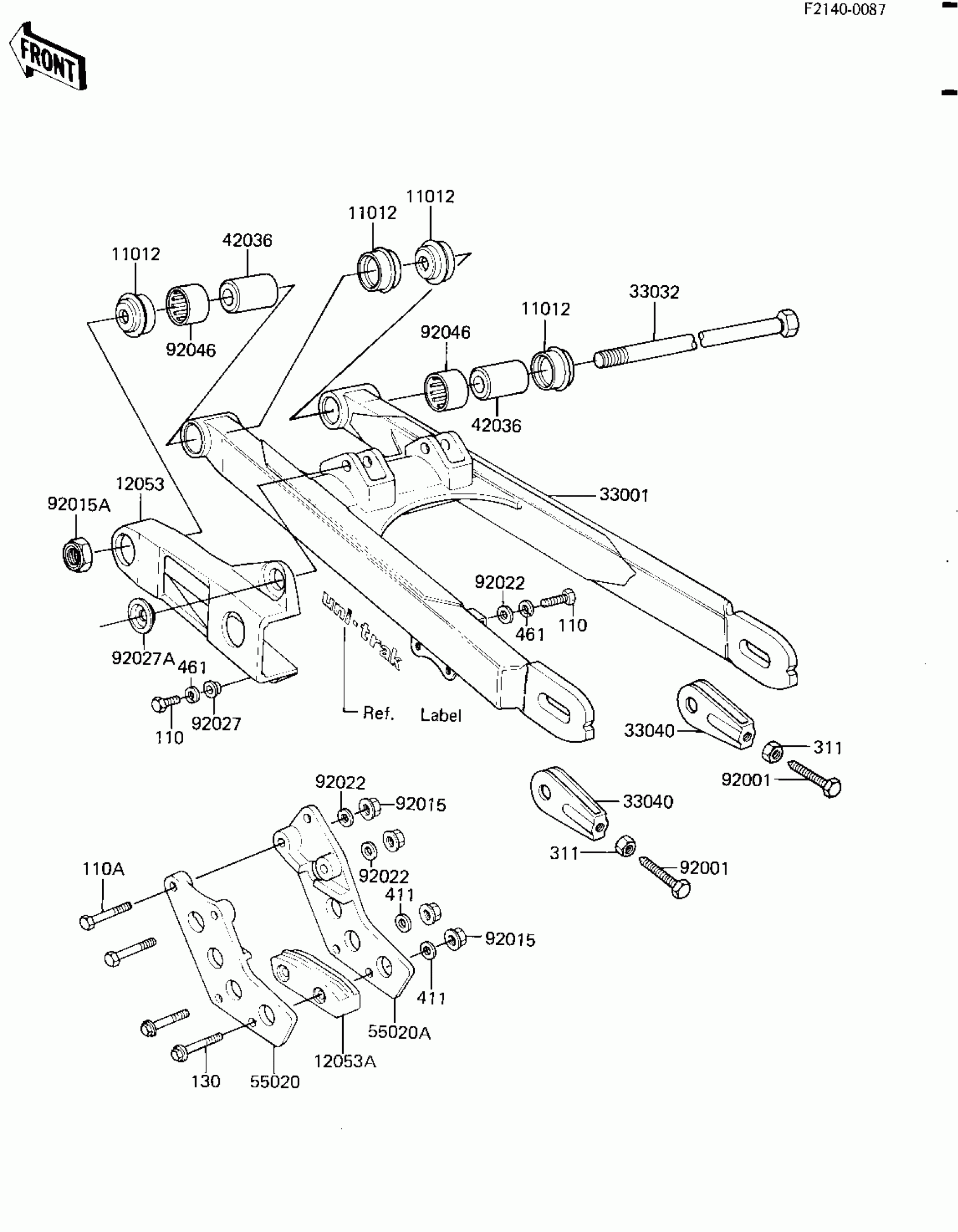

Kawasaki KX80 SWING ARM ('82 KX80-C2) Diagram

Description

Price

11012

CAP,SWING ARM

11012-1150

Unavailable

12053

GUIDE,CHAIN

12053-1053

Unavailable

12053A

GUIDE,CHAIN

12053-1057

Unavailable

33001

ARM,SWING

33001-1074

$178.23

33032

SHAFT,SWING ARM

33032-1017

$36.31

33040

ADJUSTER,CHAIN

33040-1009

Unavailable

42036

SLEEVE,CHAIN GUIDE

42036-1042

Unavailable

55020

GUARD,CHAIN

55020-1047

$37.62

55020A

GUARD,CHAIN

55020-1055

Unavailable

92001

BOLT,6X39

92001-1463

$3.72

92015

NUT,LOCK 6MM

92017-014

$5.98

92015A

NUT-LOCK,14MM

92019-011

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR,L=5.1

92027-1260

$4.93

92027A

COLLAR,CHAIN GUIDE

92027-1332

Unavailable

92046

BEARING-NEEDLE,F-2220

92046-1162

$19.68

110

BOLT-UPSET,6X16

112G0616

Unavailable

110A

BOLT-UPSET

112G0645

Unavailable

130

BOLT,FLANGED,6X40

130B0640

Unavailable

311

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
