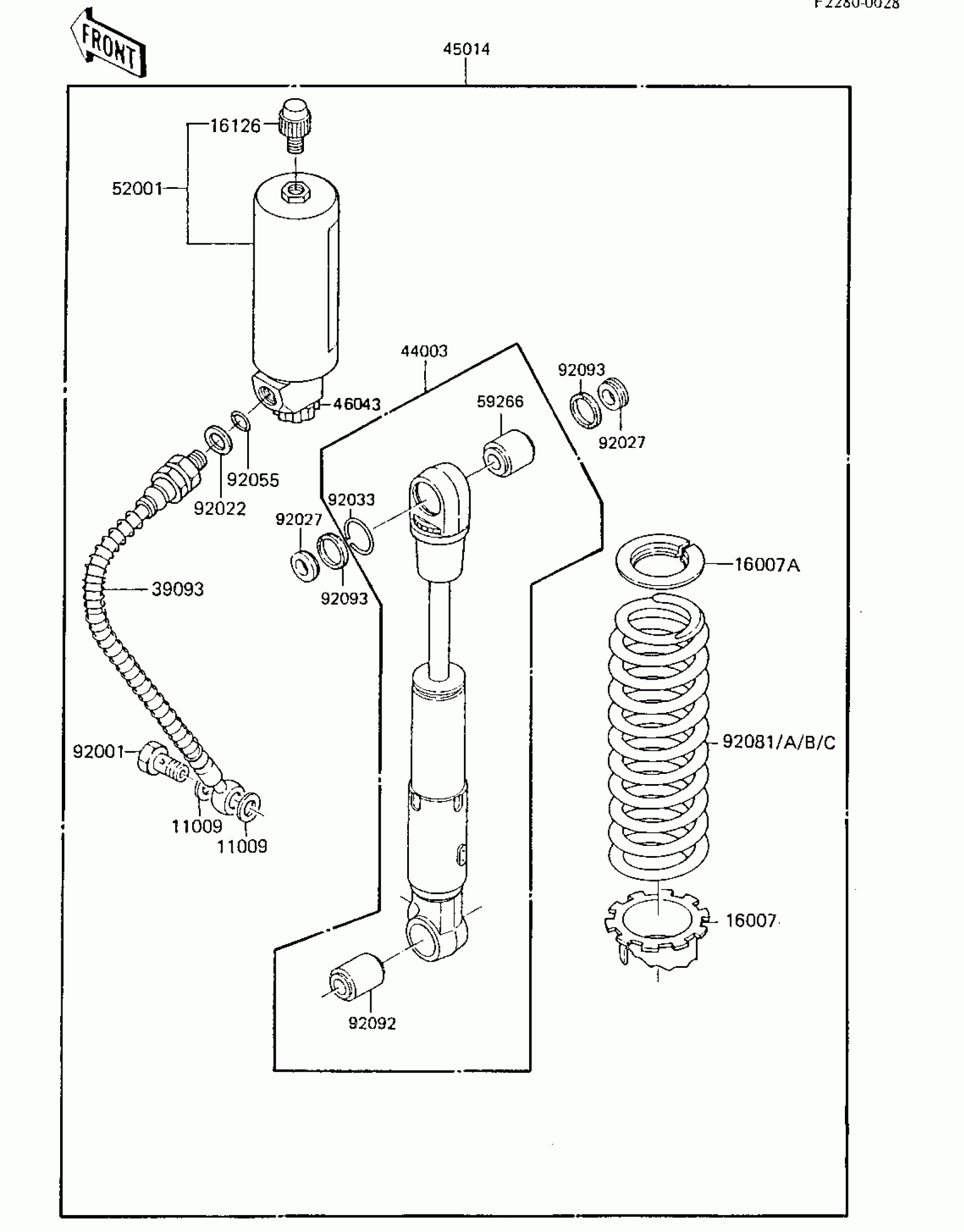

Kawasaki KX80 SHOCK ABSORBER ('85 KX80-E3) Diagram

Description

Price

11009

GASKET

44045-057

$3.86

16007

SEAT-SPRING,REAR SHOC

16007-1057

$16.49

16007A

SEAT-SPRING,REAR SHOCK,UPP

16007-1121

$11.42

16126

VALVE,AIR

16126-1118

$37.86

39093

PIPE-COMP-SUSP,SHOCKA

39093-1104

$80.51

44003

DAMPER-ASSY,REAR SHOC

44003-1562

$543.20

45014

SHOCKABSORBER

45014-1294

$944.62

46043

KNOB-ASSY,OIL TANK

46043-1052

$10.07

52001

TANK-OIL,REAR SHOCK

52001-1057

$171.37

59266

JOINT-BALL

59266-1053

$119.17

92001

BOLT,BANJO

92001-1752

Unavailable

92022

WASHER,REAR SHOCK

92022-1297

Unavailable

92027

COLLAR

92027-1862

$19.49

92033

RING-SNAP

92033-1090

$4.76

92055

"0" RING

92055-1099

Unavailable

92081

SPRING,SHOCKABSORBER,

92081-1534

$148.85

92081A

SPRING,SHOCKABSORBER,

92081-1535

$148.59

92081B

SPRING,SHOCKABSORBER,

92081-1815

$110.32

92081C

SPRING

92081-1832

$131.33

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1016

$30.51

92093

SEAL

92093-1183

$15.59
