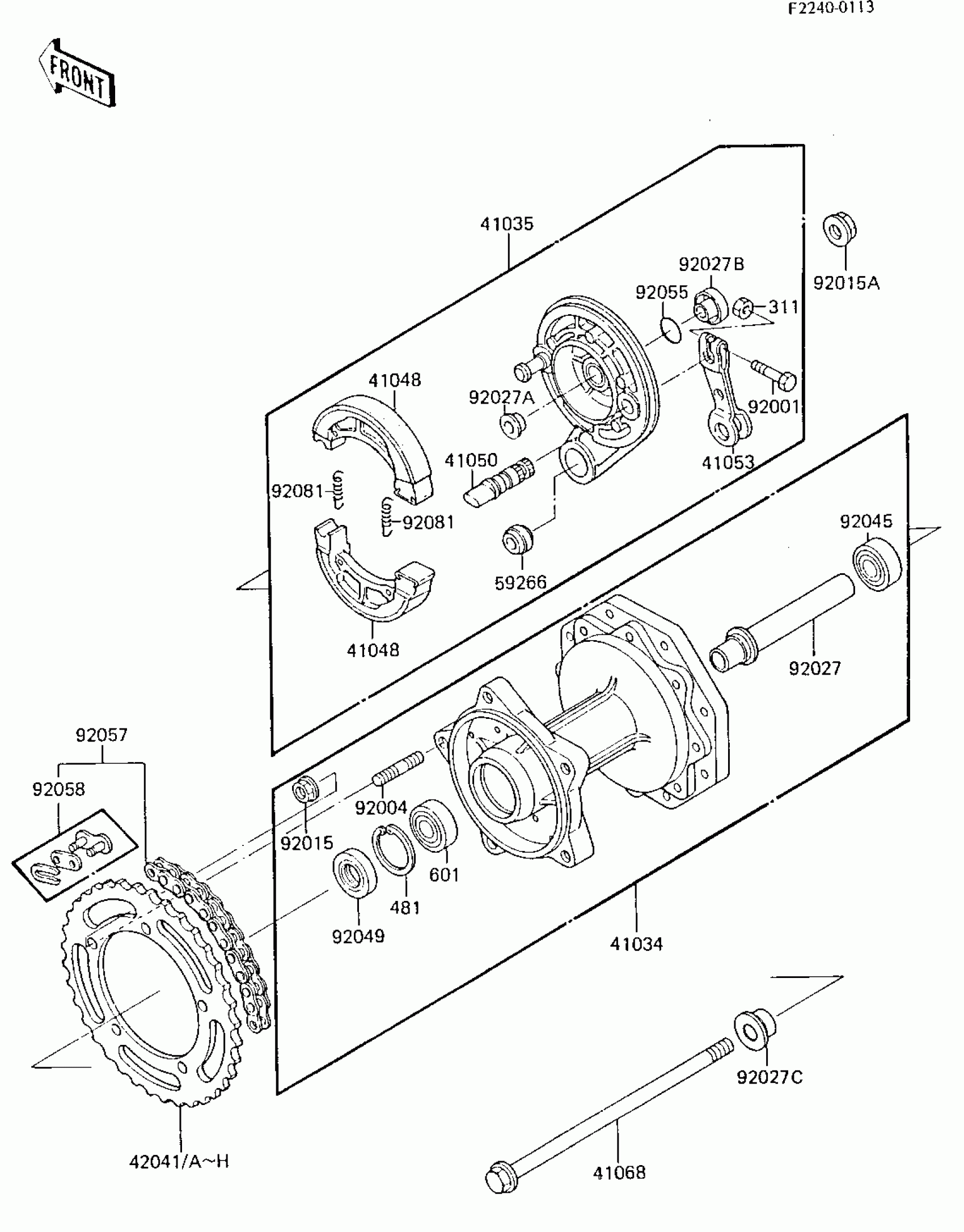

Kawasaki KX80 REAR HUB/BRAKE/CHAIN ('85 KX80-E3) Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

41034-1068

$398.42

41035

PANEL-ASSY-BRAKE,RR

41035-1169

$357.98

41048

SHOE-BRAKE

41048-1083

$20.41

41050

CAM-BRAKE,RR

41050-1028

$32.49

41053

LEVER-BRAKE CAM,RR

41053-1057

$68.72

41068

AXLE,RR

41068-1177

$46.46

42041

SPROCKET-HUB,44T

42041-1114

$68.50

42041A

SPROCKET-HUB,43T

42041-1116

$68.50

42041B

SPROCKET-HUB,45T

42041-1117

$68.50

42041C

SPROCKET-HUB,49T

42041-1121

$76.48

42041

SPROCKET-HUB,48T

42041-1122

$68.50

42041E

SPROCKET-HUB,50T

42041-1123

$76.48

42041F

SPROCKET-HUB,47T

42041-1129

$76.48

42041G

SPROCKET-HUB,46T

42041-1178

$76.48

42041H

SPROCKET-HUB,51T

42041-1181

$76.48

59266

JOINT-BALL,BRAKE PANE

59266-1013

$40.14

92001

BOLT,5X25

92001-1695

$4.17

92004

STUD,8X16

92004-1053

Unavailable

92015

NUT,FLANGED,8MM

92015-1022

$0.53

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92027

COLLAR,REAR DRUM,L=115

92027-1471

Unavailable

92027A

COLLAR,BRAKE PANEL,LH

92027-1541

Unavailable

92027B

COLLAR,BRAKE PANEL,RH

92027-1542

$34.34

92027C

COLLAR,REAR AXLE,14.5

92027-1813

$29.63

92045

BEARING-BALL,TMB201LLUC3/2A

92045-1062

$24.47

92049

SEAL-OIL,DD20377

92049-1096

$15.88

92055

"O" RING

92055-104

Unavailable

92057

CHAIN,DRIVE DID420MX1

92057-1173

$115.04

92058

JOINT-CHAIN

92058-1053

Unavailable

92081

SPRING,BRAKE SHOE

92081-1766

$6.39

311

NUT-HEX

311G0500

$3.85

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.37

601

BEARING-BALL,#6301UUC3

601B6301UU

$23.98
