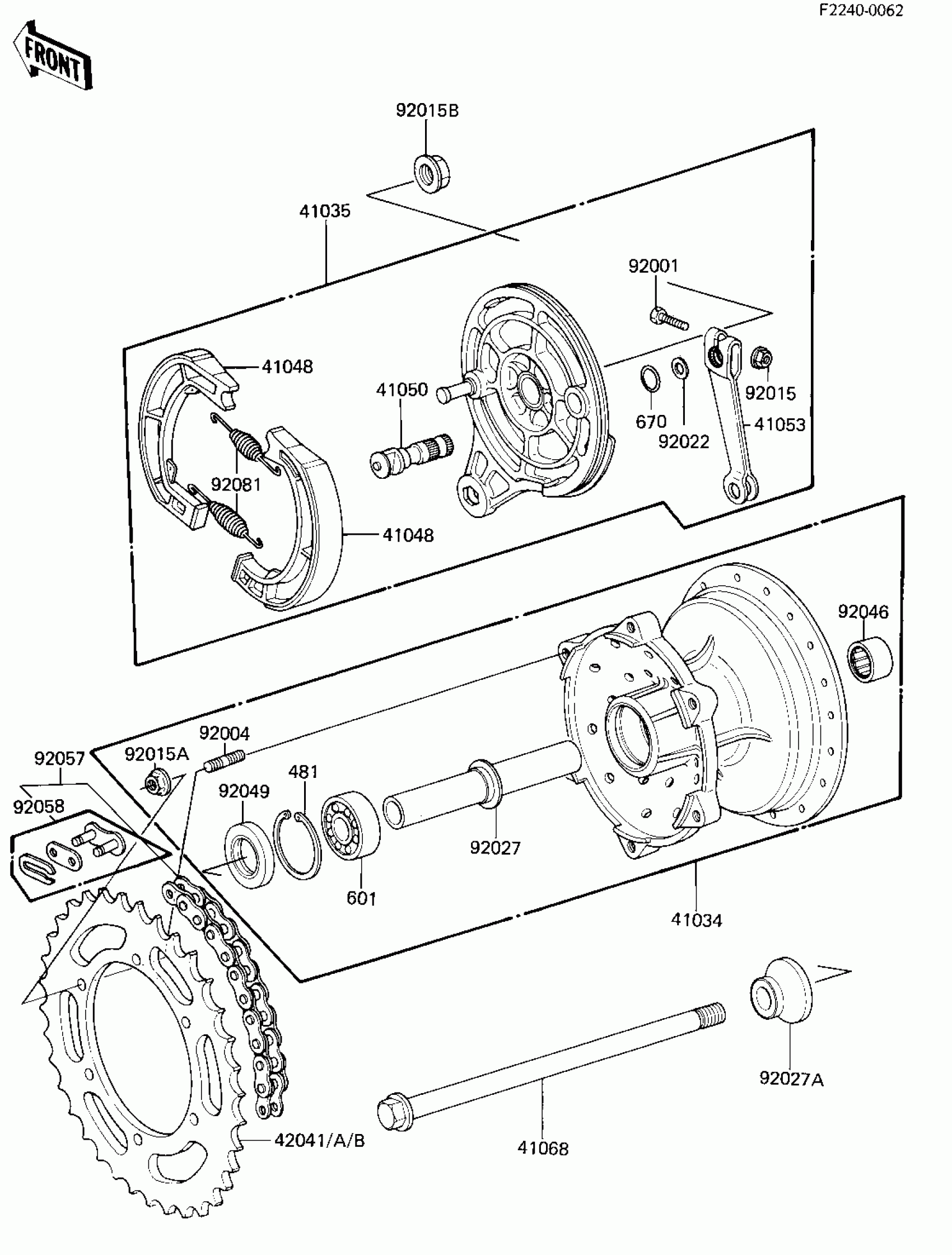

Kawasaki KX80 REAR HUB/BRAKE/CHAIN ('82 KX80-C2) Diagram

Description

Price

41034

DRUM-ASSY,RR BRK

41034-1054

$242.29

41035

PANEL-ASY,RR BRK

41035-1084

$159.90

41048

SHOE,BRAKE

41048-1021

Unavailable

41050

CAM-BRAKE

41050-1021

$20.42

41053

LEVER,BRAKE CAM,REAR

41053-1010

$43.56

41068

AXLE,REAR,12X211

41068-1036

$55.67

42041

REAR SPROCKET,48T

42041-1016

Unavailable

42041A

REAR SPROCKET,50T

42041-1034

$95.63

42041B

REAR SPROCKET,52T

42041-1035

$95.63

92001

BOLT,HEX HEAD,6X30

92001-1135

Unavailable

92004

STUD,8X17

92004-1015

Unavailable

92015

NUT,6MM

41072-007

$3.12

92015A

NUT,FLANGED,8MM

92015-1022

$0.53

92015B

NUT,FLANGED,12MM

92015-1156

Unavailable

92022

WASHER

92022-257

Unavailable

92027

COLLAR,L=110

92027-1379

$57.92

92027A

COLLAR,REAR AXLE,LH

92027-1381

$14.88

92046

BEARING-NEEDLE,RNA491

92046-1040

$30.46

92049

SEAL-OIL,SC25376

92050-013

$11.26

92057

CHAIN ASSY,EK420SHG

92057-1102

$106.80

92058

JOINT,CHAIN

92058-1016

$7.68

92081

SPRING,BRAKE SHOE

92081-1766

$6.39

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.37

601

BEARING BALL #6301

601B6301

Unavailable

670

O RING,12MM

670B2012

$2.58
