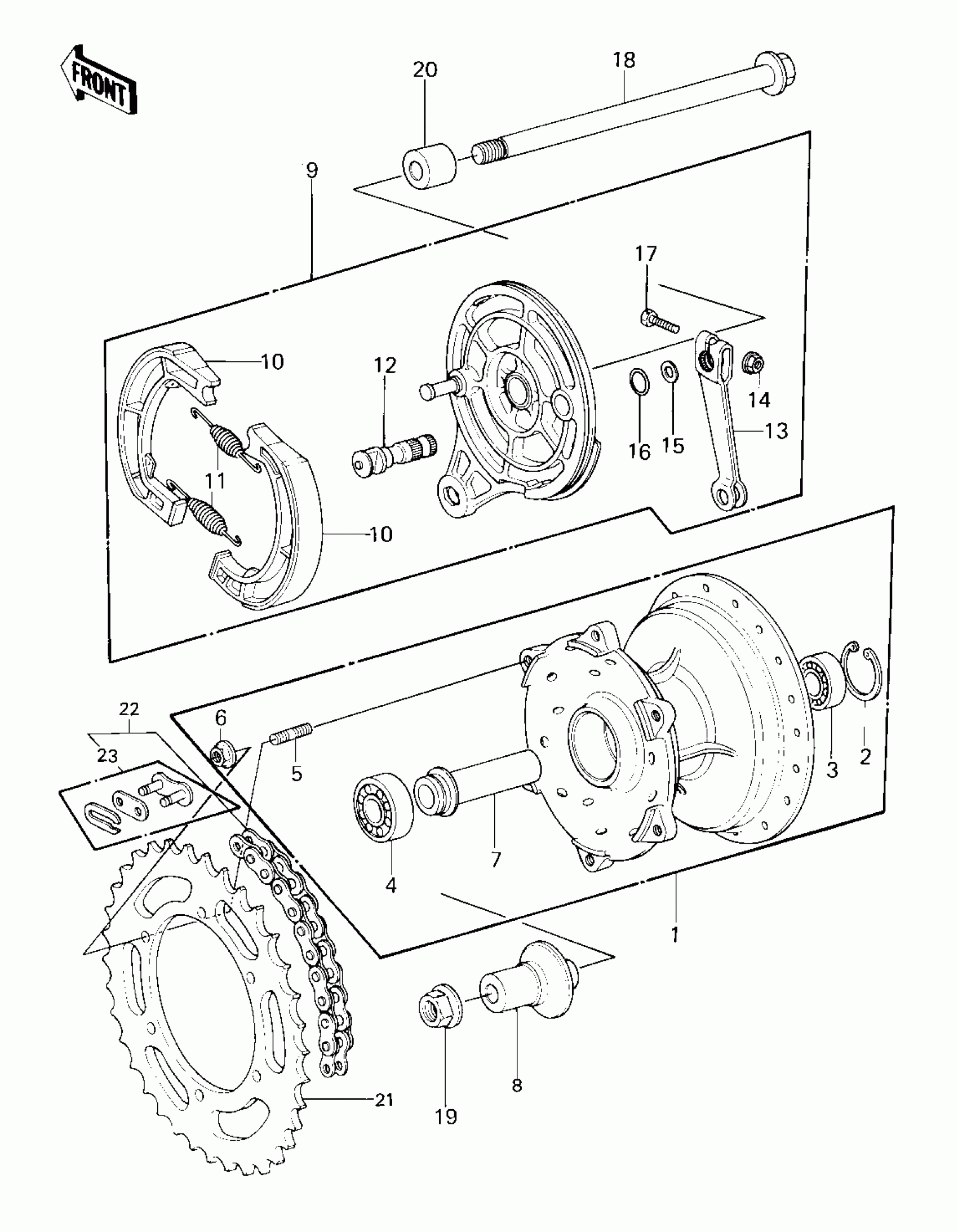

Kawasaki KX80 REAR HUB/BRAKE/CHAIN ('81 KX80-C1) Diagram

#

Description
Price

1

DRUM-ASSY,RR BRK

41034-1044

$266.30

2

CIRCLIP-TYPE-C,32MM

481J3200

$2.12

3

BEARING-BALL,#6201LUC3/2A

601B6201U

$18.14

4

BEARING-BALL,#6203LUC3/2A

601B6203U

$34.89

5

STUD,8X17

92004-1015

Unavailable

6

NUT,FLANGED,8MM

92015-1022

$0.53

7

.COLLAR,RR BRAKE DRUM

92027-1344

$28.93

8

COLLAR,L=39

92027-1345

$22.68

9

PANEL-ASY,RR BRK

41035-1032

$181.14

10

SHOE,BRAKE

41048-1021

Unavailable

11

SPRING,BRAKE SHOE

92081-1766

$6.39

12

CAM,BRAKE,REAR

41050-1012

Unavailable

13

LEVER,BRAKE CAM,REAR

41053-1010

$43.56

14

NUT,6MM

41072-007

$3.12

15

WASHER

92022-257

Unavailable

16

O RING,12MM

670B2012

$2.58

17

BOLT,HEX HEAD,6X30

92001-1135

Unavailable

18

AXLE,REAR,12X211

41068-1036

$55.67

19

NUT,FLANGED,12MM

92015-1156

Unavailable

19

NUT,FLANGED,12MM

92015-1156

Unavailable

20

COLLAR,REAR AXLE

92027-1247

$7.29

21

REAR SPROCKET,50T

42041-1034

$95.63

21

REAR SPROCKET,48T

42041-1016

Unavailable

21

REAR SPROCKET,52T

42041-1035

$95.63

21

SPROCKET,REAR,54T

42041-1072

$50.56

22

CHAIN ASSY,EK420SHG

92057-1102

$106.80

23

JOINT,CHAIN

92058-1016

$7.68
