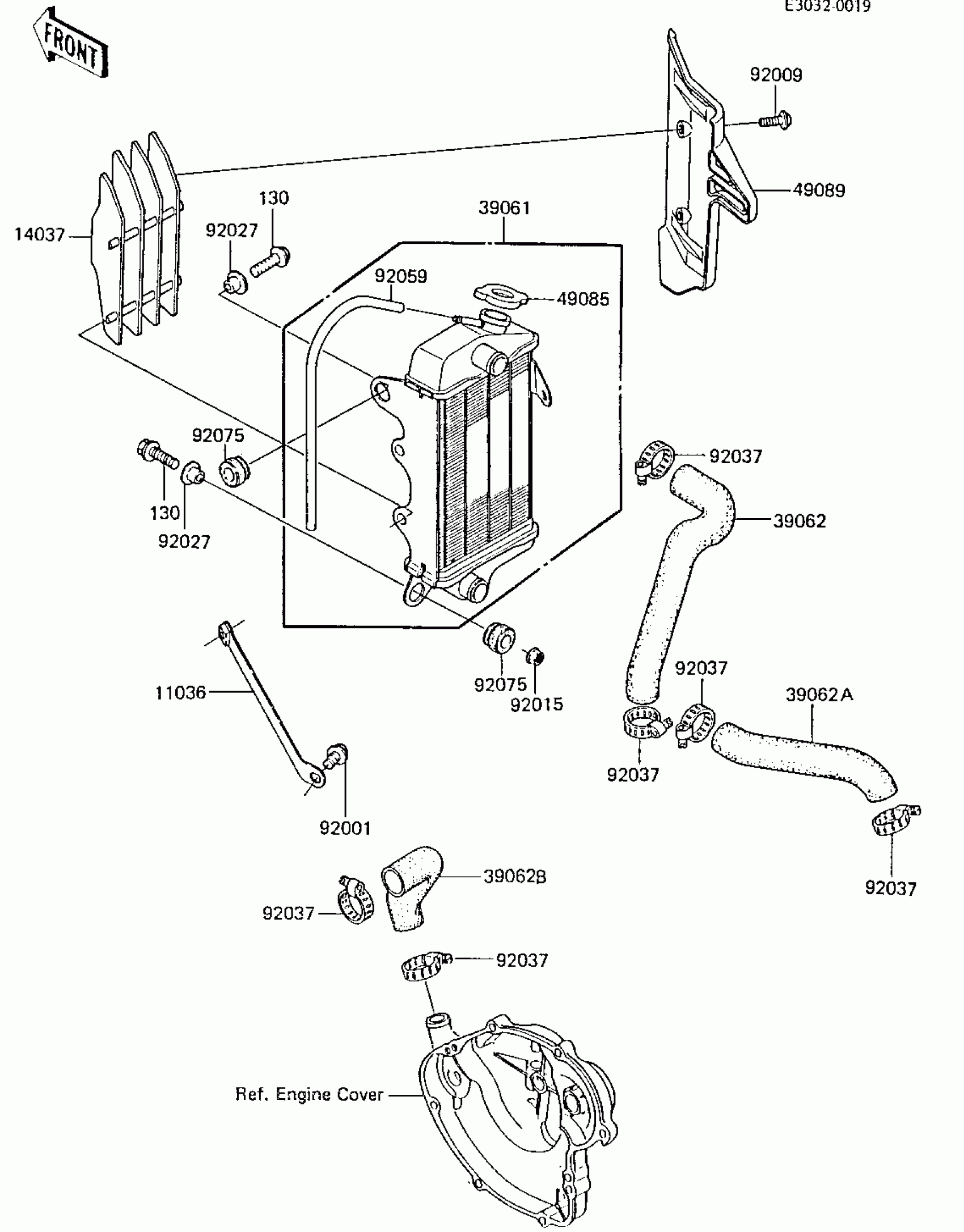

Kawasaki KX80 RADIATOR ('85 KX80-E3) Diagram

Description

Price

11036

BRACKET-A,RADIATOR

11036-1736

Unavailable

14037

SCREEN,RH,EBONY

14037-1121-6C

$23.36

39061

RADIATOR-ASSY

39061-1062

$522.36

39062

HOSE-COOLING,COVER-CL

39062-1016

Unavailable

39062A

HOSE-COOLING

39062-1051

Unavailable

39062B

HOSE-COOLING,RADIATOR

39062-1052

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1003

$33.98

49089

SHROUD-ENGINE,RH,L.GREEN

49089-1056-6W

$43.85

92001

BOLT,W/WASHER,6X12

92001-1517

Unavailable

92009

SCREW,6X14,WHITE

92009-1287

$2.10

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR,6.5X10X14.1

92027-1183

$4.37

92037

CLAMP,COOLING HOSE

92037-1589

$14.60

92059

TUBE,5X9X800

92059-1383

$7.65

92075

DAMPER

92075-1352

$5.16

130

BOLT,FLANGED,6X25

130G0625

Unavailable
