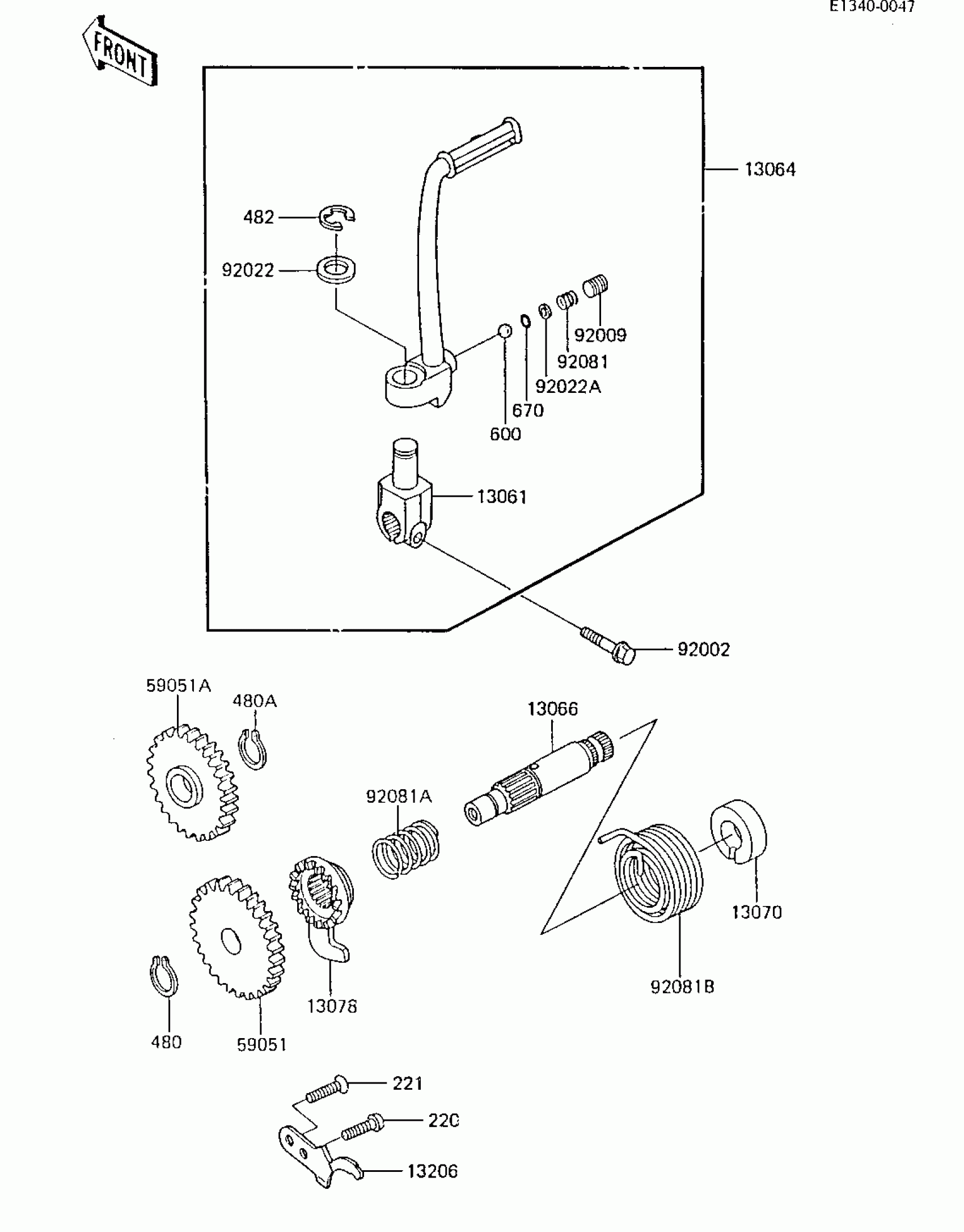

Kawasaki KX80 KICKSTARTER MECHANISM ('85 KX80-E3) Diagram

Description

Price

13061

BOSS,KICK LEVER

13061-1049

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

13064-1116

Unavailable

13066

SHAFT-KICK

13066-1055

Unavailable

13070

GUIDE,KICK SPRING

13070-1034

$9.22

13078

RATCHET

13078-1004

$60.14

13206

GUIDE-KICK

13206-1053

Unavailable

59051

GEAR-SPUR,32T

59051-1026

$52.72

59051A

GEAR-SPUR,30T

59051-1027

$66.46

92002

BOLT,6X20

92002-1237

$3.43

92009

SCREW,SOCKET,8X8

92009-1312

Unavailable

92022

WASHER,12.2X20X1.6

92022-1236

Unavailable

92022A

WASHER

92022-1481

Unavailable

92081

SPRING,KICK PEDAL

92081-020

$3.39

92081A

SPRING,RATCHET

92081-122

$6.98

92081B

SPRING,RETURN

92081-1434

$13.31

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

221

SCREW-CSK-CROS,6X18

221B0618

Unavailable

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.67

480A

CIRCLIP-TYPE-C,15MM

480J1500

$1.85

482

CIRCLIP-TYPE-E,8MM

482K8000

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.67

670

O RING,4MM

670B1504

$3.27
