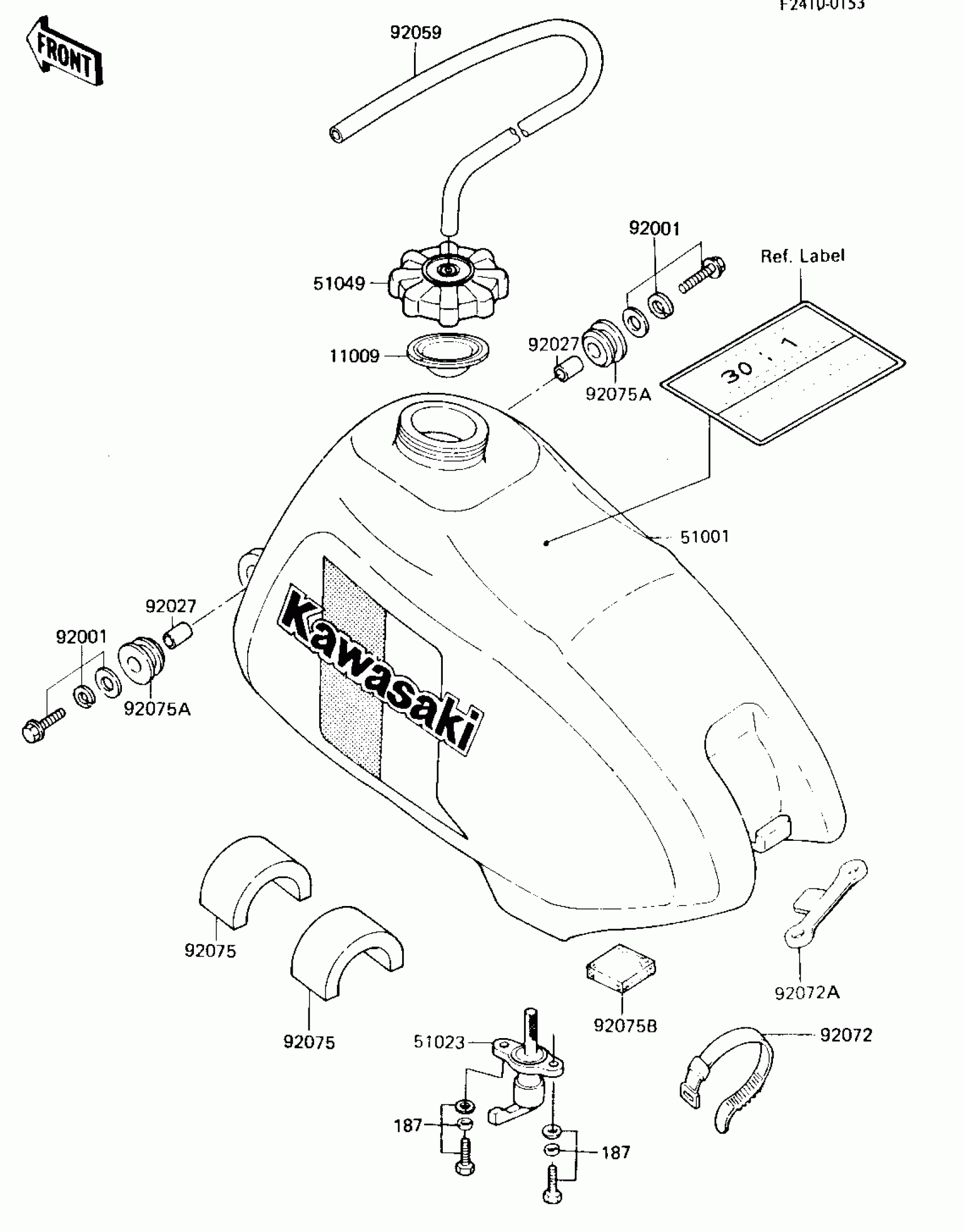

Kawasaki KX80 FUEL TANK ('84 KX80-E2) Diagram

Description

Price

11009

GASKET,FUEL TANK CAP

11009-1452

$20.94

51001

TANK-COMP-FUEL,L.GREE

51001-5379-6W

$318.55

51023

TAP-ASSY,FUEL

51023-1115

Unavailable

51049

CAP-TANK,FUEL

51049-1006

Unavailable

92001

BOLT,6X25

92001-1852

$3.49

92027

COLLAR,6.8X10X14.5

92027-156

$3.97

92059

TUBE,5X9X350

92059-1265

Unavailable

92072

BAND,L=218

92072-032

$3.97

92072A

BAND,FUEL TANK

92072-1056

$7.97

92075

DAMPER,FUEL TANK

92075-1382

$26.48

92075A

DAMPER,FUEL TANK

92075-1424

$4.85

92075B

DAMPER,FUEL TANK,RR

92075-1483

$10.73

187

BOLT-UPSET-WSP

187B0616

Unavailable
