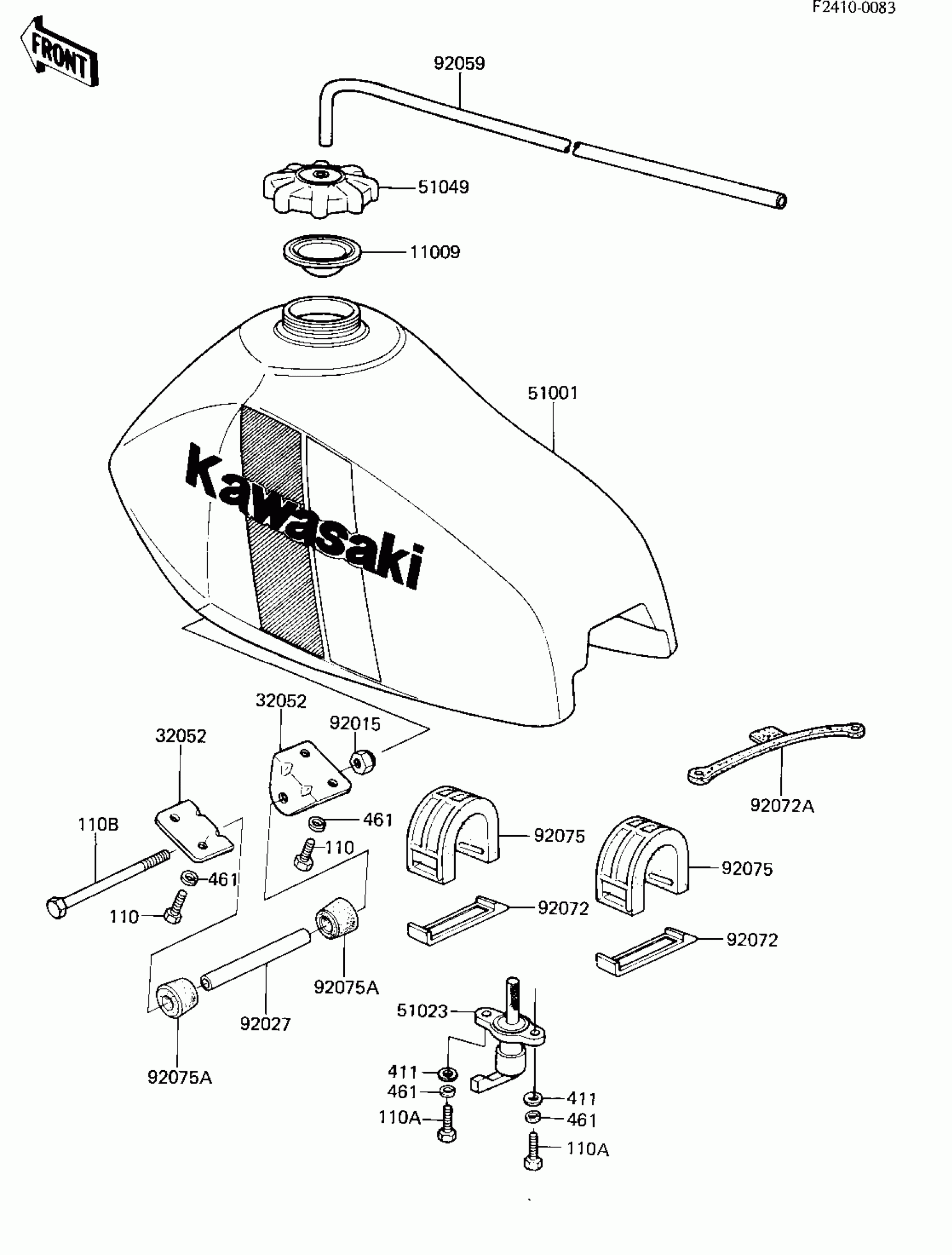

Kawasaki KX80 FUEL TANK ('82 KX80-C2) Diagram

#

Description

Price

11009

GASKET,FUEL TANK CAP

11009-1452

$20.94

32052

BRACKET,FUEL TANK

32052-1051

Unavailable

51001

TANK-FUEL,L.GREEN

51001-1056-6W

Unavailable

51023

TAP-ASSY,FUEL

51023-1115

Unavailable

51049

CAP-TANK,FUEL

51049-1006

Unavailable

92015

NUT,LOCK,6MM

92019-008

$3.36

92027

COLLAR,FUEL TANK

92027-1305

Unavailable

92059

TUBE,5X5.6X280

92059-1109

Unavailable

92072

BAND,FUEL TANK

92072-1013

Unavailable

92072A

BAND,FUEL TANK

92072-1056

$7.97

92075

DAMPER,FUEL TANK

92075-1151

$18.36

92075A

DAMPER,FUEL TANK FITT

92075-1220

Unavailable

110

BOLT,6X10

112G0610

Unavailable

110A

BOLT,6X10

112G0610

Unavailable

110B

BOLT 6X90

110G0690

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
