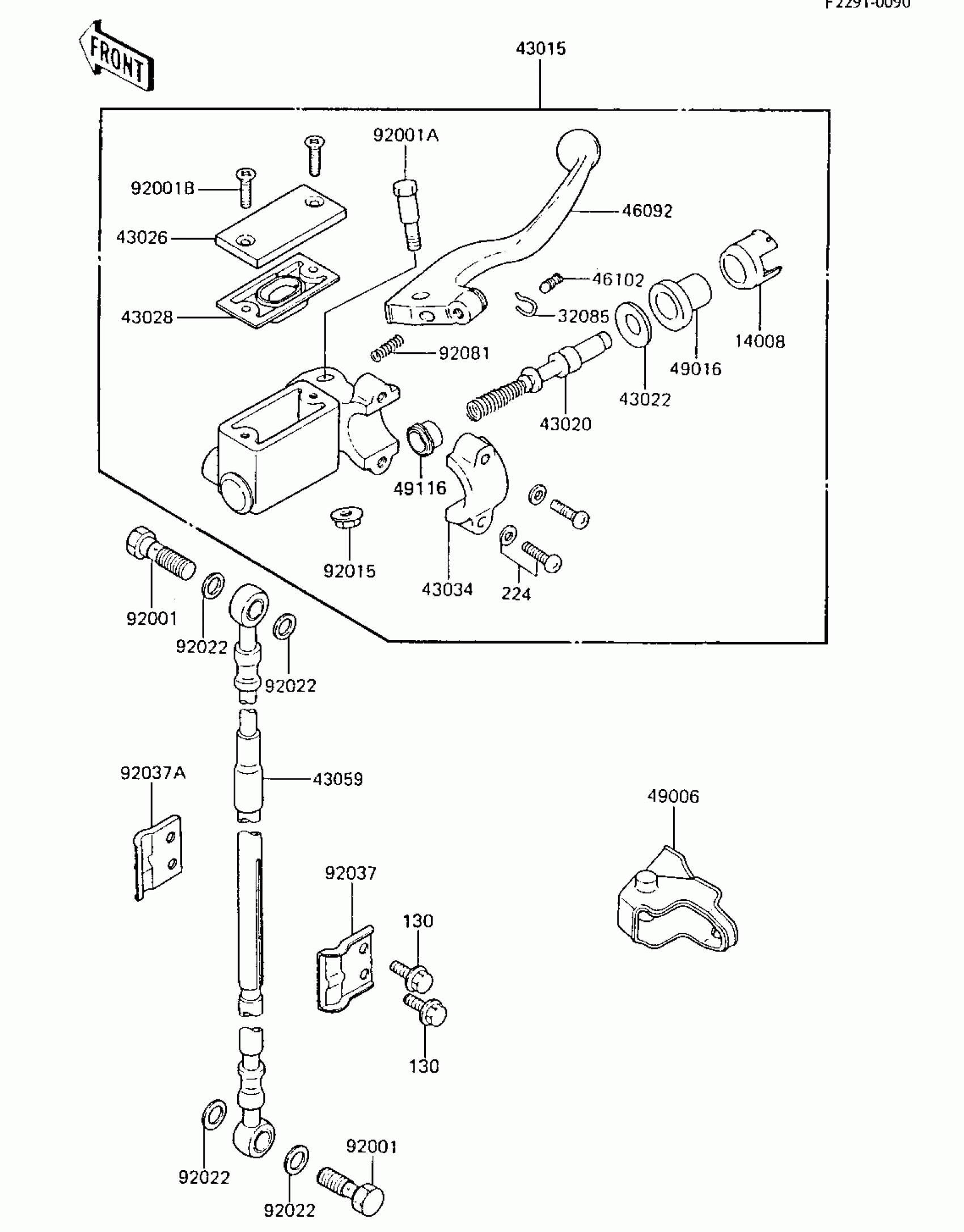

Kawasaki KX80 FRONT MASTER CYLINDER ('85 KX80-E3) Diagram

Description

Price

14008

LINER

14008-1030

Unavailable

32085

STOPPER,BRAKE LEVER ROD

32085-1087

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1281

Unavailable

43020

PISTON-COMP-BRAKE

43020-1021

$67.26

43022

STOPPER-BRAKE

43022-1008

Unavailable

43026

CAP-BRAKE

43026-1019

Unavailable

43028

DIAPHRAGM

43028-1030

Unavailable

43034

HOLDER-BRAKE

43034-1012

Unavailable

43059

HOSE-BRAKE,L=1080

43059-1253

$173.56

46092

LEVER-GRIP,BRAKE

46092-1108

Unavailable

46102

ROD,BRAKE LEVER ADJUSTER

46102-1120

Unavailable

49006

BOOT,BRAKE LEVER

49006-1090

Unavailable

49016

COVER-SEAL

49016-1035

Unavailable

49116

VALVE-ASSY,MASTER CYLINDER

49116-1057

Unavailable

92001

BOLT,OIL,L=23

92002-1888

$4.35

92001A

BOLT,6X37.3,BLACK

92001-1512

$9.97

92001B

SCREW-CSK-CROS,4X10,BLACK

92001-1532

Unavailable

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$1.81

92037

CLAMP,BRAKE HOSE,OUTSIDE

92037-1362

$5.84

92037A

CLAMP,BRAKE HOSE,INSIDE

92037-1363

$5.84

92081

SPRING,BRAKE LEVER

92081-1428

Unavailable

130

BOLT-FLANGED,6X16

130G0616

Unavailable

224

SCREW-PAN-WP-CROS

224B0625

Unavailable
