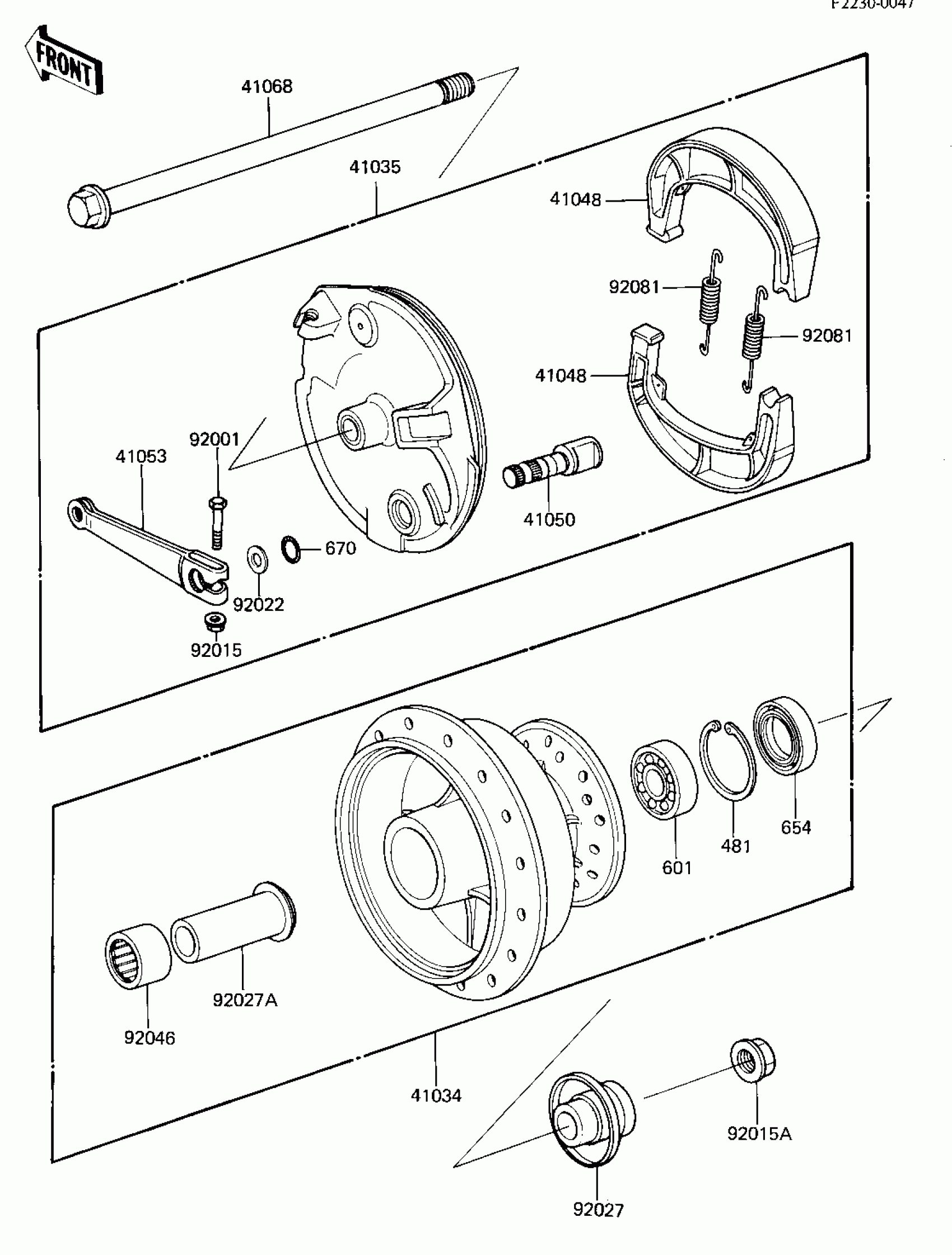

Kawasaki KX80 FRONT HUB/BRAKE ('82 KX80-C2) Diagram

Description

Price

41034

DRUM-ASSY,FR BRK

41034-1053

$249.19

41035

PANEL-ASY,FR BRK

41035-1085

$145.22

41048

SHOE,BRAKE

41048-1021

Unavailable

41050

CAM,BRAKE,FRONT

41050-1009

Unavailable

41053

LEVER,BRAKE CAM,FRONT

41053-1011

Unavailable

41068

AXLE,FRONT

41068-1011

Unavailable

92001

BOLT,HEX HEAD,6X30

92001-1135

Unavailable

92015

NUT,6MM

41072-007

$3.12

92015A

NUT,FLANGED,10MM

92015-1415

$3.72

92022

WASHER

92022-257

Unavailable

92027

COLLAR,FRONT AXLE

92027-1094

Unavailable

92027A

COLLAR,L=47

92027-1378

$12.75

92046

BEARING-NEEDLE,RNA490

92046-1039

$45.08

92081

SPRING,BRAKE SHOE

92081-1766

$6.39

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

601

BEARING,BALL,#6300

601B6300

Unavailable

654

OIL SEAL,20X35X7

654A203507

$10.80

670

O RING,12MM

670B2012

$2.58
