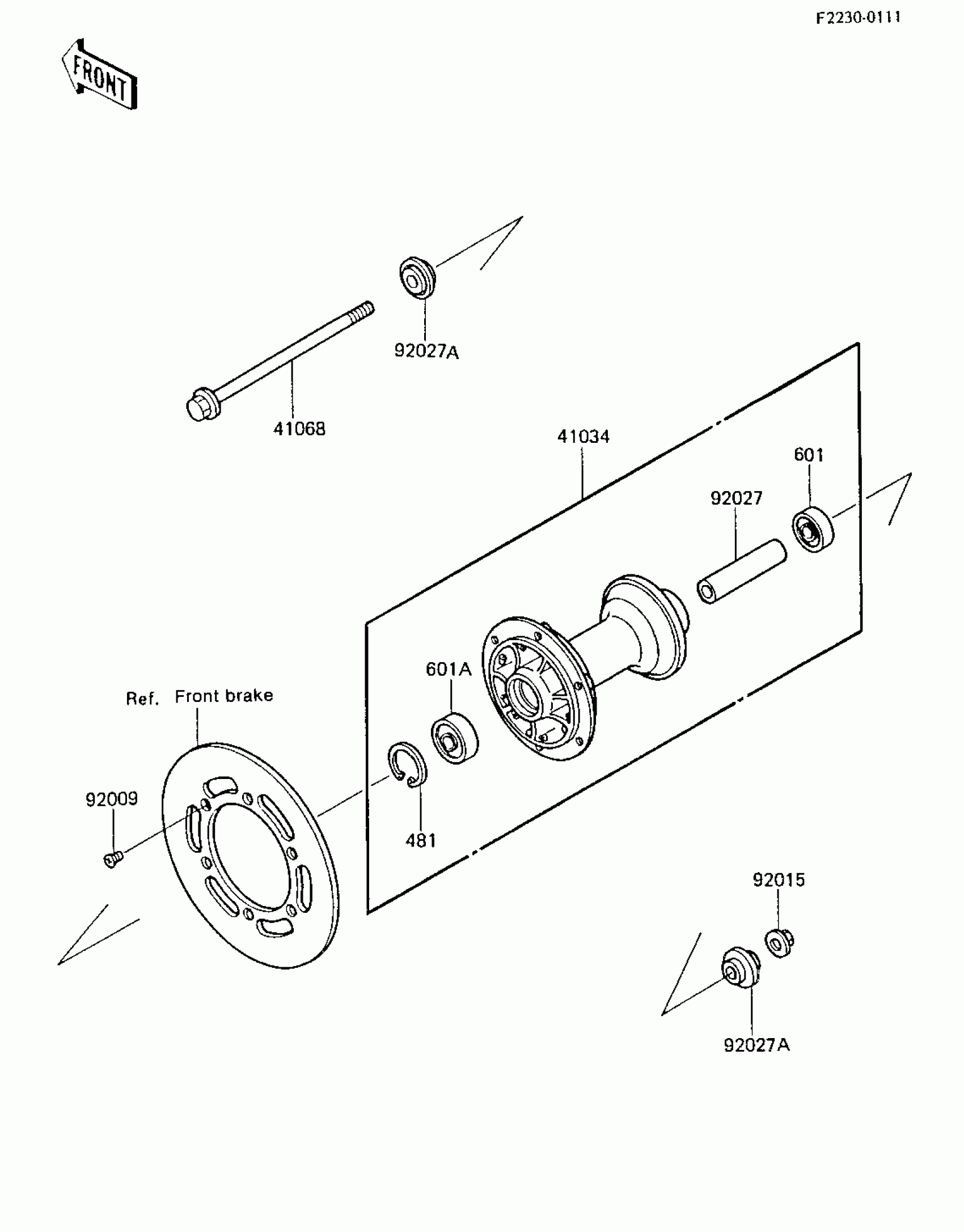

Kawasaki KX80 FRONT HUB ('85 KX80-E3) Diagram

#

Description
Price

41034

DRUM-ASSY,FRONT BRAKE

41034-1111

$170.47

41068

AXLE,FR,L=193

41068-1128

$26.80

92009

SCREW,6X10

92009-1375

$3.53

92015

NUT,FLANGED,10MM

92015-1415

$3.72

92027

COLLAR,FRONT DRUM,L=8

92027-1755

$31.71

92027A

COLLAR,FRONT AXLE,L=6

92027-1756

$19.59

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

601

BEARING-BALL,#6200UUC3

601B6200UU

$17.83

601A

BEARING-BALL,#6300UUC3

601B6300UU

$23.41
