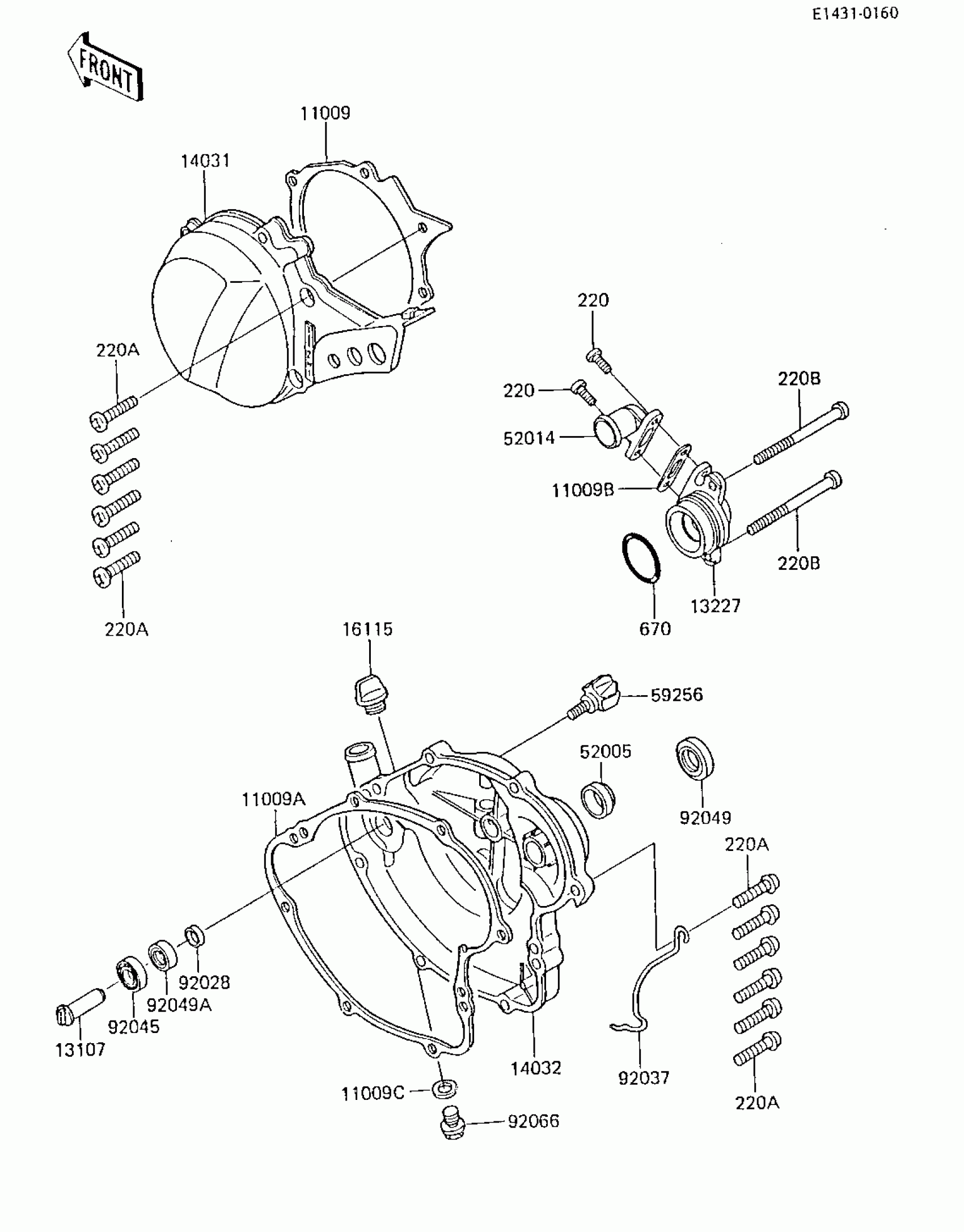

Kawasaki KX80 ENGINE COVERS/WATER PUMP ('85 KX80-E3) Diagram

Description

Price

11009

GASKET,GENERATOR COVER

11009-1974

$17.53

11009A

GASKET,CLUTCH COVER

11009-1976

$23.46

11009B

GASKET,ELBOW

11009-1952

$4.85

11009C

GASKET,10.5X16X1

92065-058

$3.16

13107

SHAFT,WATER PUMP

13107-1123

$45.84

13227

HOUSING,WATER PUMP

13227-1053

Unavailable

14031

COVER-GENERATOR

14031-1185

Unavailable

14032

COVER-CLUTCH

14032-1196

Unavailable

16115

CAP-OIL FILLER

16115-018

$8.38

52005

GAUGE,OIL LEVEL

52005-1055

$11.67

52014

ELBOW

52014-5001

Unavailable

59256

IMPELLER,WATER PUMP

59256-1052

Unavailable

92028

BUSHING

92028-1317

Unavailable

92037

CLAMP,TUBE

92037-1236

$10.25

92045

BEARING-BALL

92045-1212

$9.80

92049

SEAL-OIL,SB16244

92049-002

$7.04

92049A

SEAL-OIL,MHSD8X18X10J-1

92049-1366

$14.11

92066

PLUG,DRAIN

92066-1241

$5.39

220

SCREW-PAN-CROS

220C0514

$1.54

220A

SCREW-PAN-CROS,6X25,B

220C0625

Unavailable

220B

SCREW-PAN-CROS

220C0675

Unavailable

670

O RING,39MM

670B3039

$5.12
