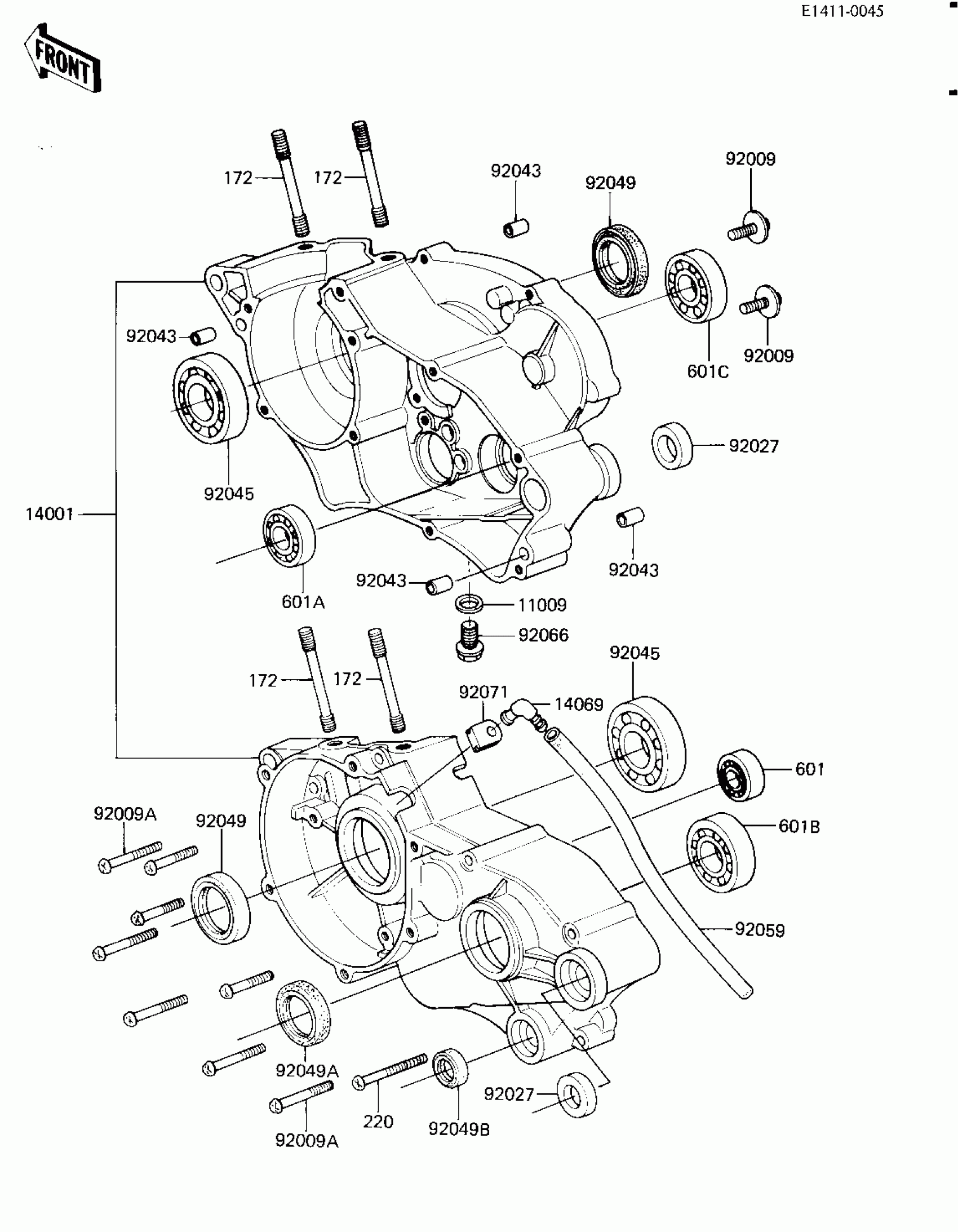

Kawasaki KX80 CRANKCASE ('82 KX80-C2) Diagram

Description

Price

11009

GASKET,10.5X16X1

92065-058

$3.16

14001

SET-CRANKCASE

14001-5159

Unavailable

14069

BREATHER ASSY

14069-1001

$22.77

92009

SCREW,6X15

92009-1103

Unavailable

92009A

SCREW-PAN-CROS,6X35,B

220C0635

$4.75

92027

COLLAR

92027-1281

$8.85

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92045

BEARING,BALL

92045-1006

Unavailable

92049

OIL SEAL,TBJ-20407

92049-1065

$29.18

92049A

SEAL-OIL,SC25376

92050-013

$11.26

92049B

SEAL-OIL,TB13225.5

92051-005

$6.16

92059

TUBE,6X9X750

92059-1372

$14.65

92066

PLUG,DRAIN

92066-1241

$5.39

92071

GROMMET,BREATHER

92071-042

$3.39

172

STUD-8X110

172G08110

Unavailable

220

SCREW-PAN-CROS,6X60

220B0660

Unavailable

601

BEARING-BALL,6001C3ML01

92045-1235

$12.85

601A

BEARING BALL #6002

601B6002

Unavailable

601B

BEARING-BALL,#6004C3

601B6004

$9.84

601C

BEARING-BALL,#6203C3

601B6203

$11.12
