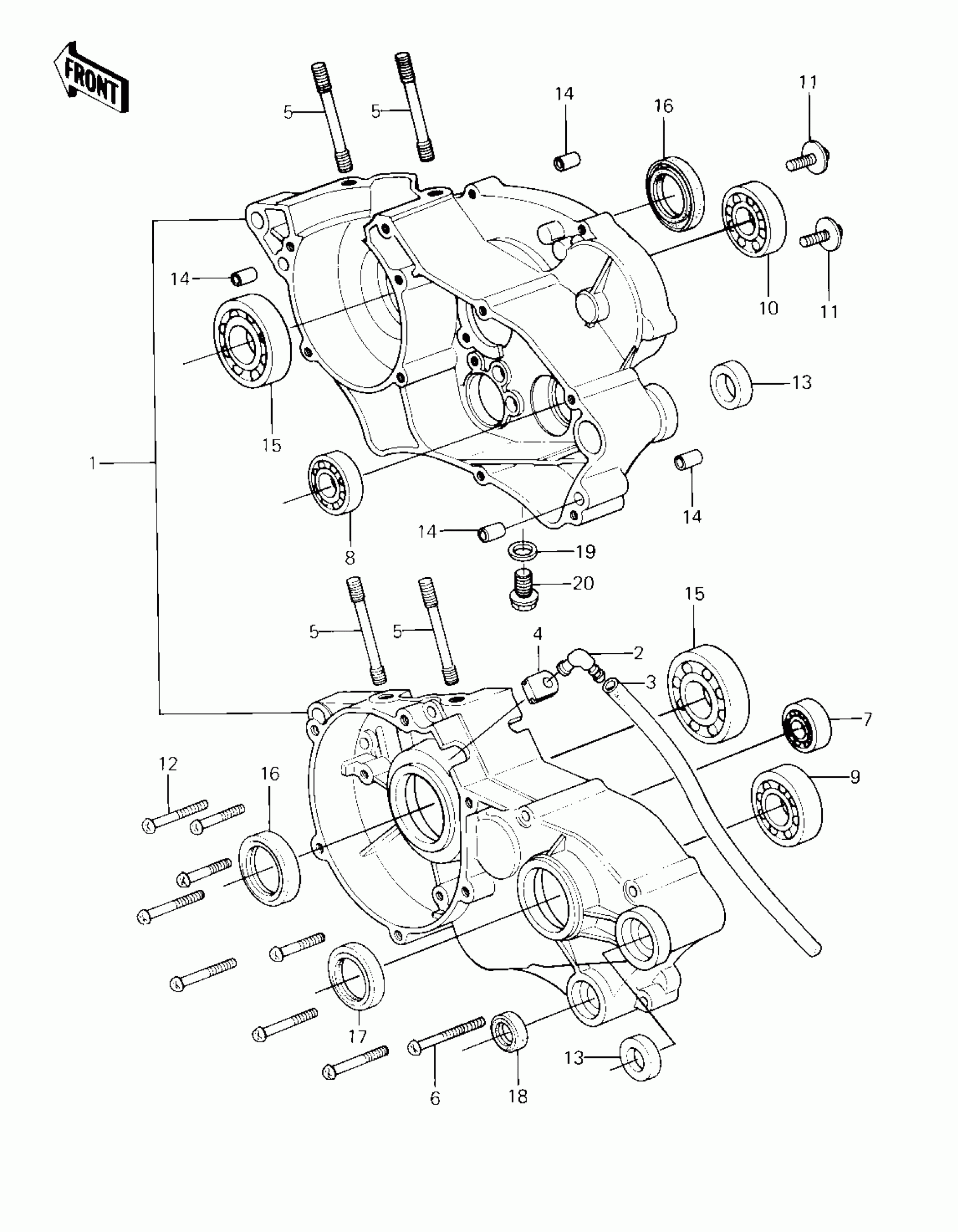

Kawasaki KX80 CRANKCASE ('81 KX80-C1) Diagram

#

Description
Price

1

CRANKCASE SET

14001-5075

Unavailable

2

BREATHER ASSY

14069-1001

$22.77

3

TUBE,6X9X750

92059-1372

$14.65

4

GROMMET,BREATHER

92071-042

$3.39

5

STUD-8X110

172G08110

Unavailable

6

SCREW-PAN-CROS,6X60

220B0660

Unavailable

7

BEARING-BALL,6001C3ML01

92045-1235

$12.85

8

BEARING BALL #6002

601B6002

Unavailable

9

BEARING-BALL,#6004C3

601B6004

$9.84

10

BEARING-BALL,#6203C3

601B6203

$11.12

11

SCREW,6X15

92009-1103

Unavailable

12

SCREW-PAN-CROS,6X35,B

220C0635

$4.75

13

COLLAR

92027-1281

$8.85

14

PIN,DOWEL,6.3X8X14

92042-007

$4.51

15

BEARING,BALL

92045-1006

Unavailable

16

OIL SEAL,TBJ-20407

92049-1065

$29.18

17

SEAL-OIL,SC25376

92050-013

$11.26

18

SEAL-OIL,TB13225.5

92051-005

$6.16

19

GASKET,10.5X16X1

92065-058

$3.16

20

PLUG,DRAIN

92066-1241

$5.39
