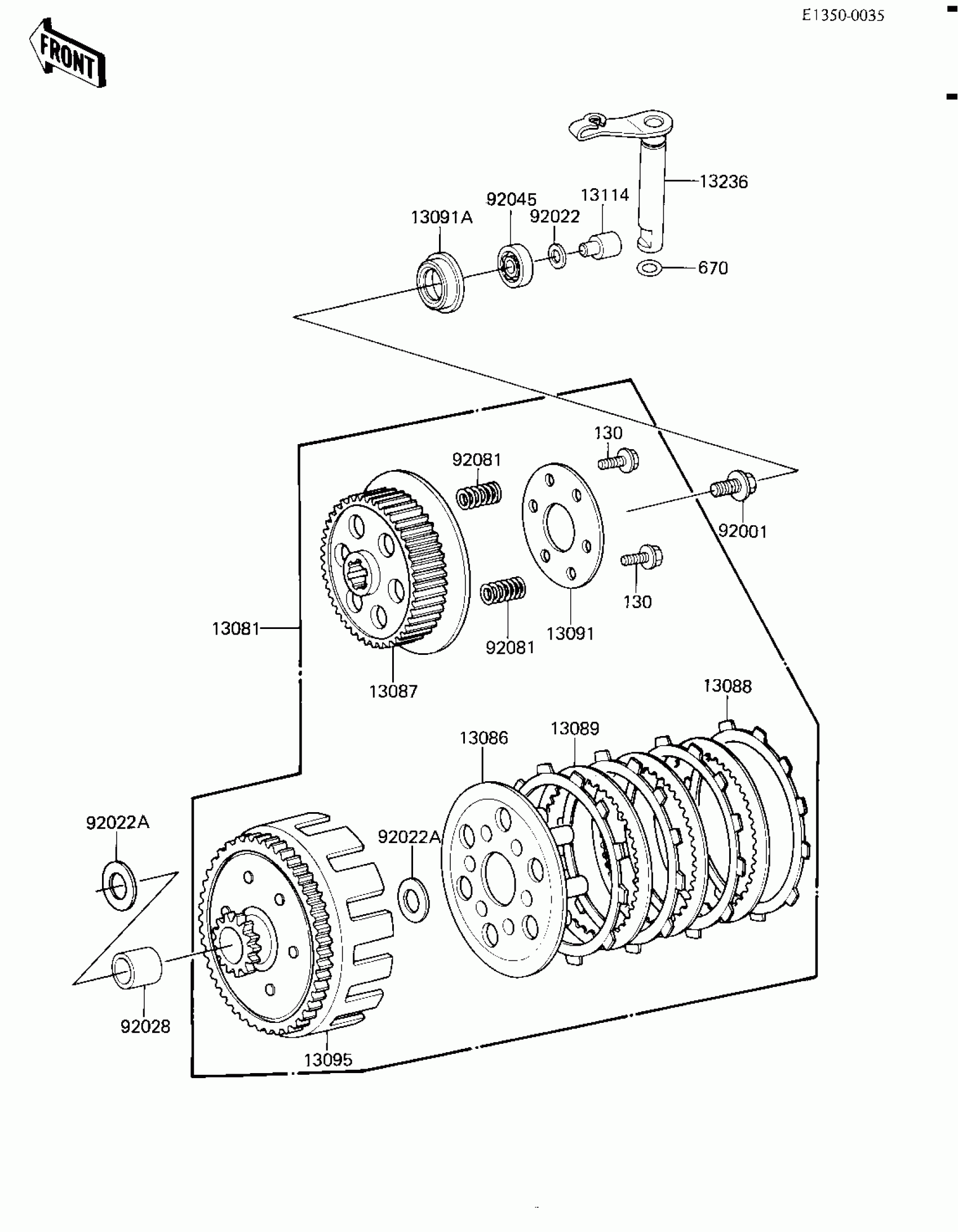

Kawasaki KX80 CLUTCH ('82 KX80-C2) Diagram

Description

Price

13081

CLUTCH-ASSY

13081-1078

Unavailable

13086

WHEEL-CLUTCH

13086-1002

$45.84

13087

HUB-CLUTCH

13087-1051

$65.87

13088

PLATE-FRICTION

13088-1010

$10.86

13089

PLATE-CLUTCH,STEEL

13089-1009

$11.12

13091

HOLDER,CLUTCH SPRING

13091-1115

$17.20

13091A

HOLDER,CLUTCH PUSHER

13091-1133

$11.12

13095

HOUSING,CLUTCH

13095-1044

Unavailable

13114

PUSHER-CLUTCH

13114-1008

Unavailable

13236

LEVER,CLUTCH RELEASE

13236-1025

Unavailable

92001

BOLT,10X14

92001-1433

$4.97

92022A

WASHER,17.3X28X1

92022-255

$6.82

92028

BUSHING,17X22X21.1

92028-1149

Unavailable

92045

BEARING-BALL,#627

92045-026

$18.51

92081

SPRING,CLUTCH

92081-1175

$4.88

130

BOLT-FLANGED

130P0520

Unavailable

670

O RING,9MM

670B1509

$2.92
