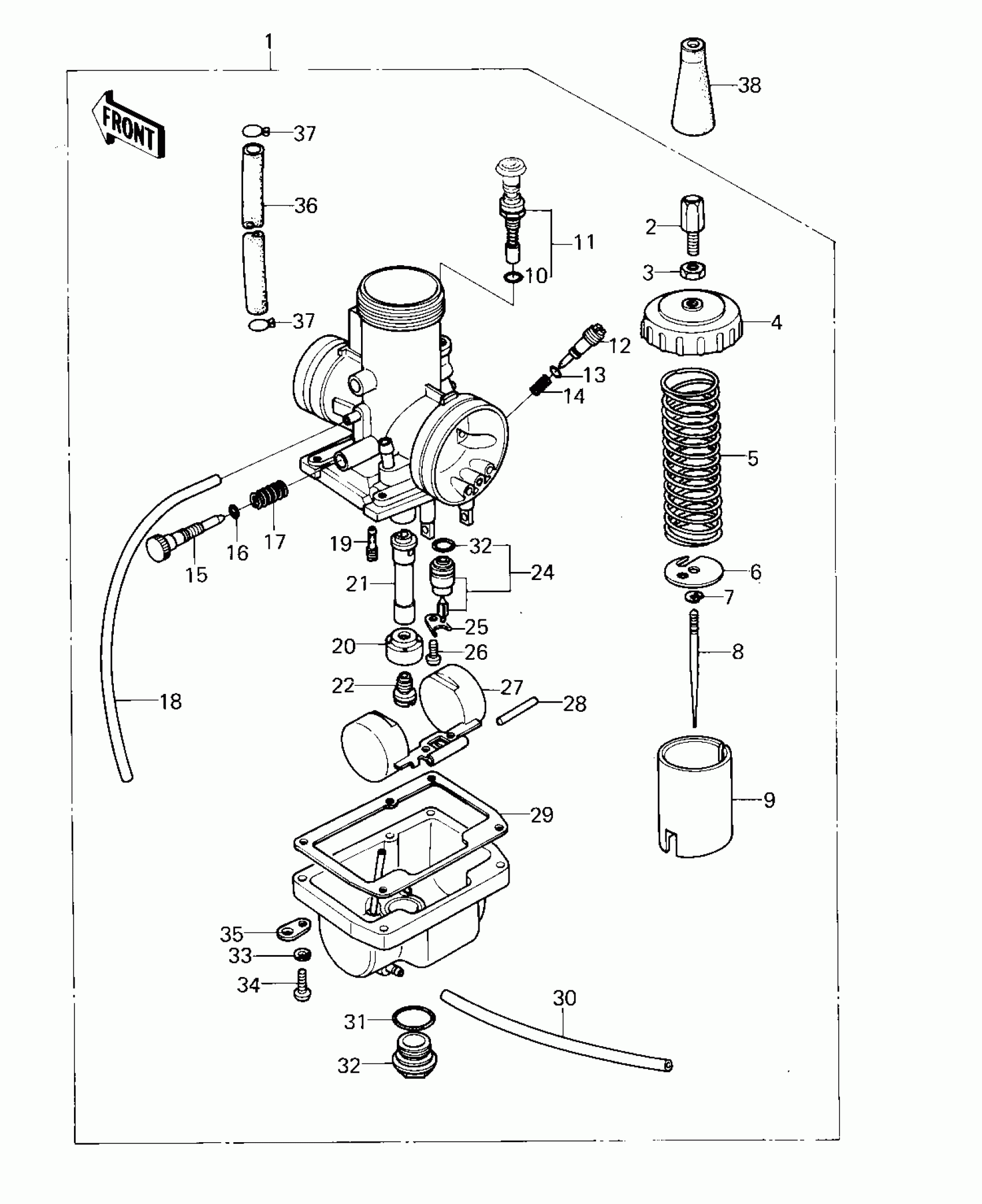

Kawasaki KX80 CARBURETOR (KX80-A2) Diagram

#

Description
Price

1

CARBURETOR

16001-1206

Unavailable

2

ADJUSTER-CABLE

16002-017

Unavailable

3

NUT,ADJUST LOCK

16003-006

$5.84

4

CAP-CHAMBER

16004-025

$33.92

5

SPRING,THROTTLE VALVE

92081-1238

$10.56

6

SEAT,THROTTLE VALVE

13169-1252

Unavailable

7

CLAMP,E-TYPE

16008-010

$8.95

8

JET NEEDLE,DH62

16009-1058

$21.61

9

VALVE,THROTTLE,#2.0

16025-1046

$67.98

10

O RING,9MM

670B1509

$2.92

11

PLUNGER ASSY,STARTER

16016-1013

Unavailable

12

SCREW,PILOT AIR

16014-1013

Unavailable

13

GASKET,"O"RING

16038-022

$5.85

14

SPRING,STOP SCREW

92081-1153

$4.39

15

SCREW,THROTTLE ADJST

16021-1012

Unavailable

16

RING-O

92055-044

$8.24

17

SPRING,THROTTLE ADJUST

92081-1152

$5.37

18

TUBE,3X5X300

92059-1755

$8.97

19

JET-PILOT NO 40

92064-024

$21.93

20

HOLDER,MAIN JET RING

16065-1033

Unavailable

21

NEEDLE JET,0-8

16017-1055

$26.63

22

MAIN JET NO 120R

92063-078

$17.31

22

JET-MAIN NO 115R

92063-076

$12.20

22

JET-MAIN NO 117.5R

92063-077

Unavailable

22

JET-MAIN,#A122.5

92063-1101

$13.73

22

MAIN JET NO 125R

92063-055

$13.73

23

RING-O

92055-1084

$3.52

24

FLOAT VALVE ASSY,2.5

16030-1013

Unavailable

25

PLATE, LOCK

13169-1190

Unavailable

26

SCREW PAN HEAD 4X8

220B0408

Unavailable

27

FLOAT

16031-1011

$61.49

28

PIN,FLOAT

16032-003

$5.95

29

GASKET,FLOAT CHAMBER

11009-1178

Unavailable

30

TUBE

92059-1135

$6.49

31

RING-O

92055-1076

Unavailable

32

COVER,MAIN JET

16049-1003

$12.03

33

WASHER SPRING 4MM

461F0400

Unavailable

34

SCREW PAN HEAD 4X16

220B0416

Unavailable

35

PLATE,TUBE CLAMP

13169-1226

Unavailable

36

HOSE,FUEL TAP DIAPHRA

92059-1023

$15.47

37

CLAMP,TUBE

92037-072

$5.74

38

BOOT,CABLE ADJUSTER

16036-007

$16.68
