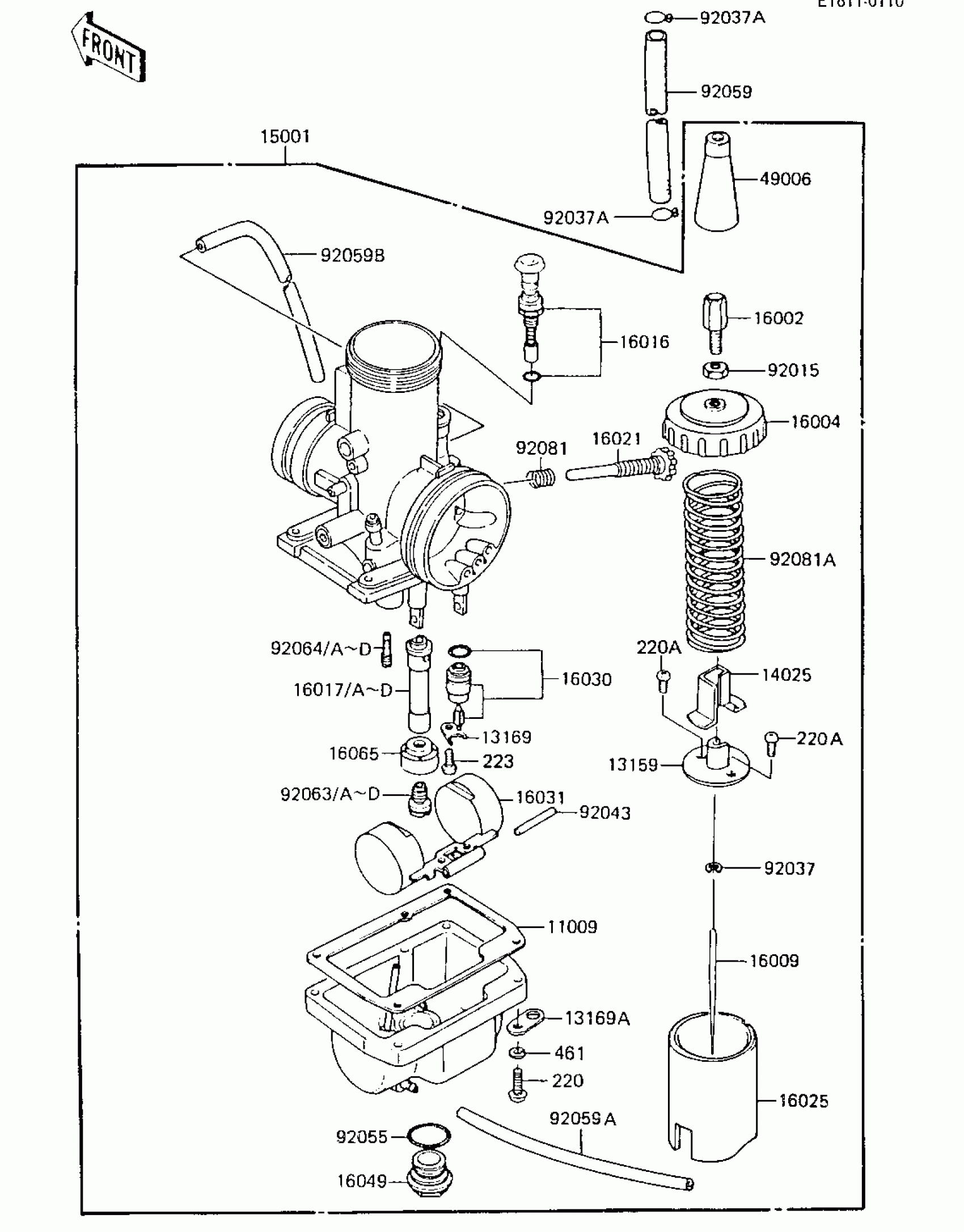

Kawasaki KX80 CARBURETOR ('85 KX80-E3) Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1178

Unavailable

13159

CONNECTOR,THROTTLE

13159-1010

Unavailable

13169

PLATE, LOCK

13169-1190

Unavailable

13169A

PLATE,TUBE CLAMP

13169-1226

Unavailable

14025

COVER,THROTTLE VALVE

14025-1494

Unavailable

15001

CARBURETOR-ASSY

15001-1108

$162.19

16002

ADJUSTER-CABLE

16002-017

Unavailable

16004

CAP-CHAMBER

16004-025

$33.92

16009

NEEDLE-JET,6EJ3

16009-1223

Unavailable

16016

PLUNGER ASSY,STARTER

16016-1013

Unavailable

16017

JET-NEEDLE,P-2

16017-1223

$25.07

16017A

JET-NEEDLE,P-6

16017-1224

$43.06

16017B

JET-NEEDLE,P-4

16017-1225

$46.67

16017C

JET-NEEDLE,P-0

16017-1226

$46.67

16017D

JET-NEEDLE,0-8

16017-1227

$41.47

16021

SCREW-THROTTLE STOP

16021-1047

Unavailable

16025

VALVE-THROTTLE,C.A 2.

16025-1110

$73.46

16030

FLOAT VALVE ASSY,2.5

16030-1013

Unavailable

16031

FLOAT

16031-1011

$61.49

16049

COVER,MAIN JET

16049-1003

$12.03

16065

HOLDER,MAIN JET RING

16065-1033

Unavailable

49006

BOOT,CABLE ADJUSTER

16036-007

$16.68

92015

NUT,ADJUST LOCK

16003-006

$5.84

92037

CLAMP,E-TYPE

16008-010

$8.95

92037A

CLAMP,TUBE

92037-072

$5.74

92043

PIN,FLOAT

16032-003

$5.95

92055

RING-O

92055-1076

Unavailable

92059

TUBE,5.3X10.5X150

92059-1129

$20.61

92059A

TUBE,3X5X250,BLACK

92059-1308

Unavailable

92059B

TUBE,3X5X250,BLACK

92059-1308

Unavailable

92063

JET-MAIN,#180

92063-020

$13.39

92063A

JET-MAIN,#190

92063-021

$13.39

92063B

JET-MAIN,#200

92063-022

$13.39

92063C

JET-MAIN,#210

92063-023

$13.39

92063D

JET-MAIN,#220

92063-024

$15.59

92064

JET-PILOT,#30

92064-022

$15.97

92064A

JET-PILOT NO 35

92064-023

$19.25

92064B

JET-PILOT NO 40

92064-024

$21.93

92064C

JET-PILOT,#25

92064-032

$18.08

92064D

JET-PILOT,#27.5

92064-1033

$15.97

92081

SPRING

92081-1417

$5.69

92081A

SPRING,THROTTLE VALVE

92081-1724

$14.39

220

SCREW PAN HEAD 4X16

220B0416

Unavailable

220A

SCREW-PAN-CROS,3X8

220C0308

$0.61

223

SCREW-PAN-WS-CROS

223B0408

Unavailable

461

WASHER SPRING 4MM

461F0400

Unavailable
