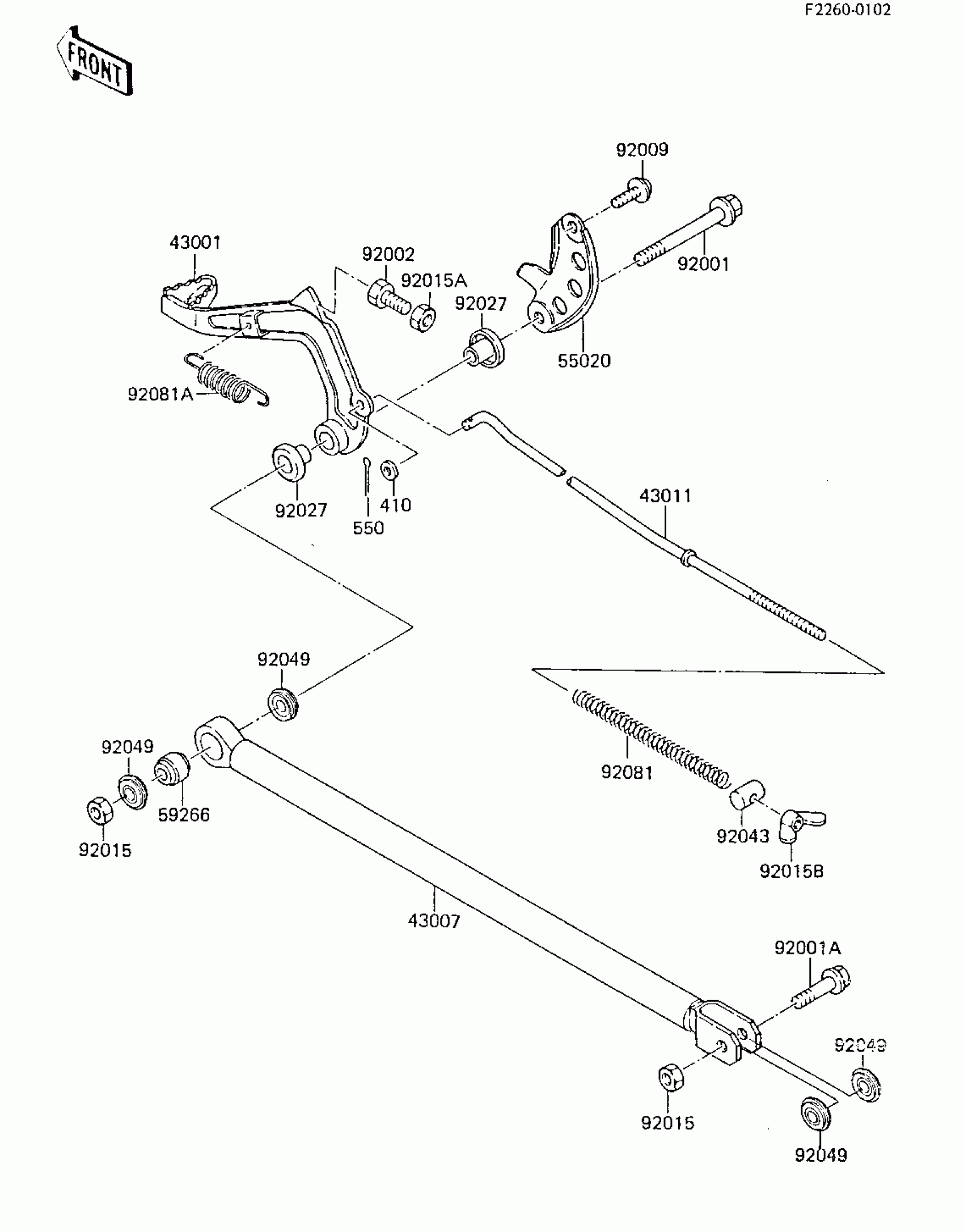

Kawasaki KX80 BRAKE PEDAL/TORQUE LINK ('85 KX80-E3) Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-1099

Unavailable

43007

ROD-TORQUE

43007-1109

Unavailable

43011

ROD-BRAKE

43011-1115

Unavailable

55020

GUARD,BRAKE PEDAL

55020-1162

Unavailable

59266

JOINT-BALL,BRAKE PANE

59266-1013

$40.14

92001

BOLT,8X69

92001-1410

Unavailable

92001A

BOLT

92001-1738

Unavailable

92002

BOLT,6X20

92002-1373

$3.92

92009

SCREW,6X10,WHITE

92009-1286

$3.43

92015

NUT,8MM

92015-1134

$7.98

92015A

NUT,6MM

92015-1391

$2.05

92015B

NUT,WING,6MM

92015-4004

$5.81

92027

COLLAR,BRAKE PEDAL

92027-1497

$12.73

92043

PIN,BRAKE ROD

92043-039

$5.06

92049

SEAL-OIL,TORQUE ROD

92049-1100

Unavailable

92081

SPRING,BRAKE ROD

92081-1688

$3.69

92081A

SPRING,RETURN

92081-1839

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

550

PIN COTTER 2.0X15

550D2015

Unavailable
