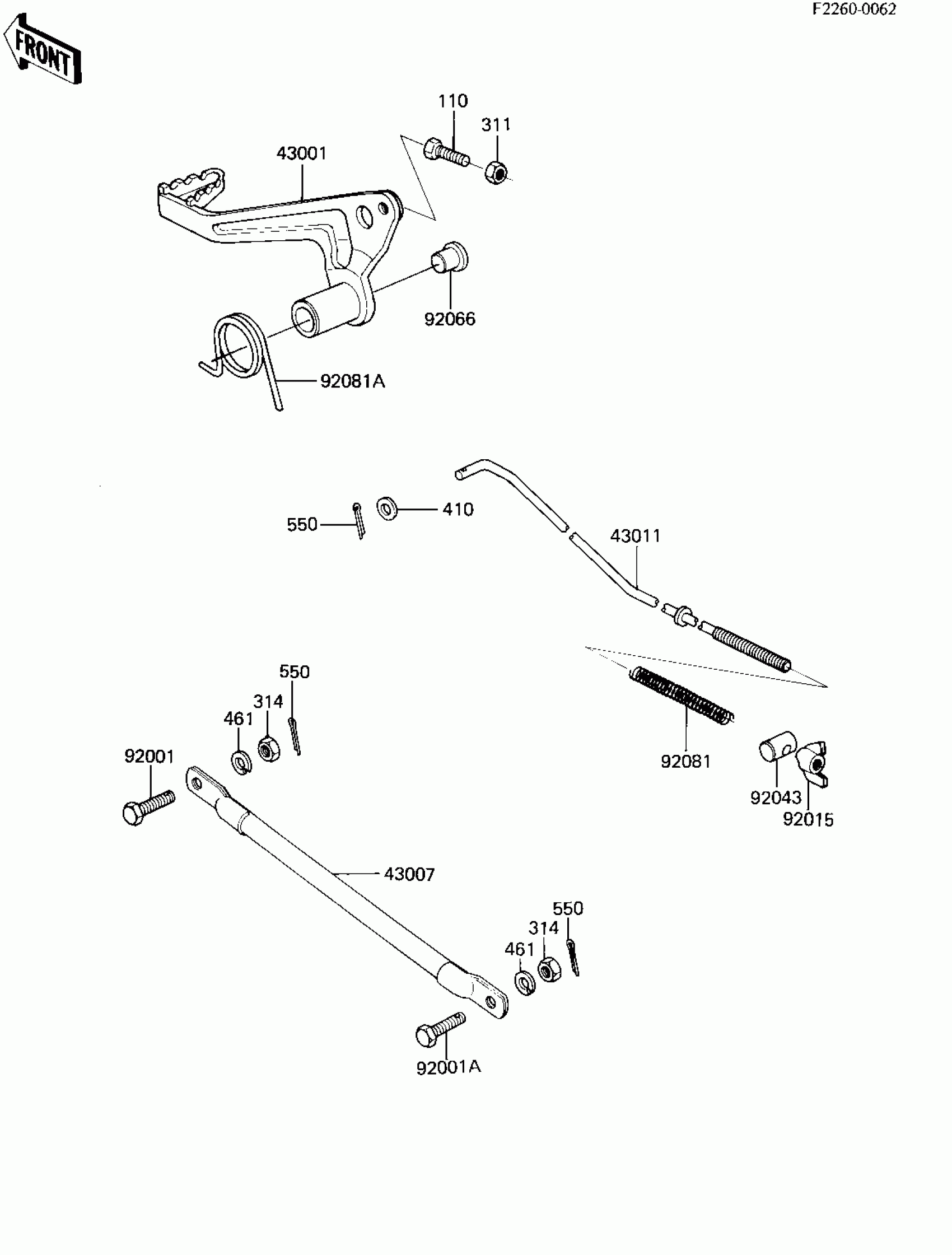

Kawasaki KX80 BRAKE PEDAL/TORQUE LINK ('82 KX80-C2) Diagram

Description

Price

43001

PEDAL,BRAKE

43001-1053

$109.19

43007

TORQUE LINK,RR BRAKE

43007-1024

$47.73

43011

ROD,BRAKE

43011-1028

Unavailable

92001

BOLT,10X25

92001-1450

Unavailable

92001A

BOLT,10X32

92003-003

$5.42

92015

NUT,WING,6MM

92015-4004

$5.81

92043

PIN,BRAKE ROD

92043-039

$5.06

92066

PLUG,BRAKE PEDAL

92066-1078

Unavailable

92081

SPRING,BRAKE ROD

43012-001

$3.69

92081A

SPRING,BRAKE PEDAL

92081-1290

$8.53

110

BOLT-UPSET

112G0618

Unavailable

311

NUT 6MM

311B0600

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

461

WASHER SPRING 10MM

461F1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
