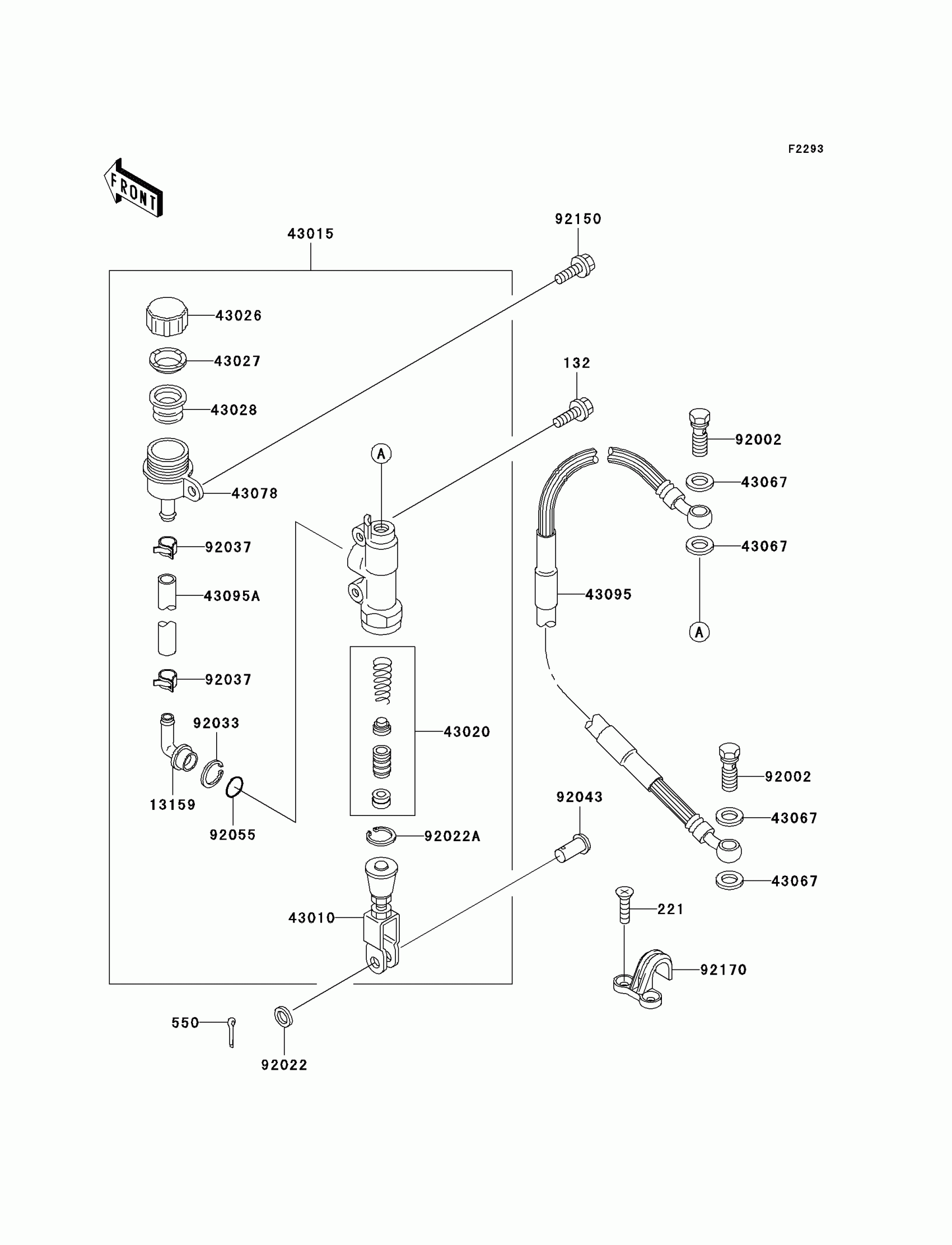

Kawasaki KX65 Rear Master Cylinder Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132G0614

Unavailable

221

SCREW-CSK-CROS,5X10

221B0510

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

13159

CONNECTOR

13159-1056

$11.16

43010

ROD-ASSY-BRAKE

43010-1076

$52.23

43015B

CYLINDER-ASSY-MASTER,RR

43015-1694

$222.19

43020

PISTON-COMP-BRAKE

43020-1094

$59.90

43026

CAP-BRAKE

43026-1058

$34.24

43027

PLATE-DIAPHRAGM

43027-1052

$3.88

43028

DIAPHRAGM

43028-1060

$16.34

43067

WASHER,10.5X15X1.5

43067-001

$1.81

43078

RESERVOIR

43078-1068

$28.80

43095B

HOSE-BRAKE,RR

43095-1228

$87.30

43095C

HOSE-BRAKE,RR MASTER CYLINDER

43095-1254

$35.42

92002

BOLT,OIL,L=23

92002-1888

$4.35

92022

WASHER,8.5X13X1

92022-1028

$3.12

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.94

92037

CLAMP

92037-1710

$7.86

92043

PIN

92043-0004

$8.85

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,6X14

92150-1340

$4.02

92170

CLAMP,HOSE

92170-1684

$5.84
