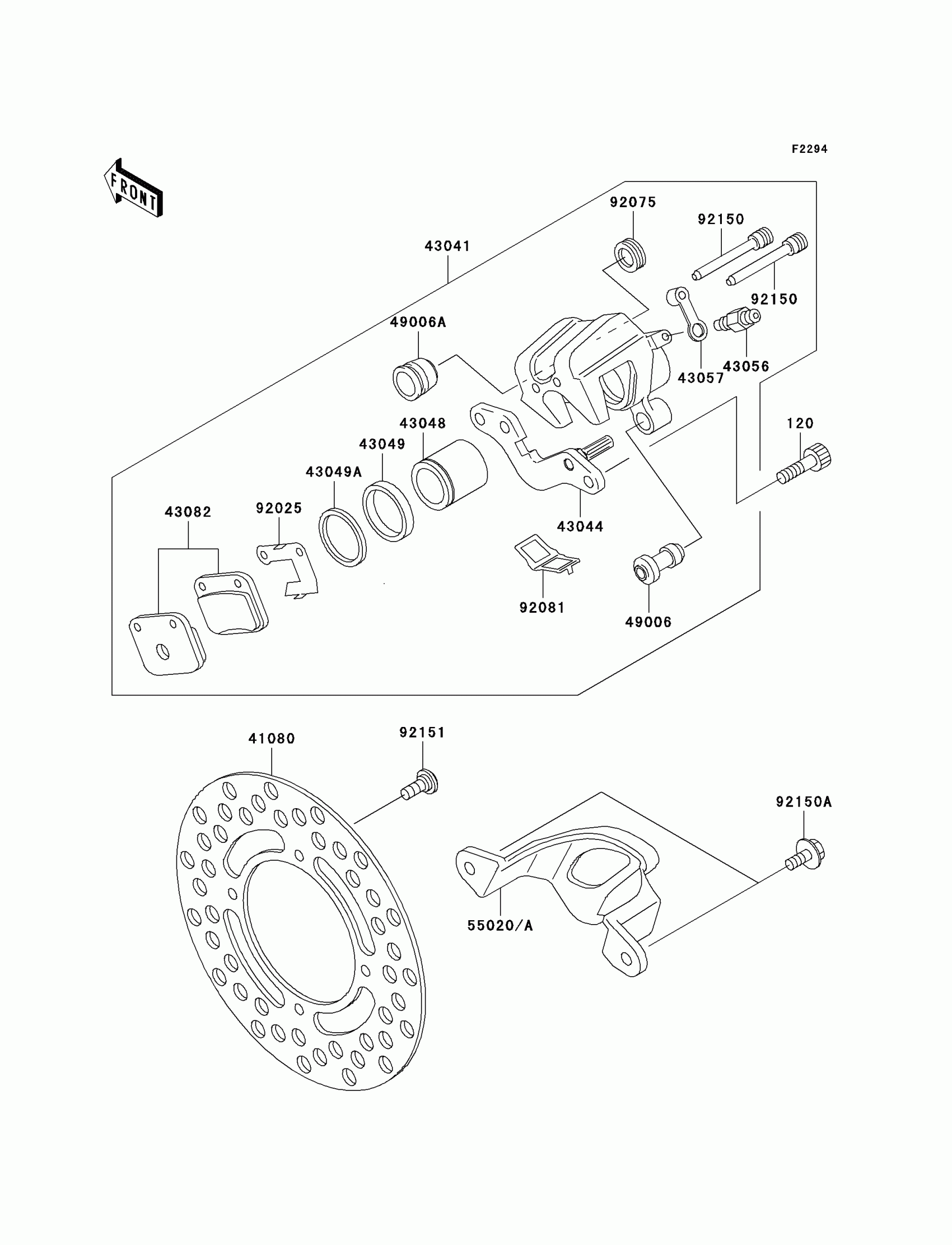

Kawasaki KX65 Rear Brake(KX65-A1-A4) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120P0816

Unavailable

41080

DISC

41080-1470

$189.75

43041

CALIPER-ASSY,RR

43041-1711

$222.61

43044

HOLDER-COMP-CALIPER,RR

43044-1076

$50.69

43048

PISTON-CALIPER

43048-1090

$68.10

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43082

PAD-ASSY-BRAKE

43082-1241

$61.21

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1089

$5.64

55020

GUARD,REAR CALIPER,WHITE

55020-1707-RZ

$23.95

92025

SHIM,PAD

92025-1817

$9.02

92075

DAMPER

92075-1414

$7.25

92081

SPRING,PAD

92081-1502

$8.31

92150

BOLT

92150-1144

$7.54

92150A

BOLT,6X14

92150-1340

$3.86

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15
