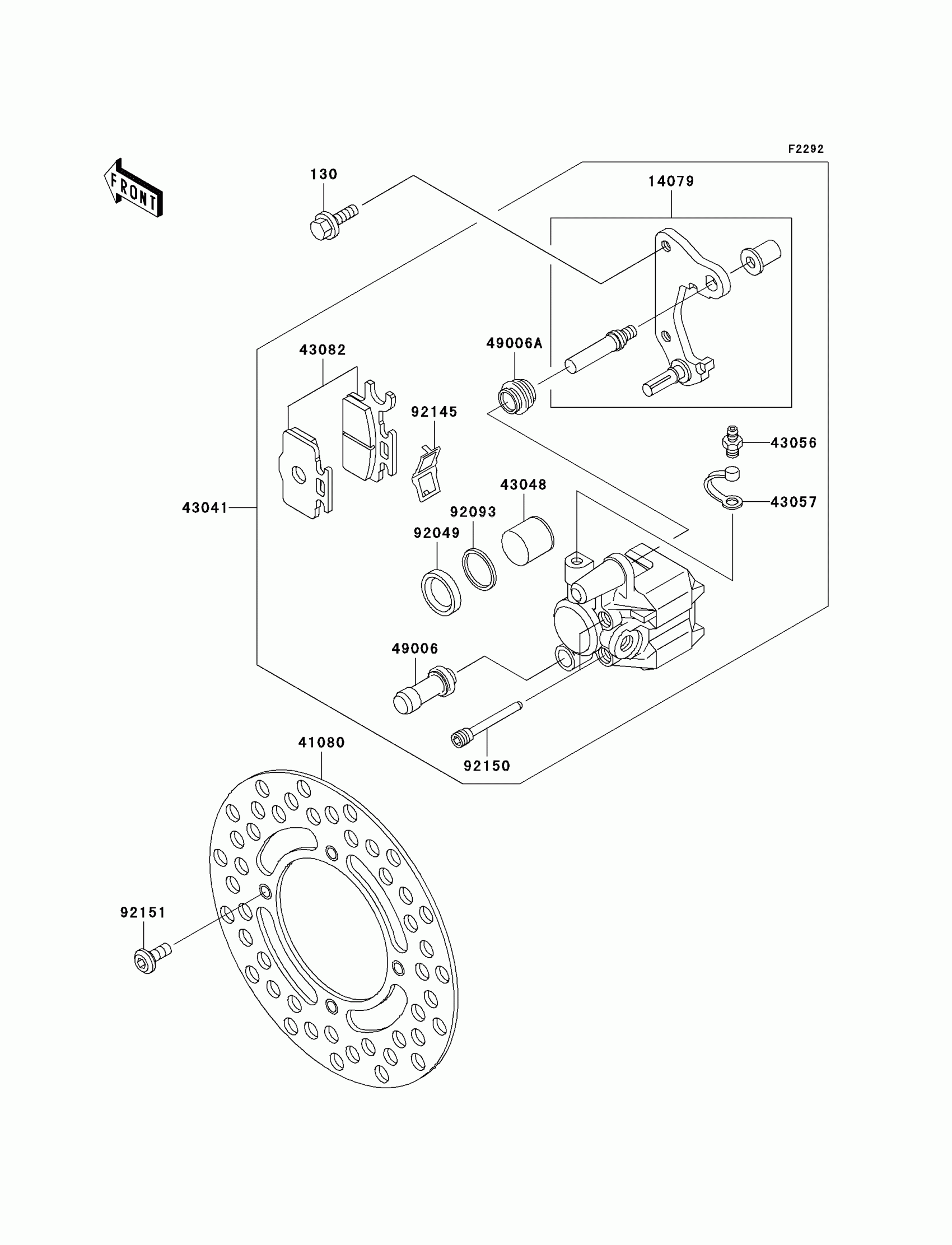

Kawasaki KX65 Front Brake(KX65-A1-A4) Diagram

Description

Price

130

BOLT-FLANGED

130P0840

Unavailable

14079

HOLDER-ASSY,FRONT CALIPER

14079-1130

$64.88

41080

DISC

41080-1470

$189.75

43041

CALIPER-ASSY,FR

43041-1710

$222.61

43048

PISTON-CALIPER

43048-1089

$52.23

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43082

PAD-ASSY-BRAKE

43082-1242

$45.06

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92049

SEAL-OIL,PISTON

92049-1331

$9.02

92093

SEAL,PISTON

92093-1272

$14.67

92145

SPRING,PAD

92145-1269

$13.42

92150

BOLT

92150-1144

$7.54

92151

BOLT,DISC PLATE,6MM

92151-1799

$3.15
