Description

Price

130

BOLT-FLANGED

130P0520

Unavailable

13086

WHEEL-CLUTCH

13086-1002

$45.84

13087

HUB-CLUTCH

13087-1051

$65.87

13088

PLATE-FRICTION

13088-1010

$10.86

13089

PLATE-CLUTCH

13089-1087

$10.14

13091

HOLDER,CLUTCH SPRING

13091-1115

$17.20

13091A

HOLDER,CLUTCH PUSHER

13091-1133

$11.12

13095

HOUSING-COMP-CLUTCH

13095-1042

$273.67

13114

PUSHER-CLUTCH

13114-1055

$19.54

13236

LEVER-COMP,RELEASE

13236-1338

$30.64

92002

BOLT,10X30

92002-1697

$5.71

92022

WASHER,17.3X28X1

92022-255

$6.82

92028

BUSHING

92028-1967

$11.19

92045

BEARING-BALL,627

92045-1236

$18.51

92081

SPRING,CLUTCH

92081-1175

$4.88

92200

WASHER,7X12.5X0.8

92200-1197

$3.14

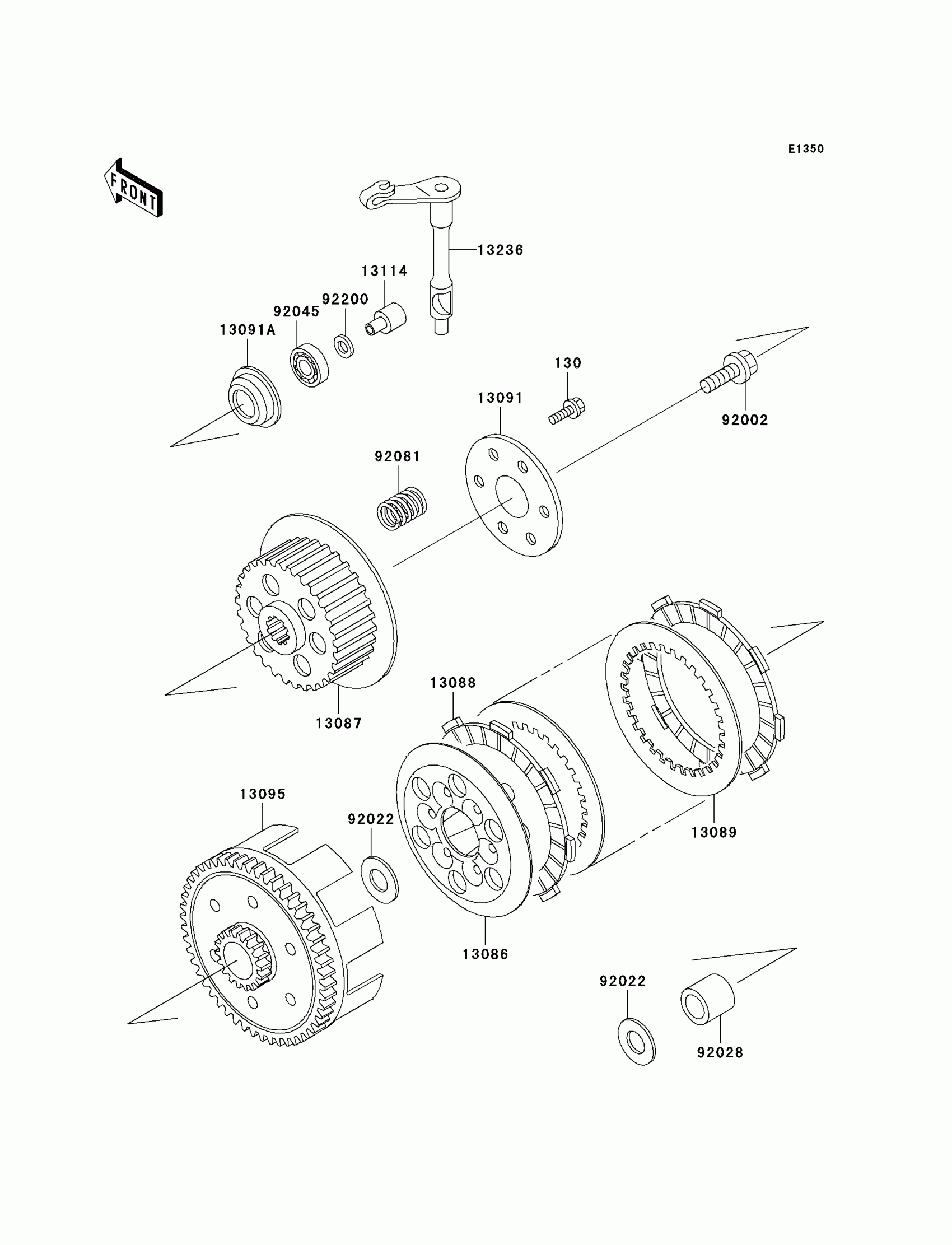

Kawasaki KX65 Clutch Diagram

BOLT-FLANGED
